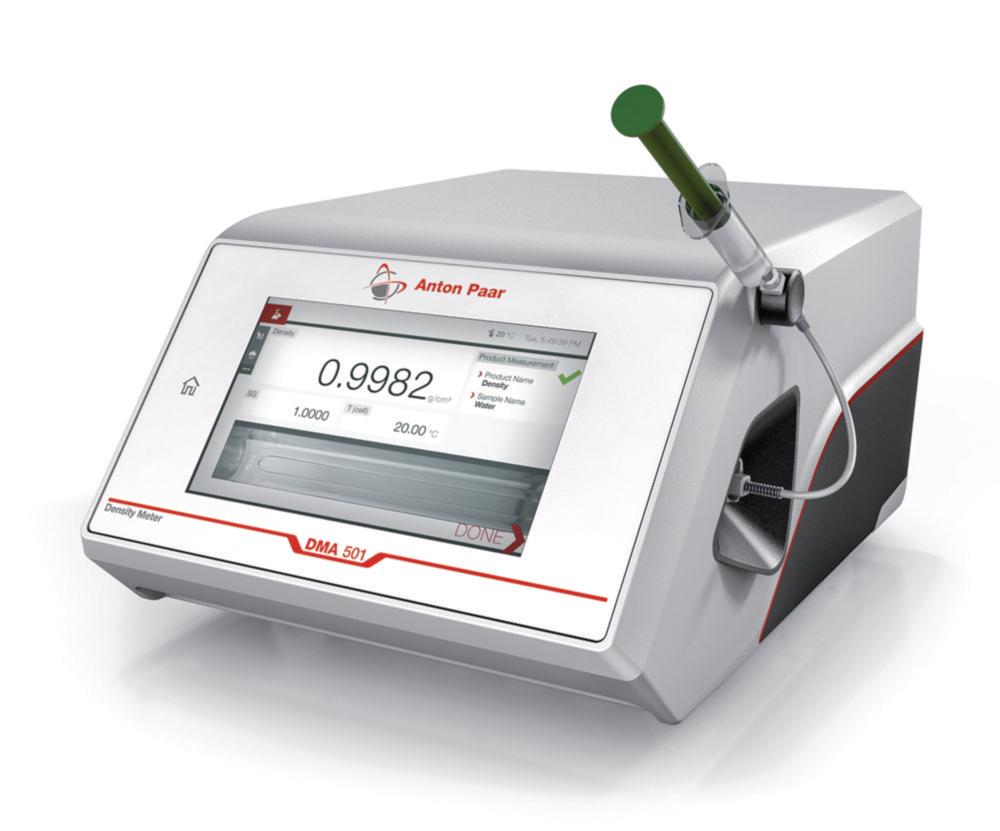

Representative image only
Anton Paar Digital Laboratory Density Meter DMA 501 – Measuring Range: Density 0 g/cm³ to 3 g/cm³, Pressure 0–10 bar, Temperature 15–40°C
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.313 796Manufacturer #: 186376
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Anton Paar Digital Laboratory Density Meter DMA 501 is a compact and precise instrument designed for rapid and accurate density measurements in various laboratory settings. Utilizing the oscillating U-tube principle, it delivers reliable results even with challenging samples such as pastes, inhomogeneous, or sedimenting substances.
Key Features:
- Brand: Anton Paar
- Measuring Range: Density: 0 g/cm³ to 3 g/cm³; Pressure: 0 to 10 bar; Temperature: 15°C to 40°C
- Accuracy: ±0.001 g/cm³
- Sample Volume: Approximately 1 mL
- Integrated Technologies: U-View™ and FillingCheck™ for error detection and visualization
- Connectivity: Ethernet, USB, and RS-232 interfaces
- Display: 7-inch TFT touchscreen
- Applications: Suitable for chemicals, pharmaceuticals, cosmetics, and food industries
This density meter is an essential tool for laboratories requiring precise, efficient, and user-friendly density measurement solutions.
Product Specifications
- HS Code #90278930
- Accuracy±0.001 g/cm³
- Accuracy0.001 g/cm³
- Depth375 mm
- Dimensions (WxDxH)265 x 375 x 180 mm
- Power supply frequency47-63 Hz
- Height180 mm
- Interfaces1 x Ethernet, 3 x USB, 1 x RS232
- Max. measured value3 g/cm³
- Max. temperature sample40 °C
- Max. voltage240 V·AC
- Measured range0 ... 3 g/cm³
- Min. measured value0 g/cm³
- Min. temperature sample15 °C
- Min. voltage100 V·AC
- Power supply100 ... 240 V·AC, 47-63 Hz
- Resolution0.0001 g/cm³
- Temperature sample15 ... 40 °C
- TypeDMA 501
- Type of auxiliary energyMains connection
- Warranty3 years
- Weight13.5 kg
- Width265 mm
- Manufacturer Article Number186376
Downloads
- Anton Paar DMA 501_1001 Compact Digital Density Meter BrochureDownload
