ESCO CelCulture CO₂ Incubator CCL-170B-8-NF, 170 L, IR Sensor, CO₂ Control, Stainless Steel Chamber, 50/60 Hz

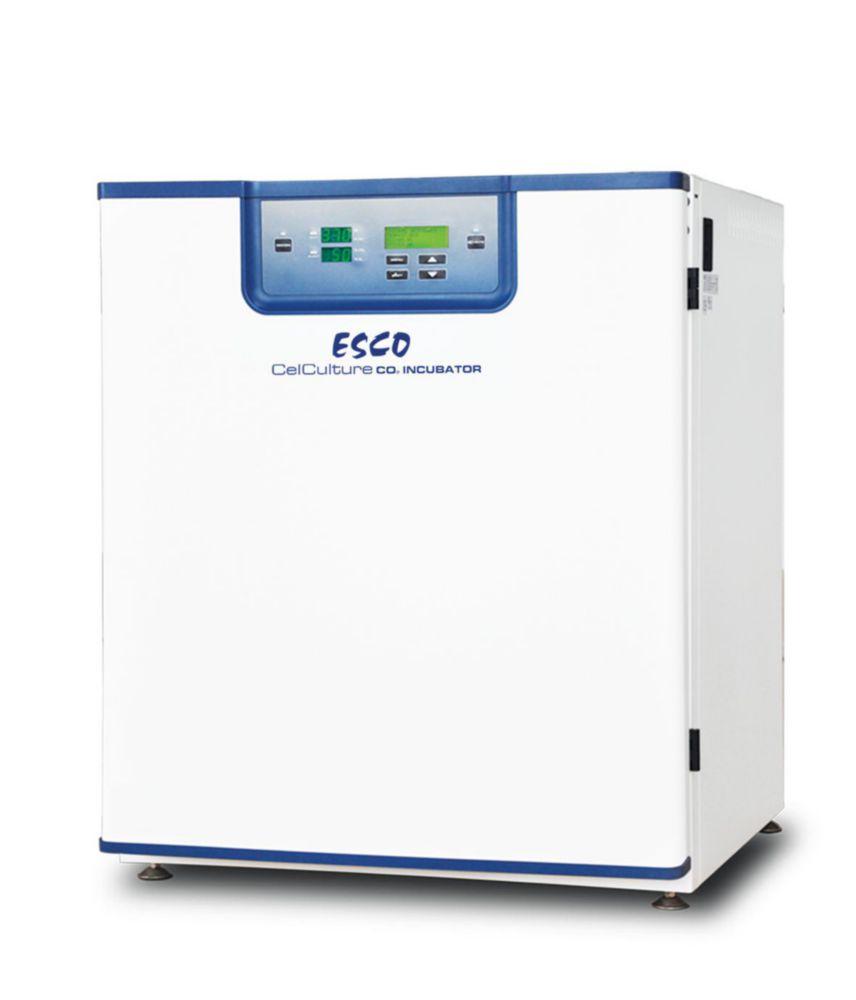

Representative image only

ESCO CelCulture CO₂ Incubator CCL-170B-8-NF, 170 L, IR Sensor, CO₂ Control, Stainless Steel Chamber, 50/60 Hz

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.287 240Manufacturer #: 2170068
Estimated shipping time:Contact us via live chat or via contact us page

$25,092.14

See the available (1) variant product
Product overview

The ESCO CelCulture CO₂ Incubator CCL-170B-8-NF is a 170-liter capacity incubator designed for precise CO₂ control in laboratory environments. Equipped with an infrared (IR) CO₂ sensor and a stainless steel chamber, it ensures accurate gas monitoring and a contamination-resistant interior. The incubator operates without a ULPA filter, making it suitable for applications where such filtration is not required.

Key Features:

  • Brand: ESCO
  • Model: CCL-170B-8-NF
  • Capacity: 170 liters
  • CO₂ Sensor: Infrared (IR) sensor for precise CO₂ monitoring
  • Chamber Material: Stainless steel interior for durability and ease of cleaning
  • Temperature Range: Ambient +5°C to 60°C
  • Humidity Control: Relative humidity maintained between 85% to 90%
  • Power Supply: 220–240 V AC, 50/60 Hz
  • Dimensions (W x D x H): 660 x 725 x 900 mm
  • Weight: 120 kg

This incubator is ideal for laboratories requiring reliable CO₂ control without the need for ULPA filtration, offering a balance between performance and cost-effectiveness.

Product Specifications
  • HS Code #84198998
  • CO₂ range0 ... 19.5 %
  • Depth int.530 mm
  • Ext. dim. (WxDxH)660 x 725 x 900 mm
  • Ext. depth725 mm
  • Ext. height900 mm
  • Ext. width660 mm
  • Power supply frequency50/60 Hz
  • Height int.635 mm
  • Int. Dim. (WxDxH)505 x 530 x 635 mm
  • Int. width505 mm
  • Material interiorStainless steel
  • Max. CO₂19.5 %
  • Max. no. of inserts7
  • Max. relative humidity90 %
  • Max. temperature60 °C
  • Max. voltage240 V·AC
  • Min. CO₂0 %
  • Min. relative humidity85 %
  • Min. temperature+5 °C
  • Min. voltage220 V
  • Nominal capacity170 l
  • Power supply220 ... 240 V·AC, 50/60 Hz
  • Rated capacity2.64 kW
  • Relative humidity85 ... 90 %
  • TemperatureRT
  • TemperatureRT+5 ... 60 °C
  • TypeCCL-170B-8-NF
  • Type of auxiliary energyMains connection
  • Weight120 kg
