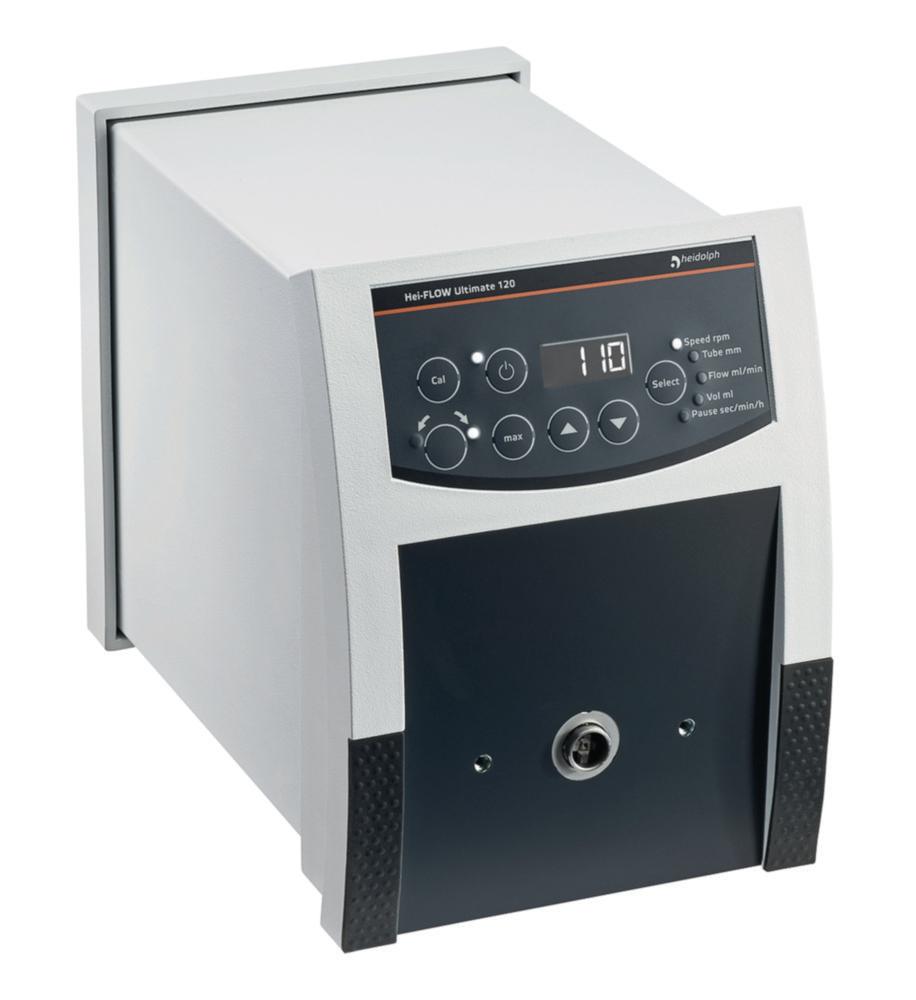

Representative image only
Heidolph Peristaltic Pump Hei-FLOW Ultimate 120 Speed 4–120 rpm, w/o Head
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.829 244Manufacturer #: 523-52010-00
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Heidolph Hei-FLOW Ultimate 120 is a high-precision peristaltic pump offering speed control from 4 to 120 rpm, designed to meet the rigorous demands of laboratory fluid handling. This version is supplied without the pump head, allowing for flexible head configuration based on your application.
Key Features:
- Brand: Heidolph
- Model: Hei-FLOW Ultimate 120
- Speed Range: 4 – 120 rpm
- Design: Modular – head sold separately
- Application: Precise and consistent fluid transfer
- Interface: Digital control panel for intuitive operation
Ideal for sensitive applications requiring superior dosing accuracy, the Heidolph Ultimate 120 ensures reliability, efficiency, and flexibility in laboratory workflows.
Product Specifications
- HS Code #84136080
- Accuracy speed Number±0.5 %
- Accuracy speed Number0.5 %
- Depth256 mm
- Dimensions (WxDxH)166 x 256 x 225 mm
- Flow rate0.005 ... 813 ml/min
- Power supply frequency50/60 Hz
- Height225 mm
- IP codeIP 54
- Max. speed120 1/min
- Max. voltage240 V
- Min. speed5 1/min
- Min. voltage110 V
- Plug typeEU
- Power supply110 ... 240 V, 50/60 Hz
- Rated capacity100 W
- Speed5 ... 120 1/min
- TypeHei-FLOW Ultimate 120
- Type of auxiliary energyMains connection
- Weight7.7 kg
- Width166 mm
Downloads
- Pump drive PD 5201 Data SheetDownload
