Representative image only

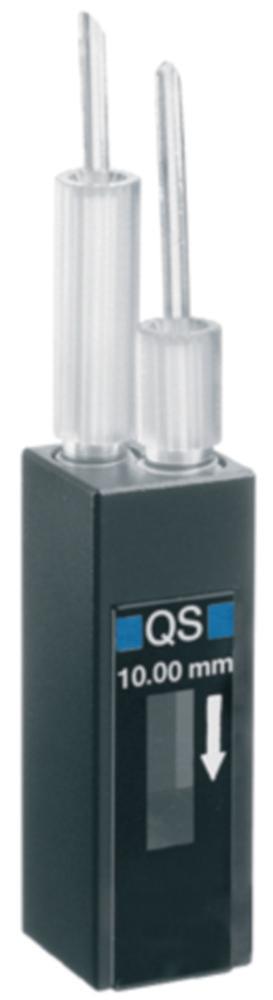

Hellma Flow-through cuvette 10 mm, 8.5 mm CH quartz glass SUPRASIL with 2 screw connections M 6 x 1 and FEP tubes, 390 µl
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.144 666Manufacturer #: 1767008510-40
Estimated shipping time:Contact us via live chat or via contact us page
See the available (19) variant productsProduct overview
The Hellma Flow-through cuvette features a 10 mm path length and 8.5 mm chamber height, crafted from high-quality SUPRASIL quartz glass for exceptional optical clarity and chemical resistance. It includes two M 6 x 1 screw connections and FEP tubes, offering a reliable 390 µl volume capacity. Designed for precise spectrophotometric measurements, this cuvette ensures accurate flow-through analysis in demanding laboratory environments.
Key Features:
- Brand: Hellma
- Material: SUPRASIL quartz glass for high optical precision and durability
- Path Length: 10 mm
- Chamber Height: 8.5 mm
- Volume: 390 µl
- Connections: 2 screw connections (M 6 x 1) with FEP tubes
- Application: Ideal for flow-through spectrophotometric analysis
- Packaging: Sold individually
This cuvette is a dependable choice for researchers requiring precision and performance in flow-through spectroscopy.
Product Specifications
- HS Code #90279000
- Typesemi-micro
- Description2 screw terminals *
- Internal width mm11 x 3.5
- External dimensions (W x D x H) mm12.5 x 12.5 x 35
- MaterialQS
- Path length mm10
- Capacity µl390
- Centre height mm8.5
- Manufacturer Article Number1767008510-40
Downloads
- Hellma Analytics CellsDownload
Hellma Flow-through cuvette 10 mm, 8.5 mm CH quartz glass SUPRASIL with 2 screw connections M 6 x 1 and FEP tubes, 390 µl
$1,175.54
Variant products
Products related to this item (19)
product | Mfr # | Part # | Product name | Type | Capacity
µl | Price | Availability | |
176-15-10-40 | 6.051 845 | Hellma Half-micro-Flow-through Cuvette 176.000-QS 10mm Thickness, 15mm Centre Height Quartz Glass SUPRASIL | semi-micro | 450 | $1,124.52 | |||
1767005-15-40 | 6.059 697 | Hellma Flow-through Cuvette 5mm, 15mm Centre Height, Quartz Glass SUPRASIL, with 2 Screw Connections M 6 x 1 and FEP-Tubes, 195 µl | semi-micro | 195 | $1,465.99 | |||
176-50-40 | 6.080 156 | Hellma Half-micro-Flow-through Cuvette 176.000-QS 50mm Thickness, 15mm Centre Height Quartz Glass SUPRASIL | semi-micro | 2250 | $2,349.12 | |||
170700-0.2-40 | 6.206 587 | Hellma Flow-through Cuvette 170.700-QS 0.2 mm thickness, 124 µl | micro | 12 | $1,931.11 | |||
176-50-85-40 | 6.242 811 | Hellma Flow-through Cuvette 176.000-QS, 50mm C=8.5mm, Quartz Glass SUPRASIL | semi-micro | 2250 | $2,349.12 | |||
170700-0.1-40 | 9.144 660 | Hellma Flow-through Cuvettes 0.1mm Silica, SUPRASIL, 6.2µl | micro | 6 | $1,931.11 | |||
170700-0.5-40 | 9.144 662 | Hellma Flow-through Cuvette 0.5 mm Thickness Silica, SUPRASIL, 31 µl | micro | 31 | $1,931.11 | |||
170-700-2-40 | 9.144 663 | Hellma Flow-through Cuvette, 2.0 mm SUPRASIL Silica, 124 µl | micro | 124 | $1,432.63 | |||
170-700-1-40 | 9.144 664 | Hellma Flow-through Cuvettes 1.0 mm Silica, SUPRASIL, 62 µl | micro | 62 | $1,432.63 | |||
1767001510-40 | 9.144 667 | Hellma Flow-through Cuvette 10 mm, 15 mm CH Quartz Glass SUPRASIL with 2 Screw Connections M 6 x 1 and FEP Tubes, 390 µl | semi-micro | 390 | $1,175.54 | |||
137-10-40 | 6.073 105 | Hellma Flow-through Cuvette 137-QS, 10mm Thickness Quartz Glass SUPRASIL, 2600 µl | macro | 2600 | $965.55 | |||
137-1-40 | 7.920 095 | Hellma Flow-through Cuvette 137-QS, 1mm Coat Thickness Quartz Glass SUPRASIL | macro | 260 | $763.42 | |||
130-10-40 | 6.056 433 | Hellma Flow-through Cuvette 130-QS, 10mm Thickness Quartz Glass SUPRASIL, 3200 µl, OD 45x12.5x12.5 mm | macro | 3200 | $790.89 | |||
170-000-2-40 | 6.201 456 | Hellma Flow-through Cuvette 170-QS, 2mm Thickness Quartz Glass SUPRASIL, Macro | micro | 240 | $1,322.73 | |||
170-000-1-40 | 6.052 902 | Hellma Flow-through Cuvette 170-QS, 1 mm Path Length Quartz Glass SUPRASIL, Macro | micro | 120 | $1,322.73 | |||
1787108510-40 | 7.601 951 | Hellma Flow-through Cuvette 178.710-QS, 10mm Thickness CH=8.5mm, Quartz Glass SUPRASIL, 80 µl, 2 Screw Connections M6x1 and FEP Tubes | micro | 80 | $1,261.89 | |||
1767001550-40 | 6.231 336 | Hellma Flow-through Cuvette LP:50 mm, CH:15 mm Quartz Glass SUPRASIL, 1950 µl with 2 Screw Connections | semi-micro | 1950 | $2,963.39 | |||
1787118510-20 | 6.320 154 | Hellma Doorstroomcel 178.711-OS, 10 mm Laagdikte HxBxD: 35x12.5x12.5 mm | compact | 30 | $1,053.87 | |||
178712-10-20 | 9.144 672 | Hellma Flow-through Cuvettes 8.5mm Centre Height, Internal Width 10mm, 18µl with Screw Connections and FEP Tubes | compact | 18 | $1,053.87 |
