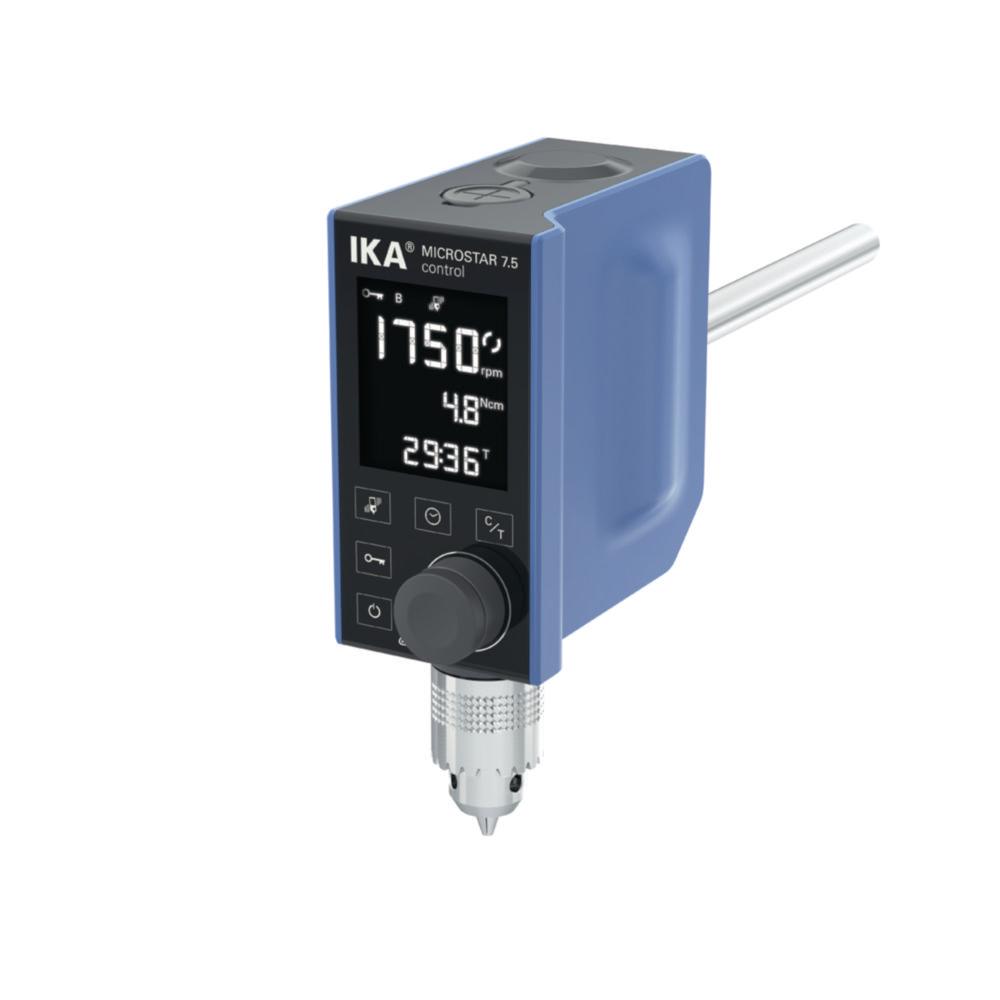

IKA Electronic Overhead Stirrer Microstar 7.5 Control
Representative image only

IKA Electronic Overhead Stirrer Microstar 7.5 Control

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.310 242Manufacturer #: 0025001984
Estimated shipping time:Contact us via live chat or via contact us page

$3,233.19

See the available (2) variant products
Product overview

The IKA Electronic Overhead Stirrer Microstar 7.5 Control is a precision stirring device designed for laboratory applications requiring consistent and reliable performance. With a stirring capacity of up to 7.5 liters, it is ideal for handling viscous and high-density samples. Featuring a user-friendly control panel, the stirrer ensures accurate speed adjustments and a smooth, uniform mixing process. This overhead stirrer is perfect for laboratories in need of a durable and efficient stirring solution.

Key Features:

  • Brand: IKA
  • Stirring Capacity: Up to 7.5 liters for handling various sample volumes
  • Control: Electronic control panel for precise speed adjustments
  • Application: Ideal for laboratories mixing viscous and high-density samples
  • Design: Ergonomic and compact for efficient use of lab space
  • Display: Hardened glass for maximum visibility and chemical resistance
  • Safety: Vibration sensors detect deviations and automatically stop the process
  • Connectivity: USB and Bluetooth interfaces for documentation and firmware updates
  • Software Integration: Easy connection to labworldsoft®
  • Temperature Measurement: PT1000 sensor with direct medium reading
  • Speed Control: Continuously adjustable with microprocessor-controlled governor for constant speed despite viscosity changes
  • Additional Features: Key lock function, integrated timer, chemical-resistant housing
  • Warranty: 10 years

Scope of supply: Overhead stirrer including temperature sensor PT1000

The IKA Microstar 7.5 Control offers precision, safety, and advanced features, making it a reliable choice for specialized stirring tasks in demanding laboratory environments.

Product Specifications
  • HS Code #84798200
  • Clamping range0.5 ... 8 mm
  • Depth136 mm
  • Dimensions (WxDxH)60 x 136 x 173 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height173 mm
  • IP codeIP 54
  • Max. clamping width8 mm
  • Max. speed2000 1/min
  • Max. stirring capacity5 l
  • Max. temperature350 °C
  • Max. torque7.5 Ncm
  • Max. Viscosity4000 mPa·s
  • Max. voltage240 V
  • Min. clamping width0.5 mm
  • Min. speed0 1/min
  • Min. temperature-10 °C
  • Min. voltage100 V
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity32 W
  • Speed0 ... 2,000 1/min
  • Temperature-10 ... 350 °C
  • TypeMICROSTAR 7.5 control
  • Type of auxiliary energyMains connection
  • Weight1.18 kg
  • Width60 mm
  • With connection ext. temperature sensorYes
  • With timerYes
Downloads
  • IKA Micro-Ministar Overhead Stirrer BrochureDownload
  • IKA Microstar 7.5 Control Data SheetDownload
  • IKA Microstar 15 Control Data SheetDownload
  • IKA Microstar 30 Control Data SheetDownload
  • IKA Microstar Control Instruction ManualDownload
