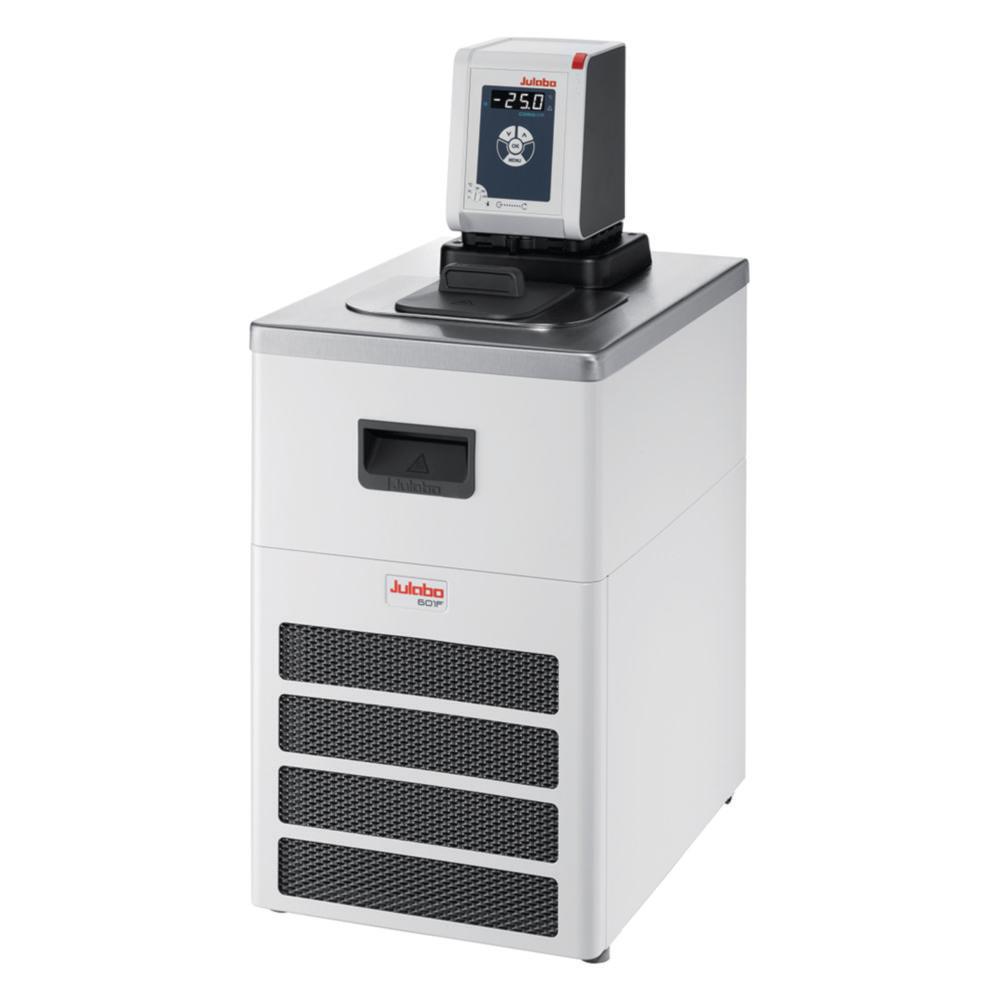

Julabo Refrigerated/Heating Circulator CORIO CP-601F
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.670 685Manufacturer #: 9013705
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Julabo Refrigerated/Heating Circulator CORIO CP-601F is engineered for precise temperature control in laboratory applications. With a working temperature range of -35°C to +200°C and a stability of ±0.03°C, it ensures consistent performance. The unit features a powerful 2 kW heating capacity and efficient cooling capabilities, making it ideal for both internal and external applications.
Key Features:
- Brand: Julabo
- Temperature Range: -35°C to +200°C
- Temperature Stability: ±0.03°C
- Heating Capacity: 2 kW
- Cooling Capacity: 0.6 kW at 20°C
- Pump Capacity: 8–27 l/min; 0.1–0.7 bar
- Bath Volume: 8–10 liters
- Interfaces: USB and RS232
- Dimensions (W × L × H): 33 × 47 × 74 cm
- Refrigerant: R449A
This circulator is an essential tool for laboratories requiring reliable and precise temperature control for various research and analytical processes.
Product Specifications
- HS Code #84198998
- Bath tank depth mm200
- Bath opening mm220 x 150
- Cooling capacity kW at 20/0/-20°C0.6 / 0.44 / 0.16
- Flow rate L / min.8 ... 27
- Temp. range °C-35 ... 200
- Delivery pressure, max. bar0.7
- Capacity of the bath litres8 ... 10
- Ext. dim. (WxDxH)330 x 470 x 740 mm
- Ext. depth470 mm
- Ext. height740 mm
- Ext. width330 mm
- Heating capacity2 kW
- IP codeIP 21
- Plug typeEU
- Power supply200 ... 230 V, 50 ... 60 Hz
- Temperature stability±0,03 °C
- TypeCP-601F
- Type of auxiliary energyMains connection
