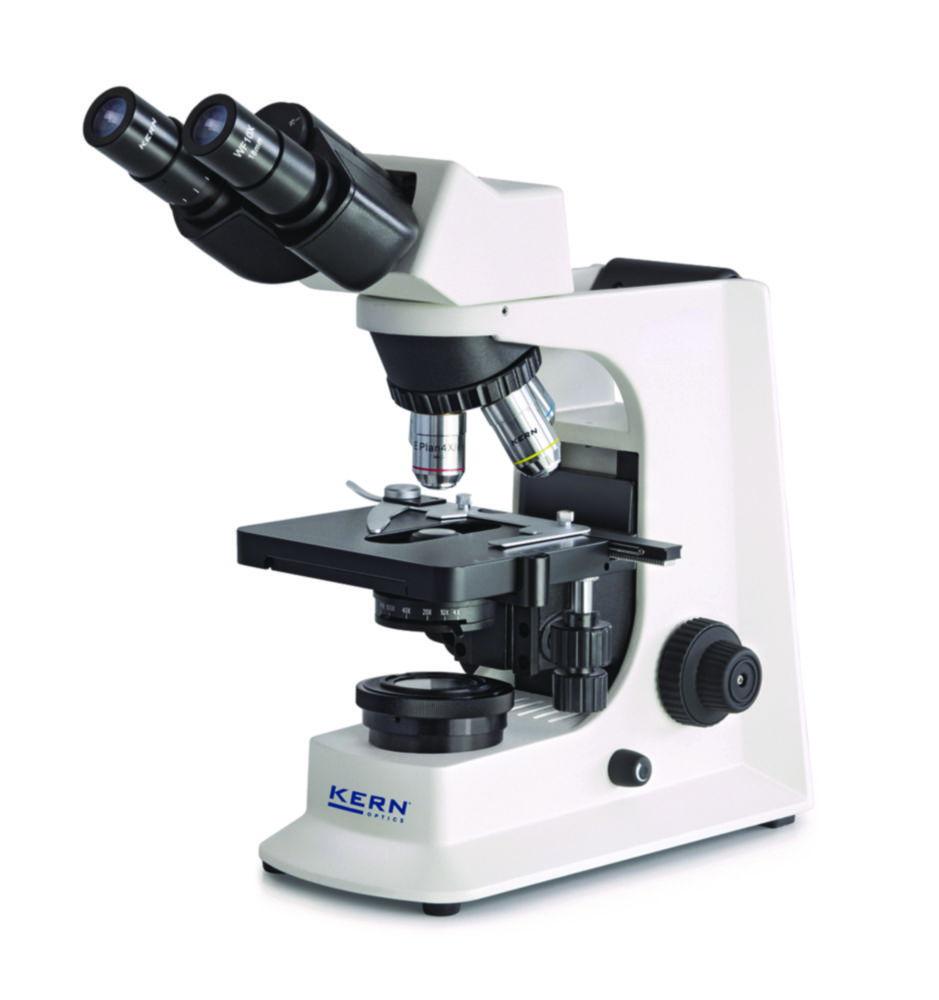

Kern Compound Microscope OBL 127 – 4x/10x/40x/100x, WF10x20 Eyepieces, LED Illumination

The Kern OBL 127 Compound Microscope is a professional-grade laboratory microscope designed for routine and advanced research applications. It features an infinity optical system and a fixed, pre-centred Köhler illumination setup for high-contrast, detailed imaging. The microscope includes a quadruple objective turret with 4x, 10x, 40x, and 100x (oil immersion) magnifications and WF10x/20mm widefield eyepieces. The 30° inclined, 360° rotatable binocular tube ensures ergonomic viewing, while coaxial coarse and fine focusing provides precision control. Lighting is provided via either a 3W LED or 20W halogen source, with a lightfield diaphragm and ABBE 1.25 N.A. condenser with aperture diaphragm and Koehler-capability, delivering optimal image brightness and clarity.

Key Features:

• Brand: Kern
• Model: OBL 127
• Optical System: Infinity optical system
• Magnification: Objectives 4x, 10x, 40x, 100x (oil immersion)
• Eyepieces: WF10x/20mm (widefield)
• Tube: 30° inclined, 360° rotatable
• Focusing: Coaxial coarse and fine focusing
• Illumination: 3W LED or 20W halogen with adjustable intensity
• Condenser: ABBE 1.25 N.A. with aperture diaphragm, focusable and Köhler-capable
• Diopter Adjustment: One-sided
• Stage: Double-layer mechanical stage with coaxial controls
• Application: Ideal for medical, biological, and educational laboratory work

Scope of Supply:

• Light microscope
• Dust cover
• Eye cups
• Instruction manual

Built for optical precision, ergonomic comfort, and dependable performance, the Kern OBL 127 is a reliable and flexible laboratory assistant for a wide range of microscopy tasks.
