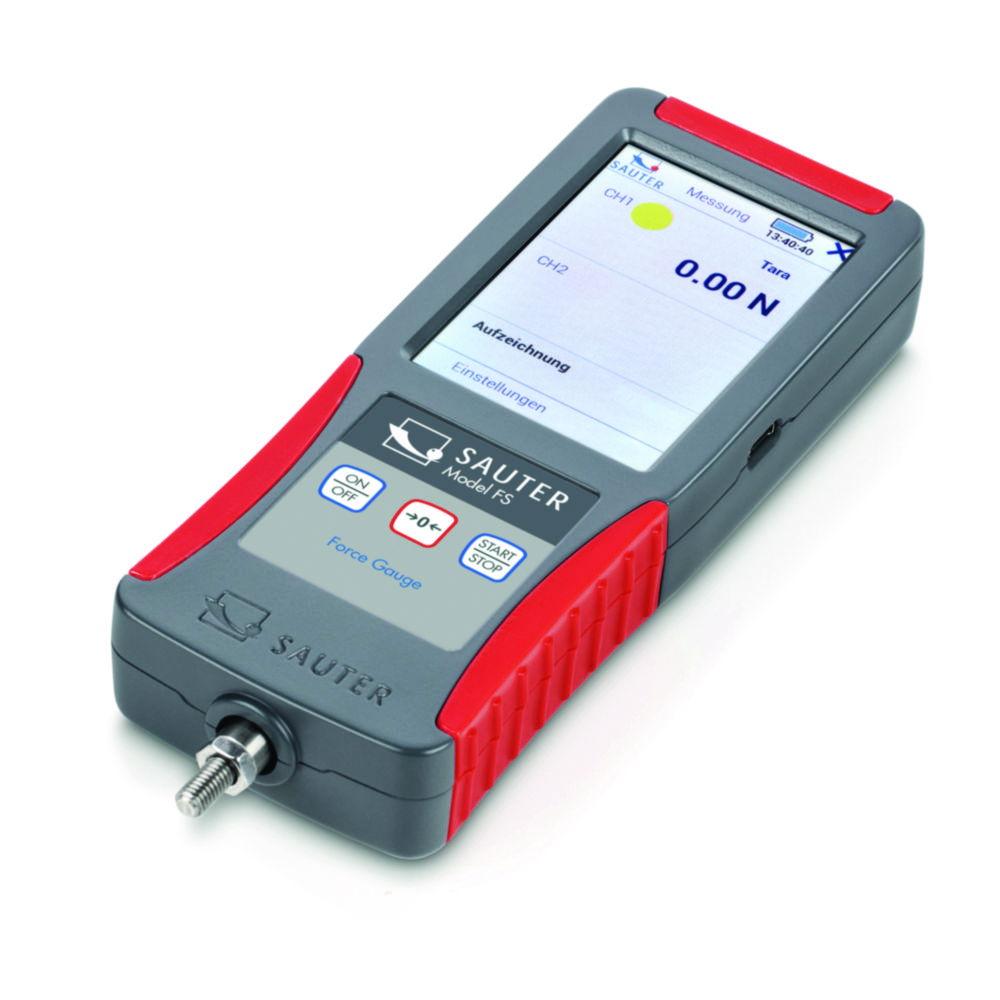

Representative image only
Kern Electric Force Gauge, Maximum 500 N, d=0.1 N
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.691 194Manufacturer #: FS 4-500
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Kern Electric Force Gauge, Maximum 500 N, d=0.1 N is designed for tensile and compressive force measurement with an integrated measuring cell. When an external measuring channel is used, the internal load cell is deactivated while an external load cell is connected, supporting use with 4-wire and 6-wire sensors with strain gauges.
Key Features:
- Brand: Kern
- Product Type: Electric force gauge
- Maximum Measuring Range: 500 N
- Readability: d=0.1 N
- Measurement Type: Tensile and compressive force measurement
- Measuring Cell: Integrated measuring cell with external measuring channel capability
- Sensor Compatibility: Suitable for 4-wire and 6-wire sensors with strain gauges
- Display: 3.5" touchscreen
- Channels: Simultaneous measurement on up to four channels
- Adjustment: Two-point adjustment with weights or numerical adjustment possible
- Sensor Data: External sensor data is stored directly in the connector
- Interface: USB interface for programming, data transfer, and power supply
- Memory: Integrated SD card memory
- Functions: Tolerance function, TRACK function, and peak value measurement
- Power Supply: Rechargeable battery operation
- Compatibility: Can be mounted on all SAUTER test stands
- Scope Of Supply: Force gauge, system case, plug-in power supply, and USB cable type C
This Kern electric force gauge is suitable for laboratories and quality control settings requiring accurate multi-channel tensile and compressive force measurement.
Product Specifications
- HS Code #90248000
- Depth31 mm
- Dimensions (WxDxH)71 x 31 x 180 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Height180 mm
- Max. measured value500 N
- Max. voltage240 V
- Measured range500 N
- Min. voltage100 V
- No. of channels4
- Plug typeEU
- Power supply100 ... 240 V, 50/60 Hz
- Readability0,1 N
- Type of auxiliary energyRechargeable battery
- Width71 mm
Variant products
Products related to this item (9)
product | Mfr # | Part # | Product name | Plug type | Type of
auxiliary energy | Price | Availability | |
FS 4-100 | 4.691 190 | Kern Electric Force Gauge, Maximum 100 N, d=0.02 N, Subject To Labeling UN 3481 | EU | Rechargeable battery | $2,685.44 | |||
FS 2-200 | 4.691 187 | Kern FS 4-200 Digital Force Gauge (200 N Capacity, 0.04 N Readability) | EU | Rechargeable battery | $2,434.76 | |||
FS 4-200 | 4.691 192 | Kern Electric Force Gauge Max 200 N, d=0.04 N | EU | Rechargeable battery | $2,685.44 | |||
FS 2-100 | 4.691 185 | Kern Electric Force Gauge Max 100 N, d=0.02 N | EU | Rechargeable battery | $2,434.76 | |||
FS 4-50 | 4.691 193 | Kern Electric Force Gauge Max 50 N d=0.01 N | EU | Rechargeable battery | $2,685.44 | |||
FS 2-50 | 4.691 188 | Kern Electric Force Gauge Max 50 N d=0.01 N, Dimensions 71 x 31 x 180 mm | EU | Rechargeable battery | $2,434.76 | |||
FS 2-20 | 4.691 186 | Kern Electric Force Gauge Max 20 N d=0.004 N | EU | Rechargeable battery | $2,434.76 | |||
FS 2-500 | 4.691 189 | Kern Electric Force Gauge Max 500 N d=0.1 N Subject to Labeling UN 3481 | EU | Rechargeable battery | $2,434.76 | |||
FS 4-20 | 4.691 191 | Kern Electric Force Gauge Max 20 N d=0.004 N, Dimensions
71 x 31 x 180 mm | EU | Rechargeable battery | $2,685.44 |
