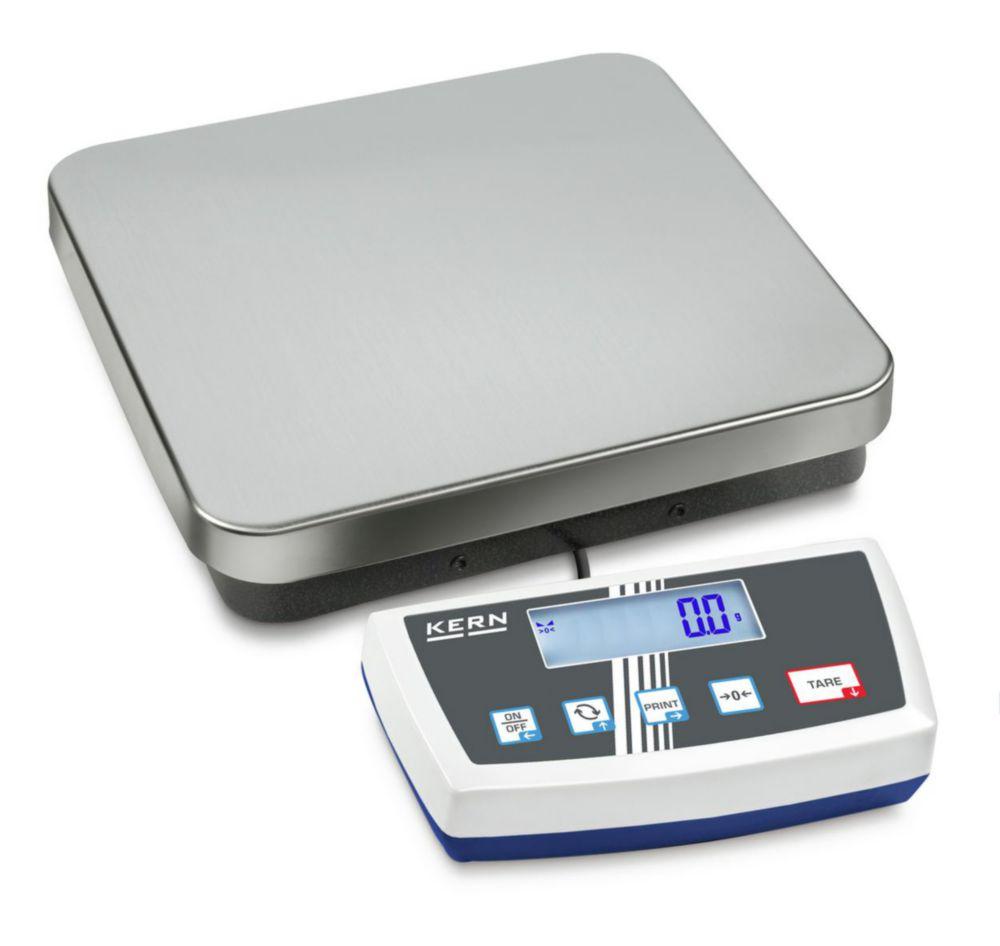

Representative image only
Kern Platform Balance DS 20K0.1, 20.1 kg / 0.1 g, Weighing Plate 308 x 318 x 75 mm
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 7.629 878Manufacturer #: DS 20K0.1
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Kern Platform Balance DS 20K0.1, 20.1 kg / 0.1 g, Weighing Plate 308 x 318 x 75 mm is a high-capacity precision balance designed for high-volume or heavy samples requiring accurate weighing. The KERN Universal Port allows connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WiFi, or Ethernet for data exchange and control commands, while the KERN Communication Protocol enables searching and remote control through external devices or computers.
Key Features:
- Brand: Kern
- Product Type: Platform balance
- Model: DS 20K0.1
- Capacity: 20.1 kg
- Readability: 0.1 g
- Weighing Plate: 308 x 318 x 75 mm
- Display: Large backlit LCD display
- Functions: Numerical subtraction of tare weight and freely programmable weighing unit
- Connectivity: KERN Universal Port for RS-232, USB, Bluetooth, WiFi, or Ethernet adapter connection
- Protocol: KERN Communication Protocol for searching and remote control
- Display Device Dimensions: 225 x 115 x 60 mm
- Scope Of Supply: Platform scale and protective working cover
This Kern platform balance is suitable for laboratories and industrial workplaces requiring accurate high-capacity weighing, flexible connectivity, and convenient data control.
Product Specifications
- HS Code #84238129
- Adjusting programExternal
- Depth318 mm
- Depth weighing plate318 mm
- Dimensions (WxDxH)308 x 318 x 75 mm
- Power supply frequency50/60 Hz
- Height75 mm
- Linearity±0,3 g
- Material housingPlastic
- Material weighing plateStainless steel
- Max. load20 kg
- Max. voltage240 V·AC
- Min. voltage100 V
- Plug typeEU/CH/UK/US
- Power supply100 ... 240 V·AC, 50/60 Hz
- Readability0,1 g
- Reproducibility0,1 g
- TypeDS 20K0.1
- Type of auxiliary energyMains connection
- UNSPSC41111509
- Warranty3 years
- Weighing plate (WxD)308 x 318 mm
- Weight8 kg
- Width308 mm
- Width weighing plate308 mm
