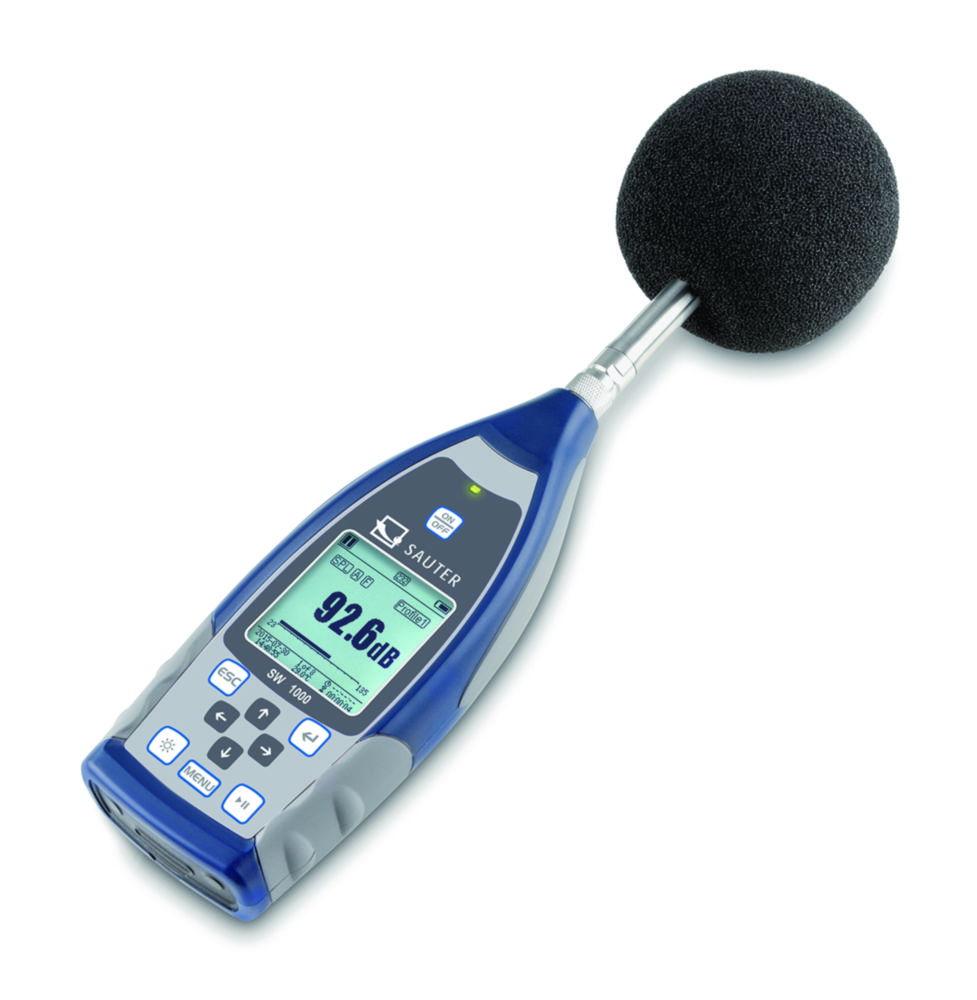

Kern Sound Level Meter Class I SW 1000

The Kern Sound Level Meter Class I SW 1000 is a highly precise instrument designed to measure sound levels in a wide range of environments. It features a linear measuring range of 13–136 dB and a frequency range of 0.02–12.5 kHz, ensuring accurate readings for various applications. This Class I sound level meter is ideal for professional noise measurement, environmental sound monitoring, and acoustics analysis.

Key Features:

• Brand: Kern
• Measuring Range: 13–136 dB for reliable sound level detection
• Frequency Range: 0.02–12.5 kHz for comprehensive frequency response
• Class: Class I for high-precision measurements
• Suitable for outdoor workplace measurements, e.g., airports, building sites, and road construction
• Highly accurate 24-Bit A/D converter for broad spectrum access
• Selectable sound pressure levels including Laeq, LcPeak, LaF, LaFMax, LaFMin, SD, SEL, E
• Optimised analogue frontend switch reduces ambient noise and increases linear measuring range
• Three profiles and 14 user-defined measurements calculable in parallel with different frequency and time weighting
• LN statistics and graphical time progression display
• User-defined integral interval measurement up to 24 hours
• Frequency weighting (filters): A, B, C, Z
• Time intervals during measurement: F (fast), S (slow), I (impulse)
• Freely definable optical alarm limits
• Peak Hold Mode to capture peak values
• Octavo function for targeted sound analysis
• Track function with graphic display of measurements
• Calibration mode available (with optional calibrator)
• Trigger mode: analogue signal input via 3.5 mm plug to switch device on/off
• Automatic timer-based measurements
• Selectable measured value recording frequency: 10, 5, or 2 Hz
• Data transfer via MicroSD (4 GB), RS-232, or USB
• Optional fitting of a column mount on the rear housing (¼ thread)

Scope of Supply:

• Sound level meter
• Memory card
• Hard carrying case
