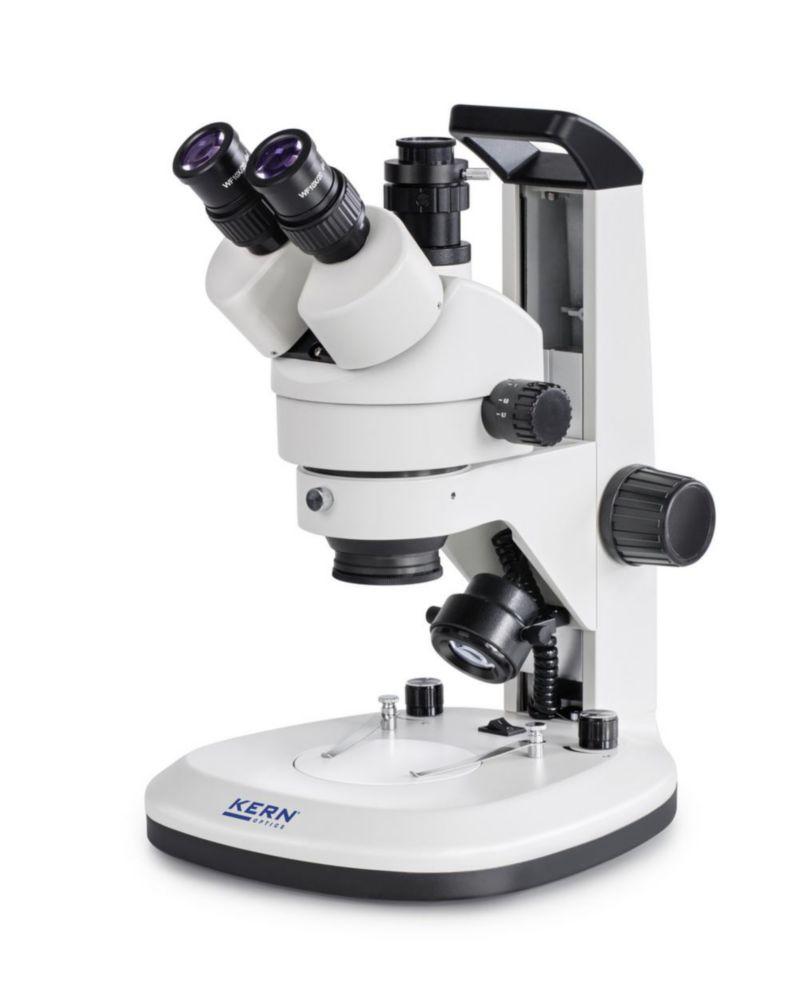

Kern Stereo Zoom Microscope with Handle (0.75–4.5x, HWF10x20, LED, Trinocular)

The Kern Stereo Zoom Microscope with Handle (0.75–4.5x, HWF10x20, LED, Trinocular) is a versatile and ergonomic optical instrument designed for detailed inspection and analysis in laboratory, educational, and industrial environments. With Greenough optical technology and a 45° inclined trinocular tube, it offers superior imaging quality and user comfort. The integrated handle and robust stand make it especially suited for mobile or frequent repositioning tasks.

Key Features

• Brand: Kern
• Optical System: Greenough
• Magnification Range: 0.75x to 4.5x continuous zoom
• Eyepieces: Wide Field HWF10x/20 mm
• Eyepiece Adjustment: Diopter adjustment on both sides
• Interpupillary Distance: 55–75 mm
• Tube Type: Trinocular, inclined at 45° for ergonomic viewing and camera integration
• Illumination: Integrated 3W LED incident and 3W LED transmitted light, both separately dimmable
• Ring Lighting (OZL 466): Strong, continuously dimmable LED ring illumination built into the objective housing
• Stand (OZL 468): Mechanical stand with integrated handle for stable and convenient use
• Dimensions (W×D×H): 300 × 240 × 420 mm
• Weight: Approximately 4 kg
• Accessories Available: Wide selection of eyepieces, auxiliary objectives, and external lighting options

Scope of Supply

• Stereo microscope with integrated handle
• Protective dust cover
• Eyepiece rubber caps
• Multi-lingual user instructions

This flexible all-rounder is ideal for detailed observation and documentation tasks in electronics inspection, biological studies, quality control, and training environments. The content of the body element is displayed in your browser, ensuring the product information is clearly visible and easily accessible for your users and digital platforms.
