Representative image only
Kern Ultrasonic Material Thickness Meter TN 300-0.1US – 300 mm / 0.1 mm
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.270 974Manufacturer #: TN 300-0.1US
Estimated shipping time:Contact us via live chat or via contact us page
See the available (5) variant productsProduct overview

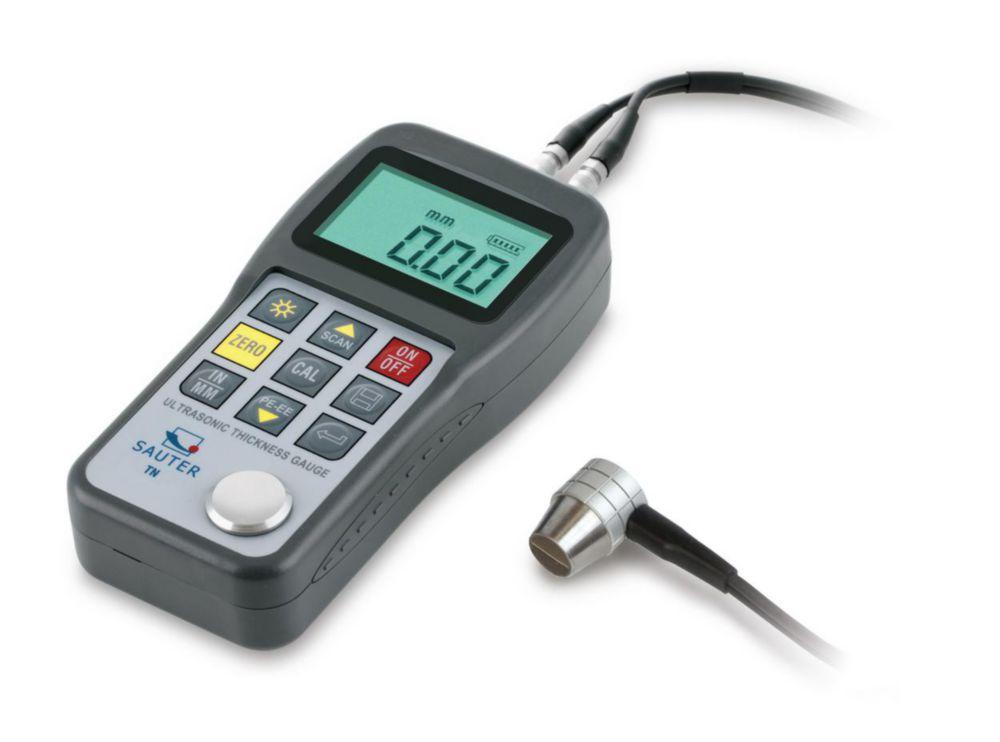

The Kern Ultrasonic Material Thickness Meter TN 300-0.1US is a precision measuring instrument designed for non-destructive thickness measurement of various materials including metals, plastics, and ceramics. With a measurement range up to 300 mm and an accuracy of 0.1 mm, this ultrasonic thickness gauge ensures reliable performance in quality control, maintenance, and inspection applications.
Key Features:
- Brand: Kern
- Model: TN 300-0.1US
- Measurement Range: Up to 300 mm
- Resolution: 0.1 mm
- Technology: Ultrasonic non-destructive testing (NDT)
- Applications: Ideal for industrial, manufacturing, and engineering use
This user-friendly device is perfect for detecting material flaws, corrosion, and thickness variations, ensuring safety and compliance in a wide range of industries.
Product Specifications
- HS Code #90279000
- Battery/rechargeable battery2 x 1.5 V, AA
- Depth74 mm
- Designation ANSIAA
- Dimensions (WxDxH)150 x 74 x 32 mm
- Height32 mm
- Max. measured value300 mm
- Max. voltage battery/ rechargeable battery1.5 V
- Measured range3 ... 300 mm
- Min. measured value3 mm
- No. of batteries/ rechargeable batteries2
- Resolution0.1 mm
- Tolerance0,5 %
- Type of auxiliary energyBattery
- Weight250 g
- Width150 mm
- Manufacturer Article NumberTN 300-0.1US
Kern Ultrasonic Material Thickness Meter TN 300-0.1US – 300 mm / 0.1 mm
$1,522.77
Variant products
Products related to this item (5)
product | Mfr # | Part # | Product name | Type of
auxiliary energy | Battery/rechargeable
battery | Price | Availability | |
TN 230-0.1US | 6.270 973 | Kern Ultrasonic Material Thickness Meter TN 230-0.1US, 230 mm / 0.1 mm
| Battery | 2 x 1.5 V, AA | $1,297.92 | |||
TN 80-0.1US | 6.270 972 | Kern Ultrasonic Material Thickness Meter TN 80-0.1US 80 mm / 0.1 mm
| Battery | 2 x 1.5 V, AA | $1,297.92 | |||
TN 300-0.01US | 4.691 208 | Kern Ultrasonic Material Thickness Gauge - External - d= 0.01 mm (2.5 MHz)
| Battery | 2 x 1.5 V, AA | $1,647.44 | |||
TN 230-0.01US | 4.691 207 | Kern Ultrasonic Material Thickness Gauge - External, d=0.01 mm (5 MHz)
| Battery | 2 x 1.5 V, AA | $1,440.40 | |||
TN 80-0.01US | 4.691 209 | Kern Ultrasonic Material Thickness Gauge - External for TN-GOLD, d = 0.01 mm (7 MHz)
| Battery | 2 x 1.5 V, AA | $1,440.40 |
