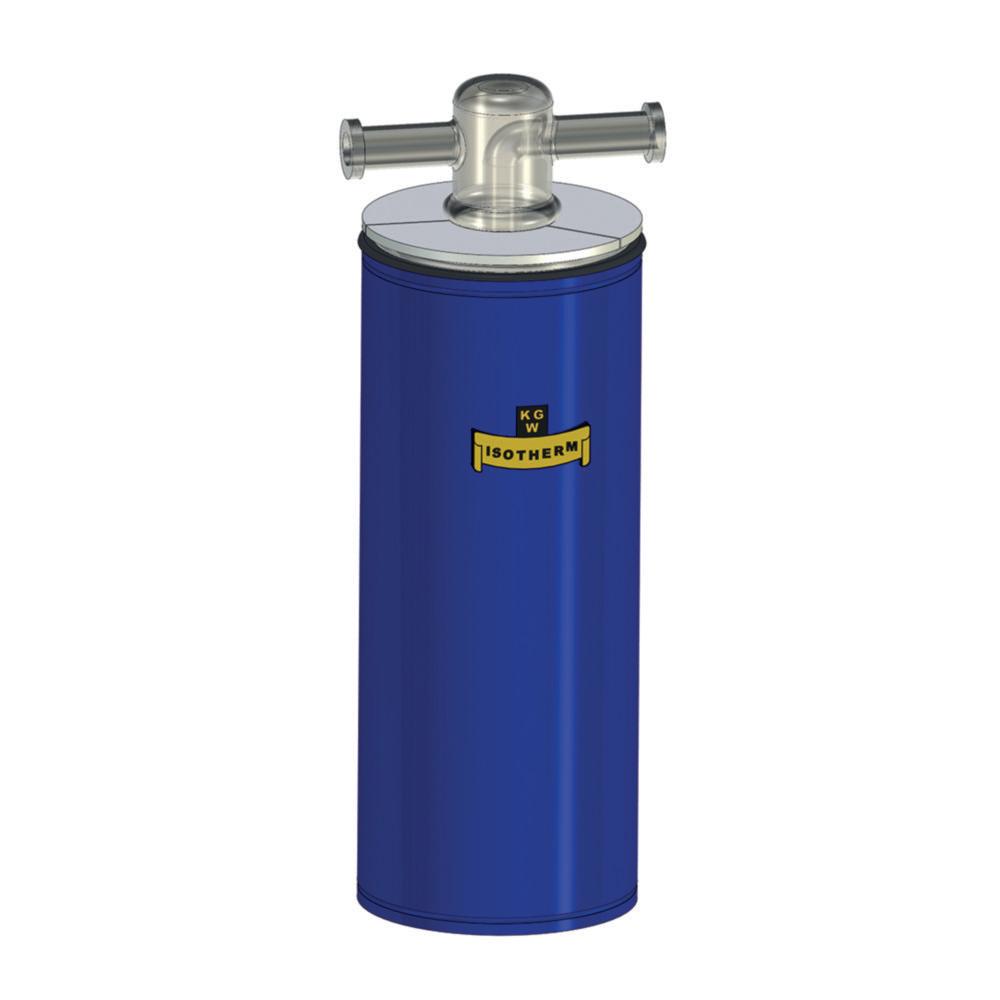

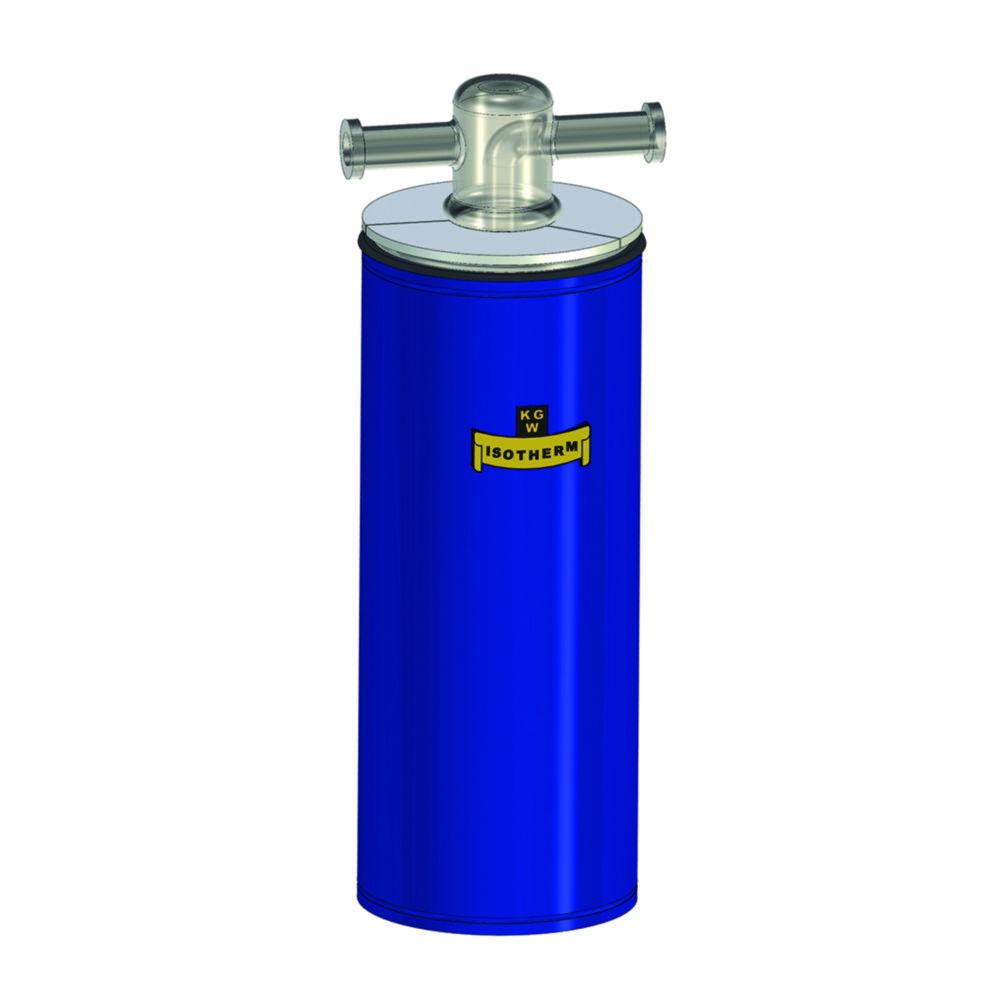

KGW Schieder Cold Trap Type KFL 29-NW16 with Small Flange Connection Made of Glass KF-NW16 with Pertinax Clamps

The KGW Schieder Cold Trap Type KFL 29-NW16 with Small Flange Connection is designed for efficient cold trapping in laboratory applications. Made from high-quality glass and featuring a KF-NW16 connection, this cold trap is perfect for use in vacuum systems and is equipped with Pertinax clamps for secure installation. It ensures reliable performance and ease of use, making it ideal for laboratories requiring precise and effective trapping of vapors and gases.

Key Features:

• Brand: KGW Schieder
• Material: High-quality glass for durability and chemical resistance
• Connection Type: KF-NW16 with Pertinax clamps for secure connection
• Application: Designed for use in vacuum systems for efficient cold trapping
• Extended Condensate Area: Holds larger volumes of condensate
• Compatibility: KF NW small vacuum flange made of glass for connecting pumping units with small metal vacuum flanges (ISO 2861)
• Packaging: Sold individually

Note: An End User Declaration form must be completed after placing the order for this item.

Scope of Supply:

• Cold trap
• Support ring
• Dewar flask type 18 C

The standard assembly is designed for use with LN2 as coolant. When using CO2 and acetone, please order the CO2 wire basket separately.
