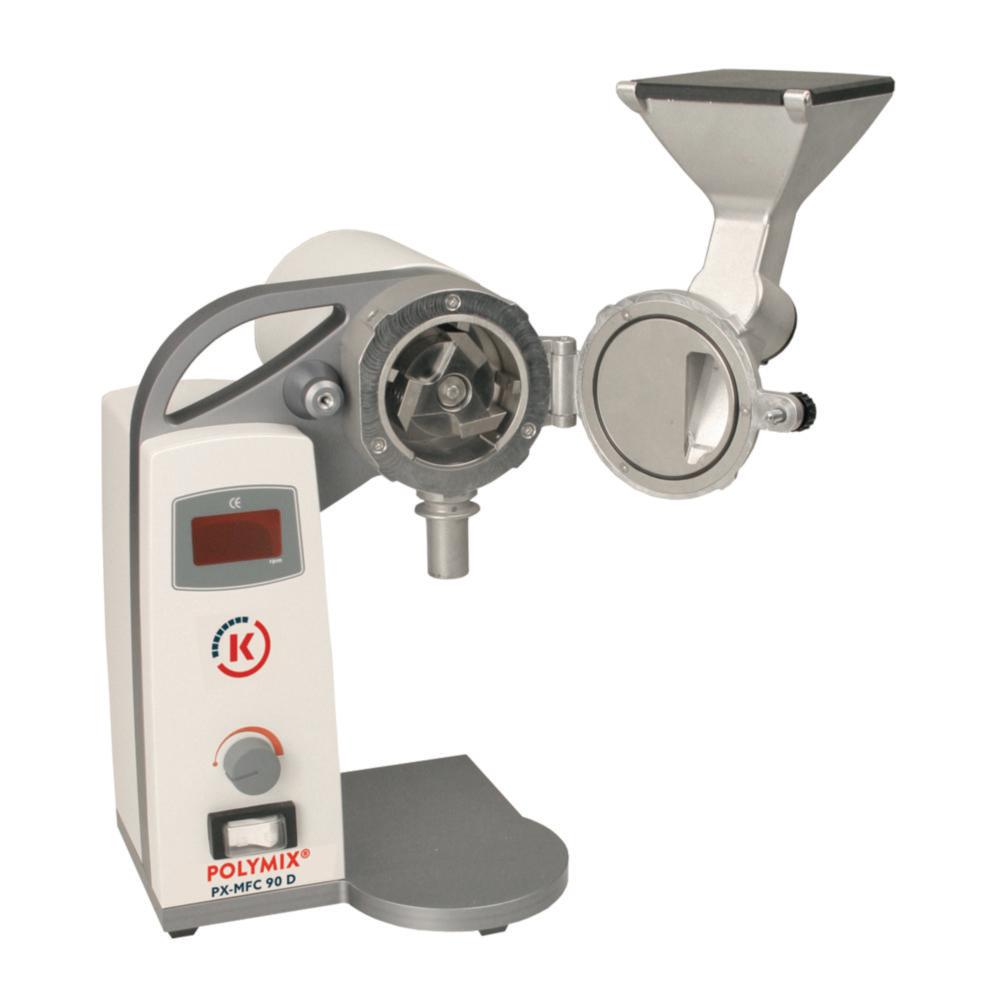

KINEMATICA POLYMIX Lab mill PX-MFC 90 D 230 V/ EU, with hammer grinding attachment
Representative image only

KINEMATICA POLYMIX Lab mill PX-MFC 90 D 230 V/ EU, with hammer grinding attachment

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.241 371Manufacturer #: 35010021
Estimated shipping time:Contact us via live chat or via contact us page

$24,536.89

See the available (2) variant products
Product overview

The KINEMATICA POLYMIX Lab mill PX-MFC 90 D 230 V/ EU with hammer grinding attachment is an advanced laboratory solution for dry milling applications. Designed for high-performance and versatility, this mill is perfect for grinding a variety of materials efficiently and uniformly. The included hammer grinding attachment ensures fast and reproducible results, making it ideal for research and quality control labs.

Key Features:

  • Brand: KINEMATICA
  • Model: POLYMIX PX-MFC 90 D
  • Power Supply: 230 V / EU plug
  • Attachment: Includes hammer grinding attachment for effective dry milling
  • Application: Ideal for pharmaceutical, chemical, agricultural, and food industries
  • Design: Compact, robust, and user-friendly for laboratory environments
  • Material Processing: Suitable for dried, brittle, and grease-free materials such as dried grain, dried beans, bones, rock, ceramics, etc.
  • Sieves: Available in sizes from 0.2 mm up to 6 mm diameter
  • Safety Features: Prevents operation if lid is open; safety stopper for certain materials
  • Motor: Powerful 1000 Watt, three-phase motor with low noise operation
  • Milling Chamber: With interchangeable inserts and 300 ml funnel volume
  • Control: Integrated speed control with LED display for speed and status messages
  • Protection: Overheating, overload, and rotor blocking protection

Scope of Supply:

  • Mill with hammer mill sets
  • 2 mm sieve
  • Tool set
  • Wooden stand with 12 collection tubes

This lab mill is a reliable and efficient choice for consistent dry milling performance in demanding lab conditions.

Product Specifications
  • HS Code #84792000
  • Depth325 mm
  • Dimensions (WxDxH)251 x 325 x 480 mm
  • Power supply frequency50/60 Hz
  • Height480 mm
  • IP codeIP 20
  • Max. final fineness200 µm
  • Max. speed6000 1/min
  • Max. voltage230 V
  • Min. speed50 1/min
  • Min. voltage100 V
  • Plug typeEU
  • Power supply100 ... 230 V, 50/60 Hz
  • Rated capacity1 kW
  • Speed50 ... 6,000 1/min
  • Type of auxiliary energyMains connection
  • Type of grindingdry
  • Weight12 kg
  • Width251 mm
Downloads
  • Kinematica POLYMIX PX-MFC 90D BrochureDownload
  • Kinematica POLYMIX PX-MFC 90D Instruction ManualDownload
  • Kinematica POLYMIX PX-MFC 90D Blade Mounting GuideDownload
