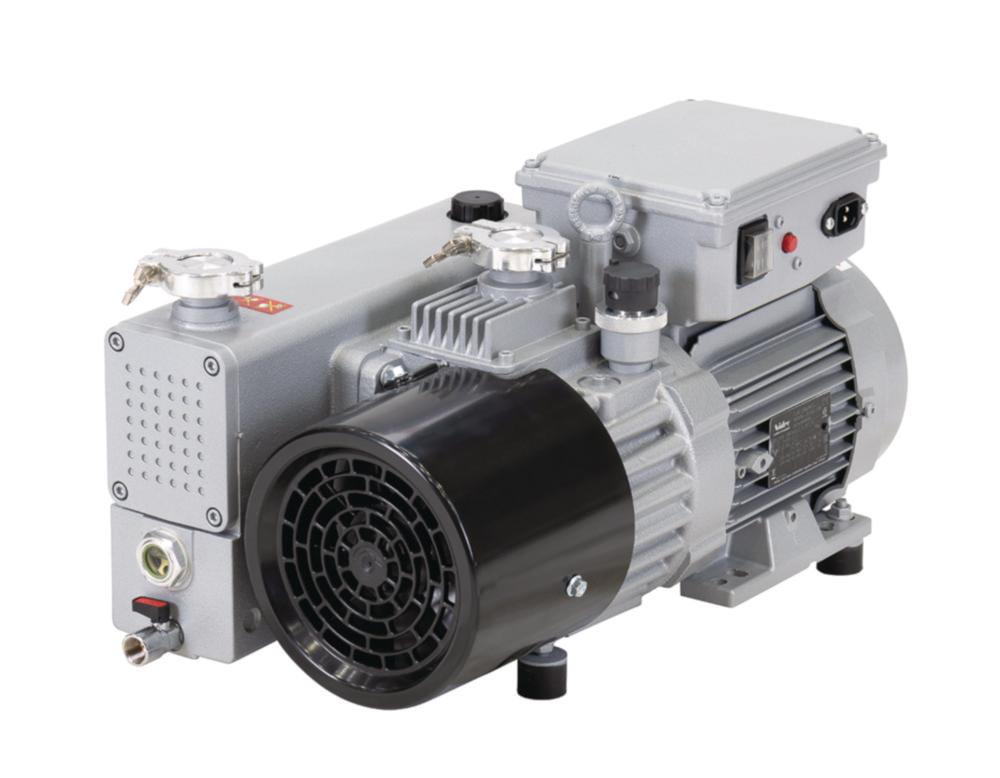

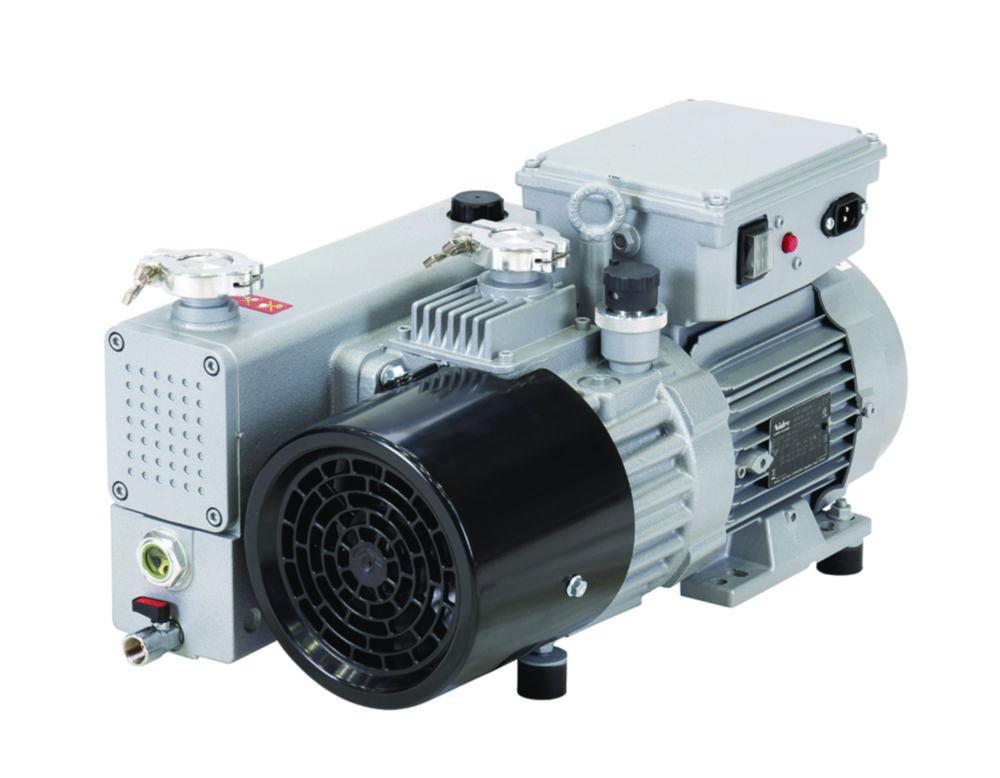

Leybold Rotary Vane Pump NEO D 40 1PH WELT, Pumping Speed 47.00 m³/h, Two-Stage, Oil-Sealed
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.700 552Manufacturer #: 970300V
Estimated shipping time:Contact us via live chat or via contact us page
See the available (2) variant productsProduct overview
The Leybold Rotary Vane Pump NEO D 40 1PH WELT is engineered for high-performance pumping in various industrial and laboratory applications. With a pumping speed of 47.00 m³/h, this two-stage, oil-sealed pump ensures maximum efficiency and reliability. Ideal for environments requiring precise vacuum control, the NEO D 40 offers optimal performance for a range of demanding tasks.
Key Features:
- Brand: Leybold
- Pumping Speed: 47.00 m³/h
- Stage: Two-stage pump for high efficiency
- Seal Type: Oil-sealed for enhanced performance
- Power: 1PH (Single-phase power supply)
- Applications: Ideal for laboratory, industrial, and research environments
- Durability: Built for long-lasting, high-performance operation
Designed for reliable and efficient vacuum performance, the Leybold Rotary Vane Pump NEO D 40 is a key solution for professionals who need precise vacuum systems.
Product Specifications
- HS Code #84141025
- Connection suction sideKF DN 40
- Depth632 mm
- Dimensions (WxDxH)356 x 632 x 320 mm
- Flow rate47 m³/h
- Power supply frequency50/60 Hz
- Height320 mm
- Max. voltage264 V
- Min. voltage180 V
- No. of stages2
- Noise level57 db(A)
- Power supply180 ... 264 V, 50/60 Hz
- TypeSOGEVAC NEO D 40
- Type of auxiliary energyMains connection
- Ultimate vacuum0.008 mbar
- UNSPSC41105109
- Weight80 kg
- Width356 mm
Leybold Rotary Vane Pump NEO D 40 1PH WELT, Pumping Speed 47.00 m³/h, Two-Stage, Oil-Sealed
$14,279.12
Variant products
Products related to this item (2)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
970200V | 4.700 551 | Leybold Rotary Vane Pump NEO D 25 Pumping Speed 28.00 m³/h, Two-Stage, Oil-Sealed | SOGEVAC NEO D 25 | Mains connection | $10,984.24 | |||
970100V | 4.700 550 | Leybold Rotary Vane Pump NEO D 16 1PH WELT Pumping Speed 19.00 m³/h, Two-Stage, Oil-Sealed | SOGEVAC NEO D 16 | Mains connection | $9,030.93 |
