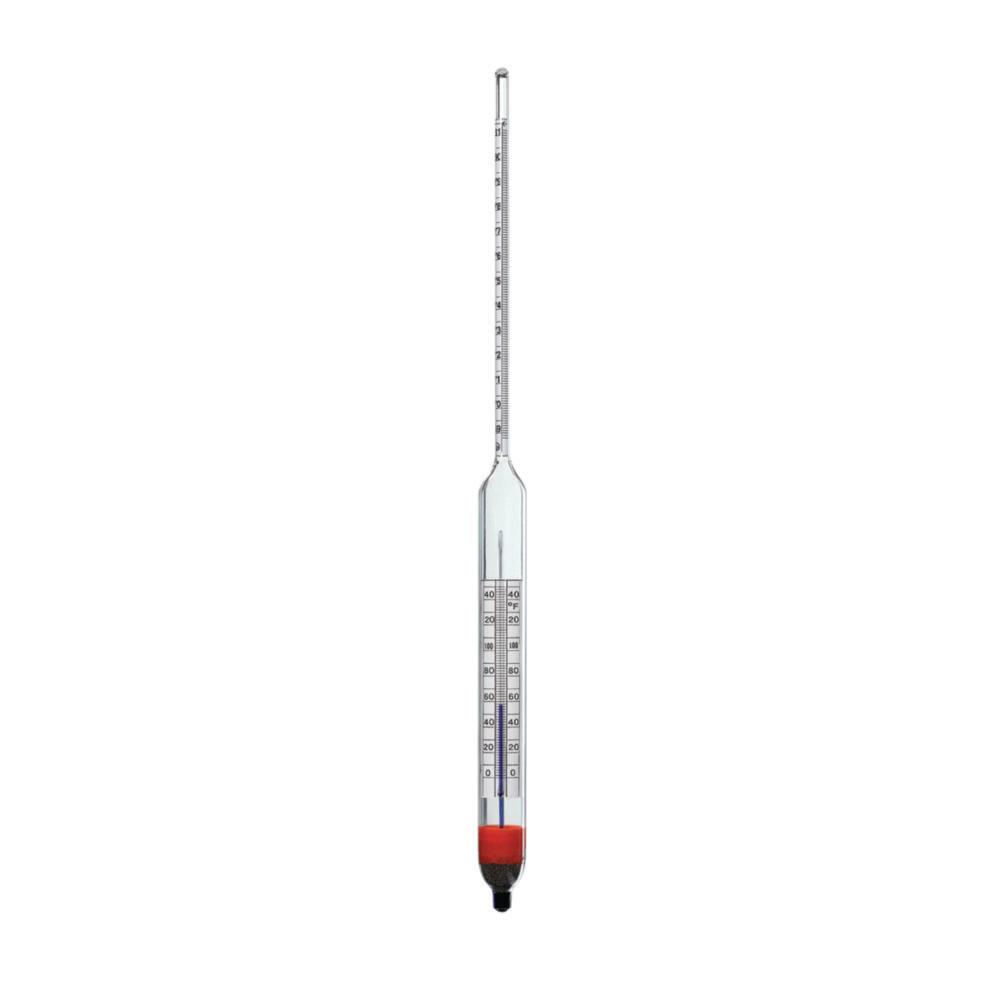

Ludwig Schneider Precision ASTM Hydrometer Type S505HL-14, -20 to +65 °C, 850–900 kg/m³, 0.5 kg/m³ Division, 380 mm, Blue Filling, 2x3 Test Points
Product overview
The Ludwig Schneider Precision ASTM Hydrometer Type S505HL-14 is designed for precise density measurements of mineral oils, adhering to ASTM E2995-14 standards. This hydrometer features a measurement range of 850–900 kg/m³ with a division of 0.5 kg/m³, and is equipped with a thermometer calibrated from -20 °C to +65 °C in 1 °C increments. The instrument has a total length of 380 mm and is filled with environmentally friendly blue liquid. It includes 2x3 test points for accuracy verification and is housed in a protective plastic tube to prevent breakage.
Key Features:
- Brand: Ludwig Schneider
- Measurement Range: 850–900 kg/m³
- Division: 0.5 kg/m³
- Thermometer Range: -20 °C to +65 °C in 1 °C increments
- Total Length: 380 mm
- Filling: Blue (environmentally friendly)
- Test Points: 2x3
- Compliance: ASTM E2995-14
- Packaging: Supplied in a protective plastic tube
This hydrometer is an essential tool for laboratories requiring precise and reliable density measurements of mineral oils.
Product Specifications
- HS Code #90258080
- Colour fillingBlue
- Division0.5 kg/m³
- Length380 mm
- Max. measured value900 kg/m³
- Max. temperature65 °C
- Measured range850 ... 900 kg/m³
- Min. measured value850 kg/m³
- Min. temperature-20 °C
- Reference temperature15 °C
- StandardASTM E2995-14
- Temperature-20 ... 65 °C
- With thermometerYes
