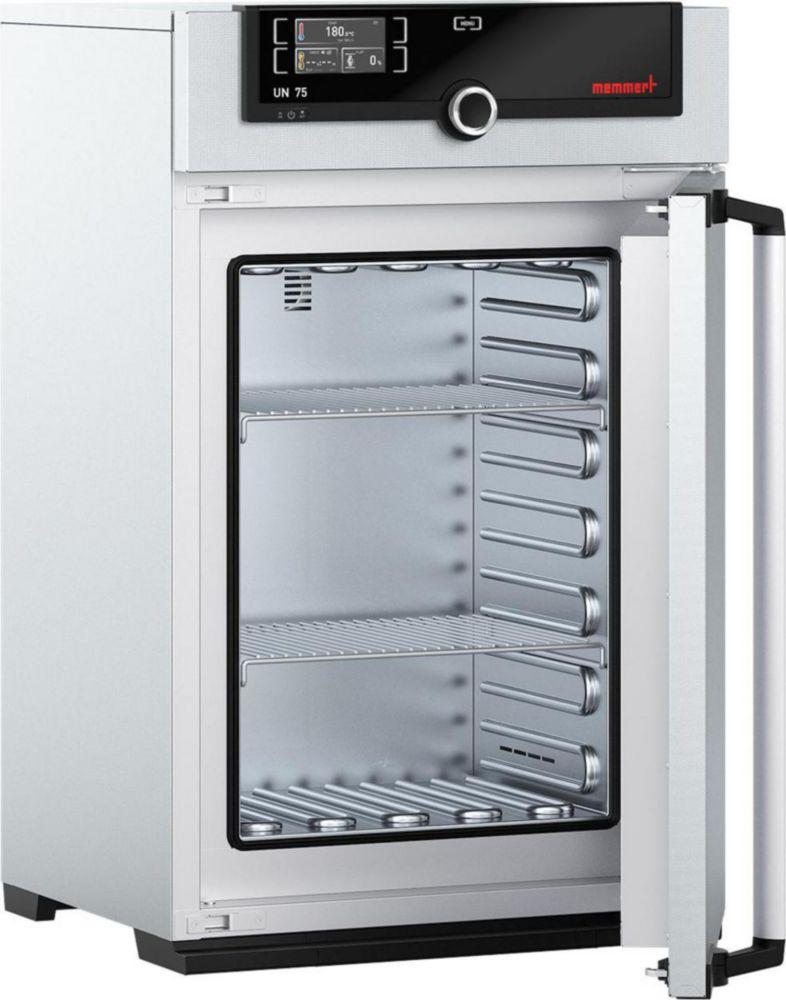

Representative image only

Memmert UN75 Universal Cabinet, 74 L, +5°C to +300°C, Natural Air Circulation

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.869 683Manufacturer #: UN75
Estimated shipping time:Contact us via live chat or via contact us page

$5,441.62

See the available (7) variant products
Product overview

The Memmert UN75 Universal Cabinet is a versatile and compact laboratory oven designed for precise heating and drying applications. With a 74-liter capacity and natural air circulation, it ensures uniform temperature distribution, making it ideal for tasks such as drying, aging, and material testing.

Key Features:

  • Brand: Memmert
  • Model: UN75
  • Capacity: 74 liters
  • Temperature Range: +5°C to +300°C
  • Air Circulation: Natural convection
  • Interior Dimensions (W x D x H): 400 x 330 x 560 mm
  • Exterior Dimensions (W x D x H): 585 x 514 x 944 mm
  • Material: Stainless steel interior and exterior
  • Control: SingleDISPLAY with intuitive touch interface
  • Safety: Over-temperature protection and audible/visual alarms
  • Power Supply: 230 V, 50/60 Hz
  • Weight: Approximately 66 kg

This universal cabinet is suitable for a wide range of laboratory applications, including drying, aging, and material testing, providing reliable and consistent performance.

Product Specifications
  • HS Code #84198998
  • Depth int.330 mm
  • Ext. dim. (WxDxH)585 x 514 x 944 mm
  • Ext. depth514 mm
  • Ext. height944 mm
  • Ext. width585 mm
  • Power supply frequency50/60 Hz
  • Height int.560 mm
  • Int. Dim. (WxDxH)400 x 330 x 560 mm
  • Int. width400 mm
  • Material interiorStainless steel 1.4301
  • Max. no. of inserts6
  • Max. temperature300 °C
  • Max. voltage230 V
  • Min. temperature+5 °C
  • Nominal capacity74 l
  • Power supply230 V, 50/60 Hz
  • Rated capacity2500 W
  • TemperatureRT
  • TemperatureRT+5 ... 300 °C
  • TypeUN75
  • Type of auxiliary energyMains connection
  • UNSPSC41104510
  • Weight66 kg
  • With timerYes
