Ohaus Guardian 5000 Hotplate Stirrer e-G52HSRDA (230V EU)

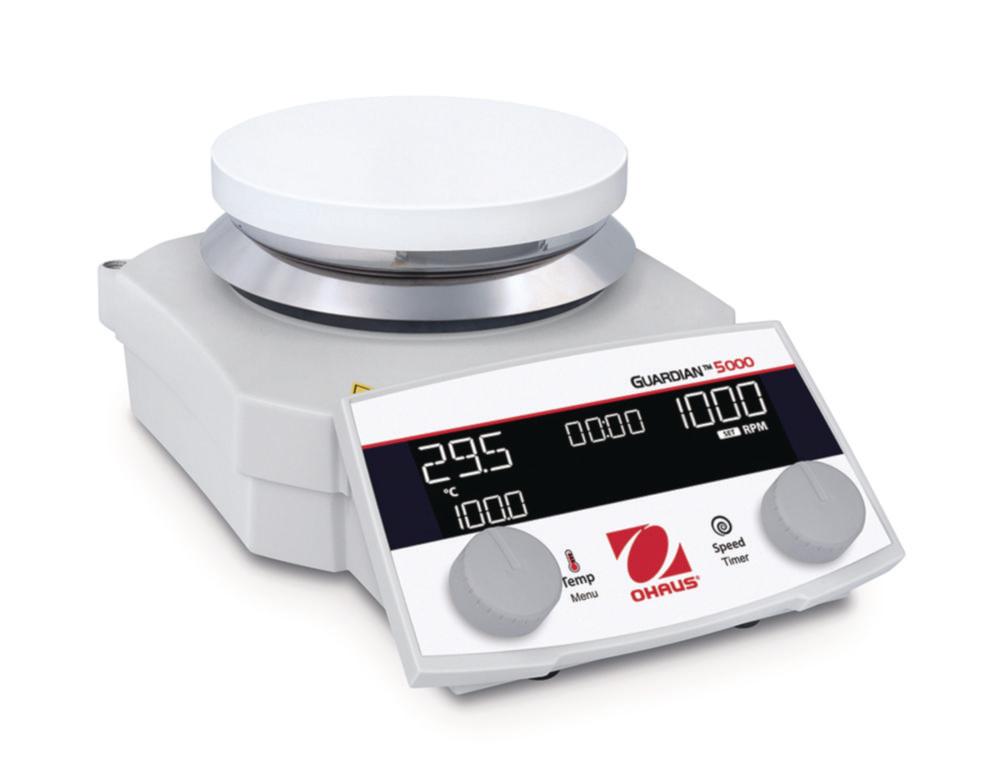

Representative image only

Ohaus Guardian 5000 Hotplate Stirrer e-G52HSRDA (230V EU)

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.702 913Manufacturer #: 30541640
Estimated shipping time:Contact us via live chat or via contact us page

$1,292.07

Product overview

The Ohaus Guardian 5000 Hotplate Stirrer e-G52HSRDA (230V EU) is a compact and efficient solution for laboratory heating and stirring applications. Featuring a 13.5 cm diameter ceramic-coated aluminum plate, it offers precise temperature control up to 360°C and stirring speeds ranging from 50 to 1,800 rpm. Designed for safety and versatility, this model is ideal for research, academic, and industrial settings.

Key Features:

  • Brand: Ohaus
  • Model: e-G52HSRDA
  • Voltage: 230V EU
  • Function: Heating and Stirring
  • Capacity: 20 L
  • Plate Size: 13.5 cm diameter
  • Plate Material: Ceramic-Coated Aluminum
  • Temperature Range: Ambient +5°C to 360°C
  • Speed Range: 50 to 1,800 rpm
  • Display: High-contrast LCD
  • Timer: 1 minute to 99 hours, 59 minutes
  • Safety Features: SafetyHeat™, SmartHeat™, SmartRate™, Run Dry Protection
  • External Temperature Sensor Compatibility: Pt100, Pt1000
  • Communication: RS232 for data logging and remote control
  • Dimensions (WxDxH): 175 x 259 x 108 mm
  • Weight: 2.6 kg
  • Certifications: CE, TÜV

This hotplate stirrer is engineered for consistent performance and enhanced safety in various laboratory applications.

Product Specifications
  • HS Code #84198998
  • Amperage4 A
  • Depth259 mm
  • Dimensions (WxDxH)175 x 259 x 108 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Heating capacity656 W
  • Heating temperatureRT +5 ... 360 °C
  • Height108 mm
  • IP codeIP 32
  • Material housingAluminium
  • Material stirring surfaceAluminium/Ceramic
  • Max. heating temperature360 °C
  • Max. permitted ambient temp.40 °C
  • Max. relative humidity rate80 %
  • Max. speed1800 1/min
  • Max. stirring capacity20 l
  • Max. voltage240 V
  • Min. heating temperature+5 °C
  • Min. permitted ambient temperature5 °C
  • Min. speed50 1/min
  • Min. voltage220 V
  • No. of stirring positions1
  • Permitted ambient temperature5 ... 40 °C
  • Plug typeEU
  • Power supply220 ... 240 V, 50/60 Hz , 4 A
  • Speed50 ... 1,800 1/min
  • Typee-G52HSRDA
  • Type of auxiliary energyMains connection
  • UNSPSC41103806
  • Weight2.6 kg
  • Width175 mm
  • With connection ext. temperature sensorYes
  • With timerYes
  • Working area Ø135 mm
