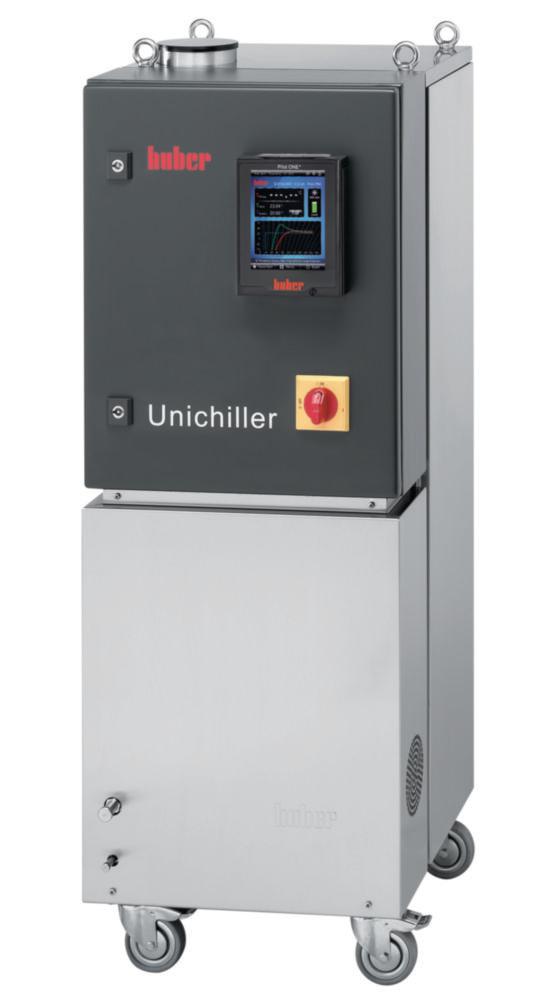

Representative image only
Peter Huber Chiller Unichiller 017Tw temp.-range: -10...40°C, with controller Pilot ONE
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.687 693Manufacturer #: 3013.0075.01
Estimated shipping time:Contact us via live chat or via contact us page
See the available (4) variant productsProduct overview

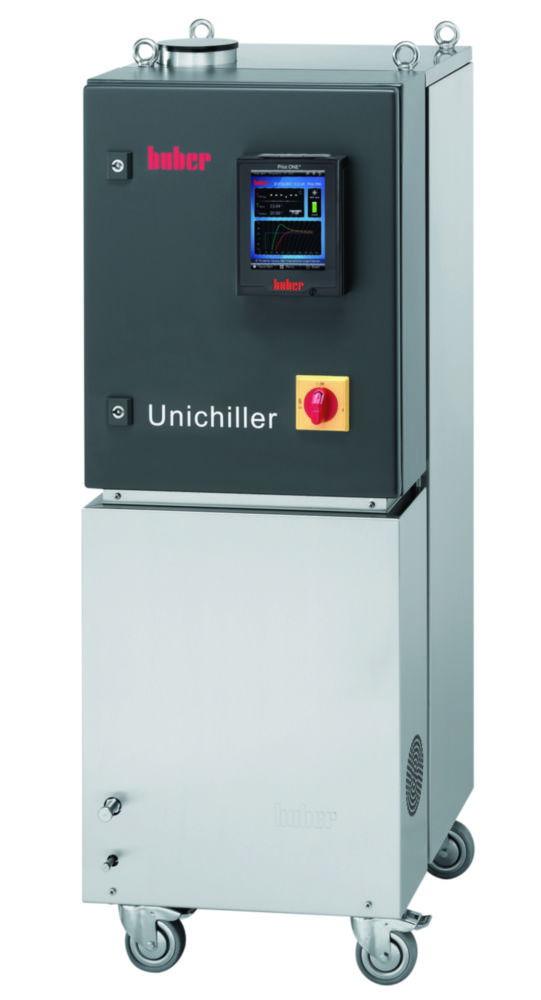

The Peter Huber Chiller Unichiller 017Tw is a high-performance recirculating chiller designed for precise temperature control in laboratory and industrial applications. With a temperature range of -10°C to 40°C and equipped with the advanced Pilot ONE touchscreen controller, it ensures accurate and user-friendly operation.
Key Features:
- Brand: Peter Huber
- Temperature Range: -10°C to 40°C
- Temperature Stability: ±0.5 K
- Controller: Pilot ONE touchscreen interface
- Cooling Capacity: 0.4 kW at -10°C, 0.9 kW at 0°C, 1.7 kW at 15°C
- Refrigerant: R449A (CFC and HCFC-free)
- Pump Capacity: 30 l/min; 3.8 bar
- Dimensions (W x D x H): 400 x 440 x 1230 mm
- Power Supply: 208V, 2~ 60Hz
- Protection Class: IP20
This chiller is ideal for applications requiring reliable and efficient temperature control, offering energy-efficient performance and easy integration into various systems.
Product Specifications
- HS Code #84198998
- Ext. dim. (WxDxH)400 x 440 x 1,230 mm
- Ext. depth440 mm
- Ext. height1230 mm
- Ext. width400 mm
- Power supply frequency50 Hz
- IP codeIP 20
- Max. delivery pressure3 bar
- Max. temperature40 °C
- Max. voltage230 V
- Max. volume bath2.5 l
- Min. temperature-10 °C
- OperationTouchscreen
- Power supply230 V, 50 Hz
- RefrigerantR449A
- Temperature stability0,5 K
- Temperature-10 ... 40 °C
- TypeUnichiller® 017Tw
- Type of auxiliary energyMains connection
- Volume bath2.5 l
Peter Huber Chiller Unichiller 017Tw temp.-range: -10...40°C, with controller Pilot ONE
$46,711.09
Variant products
Products related to this item (4)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
3014.0061.01 | 9.859 321 | Peter Huber Chiller Unichiller 040Tw temp.-range: -10...40°C, 27 l/min / 3.0 bar, with controller Pilot ONE
| Unichiller® 040Tw | Mains connection | $52,565.22 | |||
3024.0053.01 | 9.859 318 | Peter Huber Chiller Unichiller 020Tw temp.-range: -20...40°C, 27 l/min / 3.0 bar, with controller Pilot ONE | Unichiller® 020Tw | Mains connection | $48,012.01 | |||
3025.0056.01 | 9.859 320 | Peter Huber Heating Bath Circulator CC-308B temp.-range: (-20)28...300°C, 2.0 kW, with Controller Pilot ONE | Unichiller® 030Tw | Mains connection | $49,963.39 | |||
3054.0016.01 | 4.687 694 | Peter Huber Chiller Unichiller 025Tw Temp.-Range: -10...40°C, with Controller Pilot ONE | Unichiller® 025Tw | Mains connection | $48,921.88 |
Just add items to your shopping cart and select “Instant Quote”
