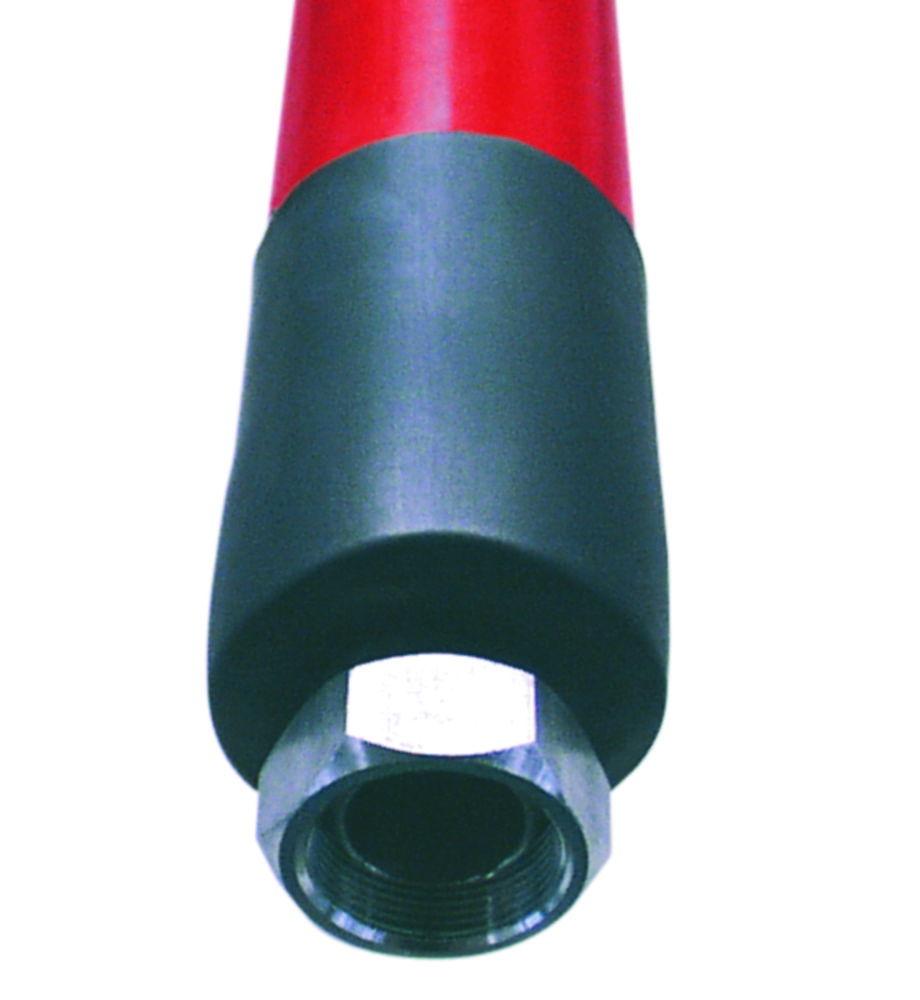

Representative image only
Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 200cm, 200°C Max Temp
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.857 216Manufacturer #: 9610
Estimated shipping time:Contact us via live chat or via contact us page
See the available (33) variant productsProduct overview
The Peter Huber Hose Connection Tubing is a high-quality insulated metal hose designed for precise temperature control applications. With a nominal width of 12 mm and M16x1 threaded connections, this 200 cm hose is engineered to withstand temperatures ranging from -50°C to 200°C, ensuring optimal performance in demanding laboratory and industrial environments.
Key Features:
- Brand: Peter Huber
- Material: Stainless Steel with special insulation and smooth silicon hose covering
- Connection Type: M16x1 threaded fittings
- Nominal Width: 12 mm
- Length: 200 cm
- Temperature Range: -50°C to 200°C
- Outer Diameter: 33 mm
- Manufacturer Part Number: 9610
This hose is ideal for use with Peter Huber temperature control systems, providing reliable and efficient thermal transfer for various applications.
Product Specifications
- HS Code #83071000
- TypeNW 12 M16 x 1
- Length cm200
- MaterialMetal
- Temp.- working range °C-50 ... 200
Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 200cm, 200°C Max Temp
$1,196.38
Variant products
Products related to this item (33)
product | Mfr # | Part # | Product name | Type | Material | Price | Availability | |
6786 | 9.857 048 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 200cm, 400°C Max. Temp. | NW 12 M24 x 1.5 | Metal | $2,563.12 | |||
6784 | 9.857 046 | Peter Huber Hose Connection Tubing, Metal NW12 M 24x1.5, 100cm, 400°C Max.Temp. | NW 12 M24 x 1.5 | Metal | $1,817.80 | |||
9276 | 9.857 219 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 200cm, 350°C Max.Temp. | NW 12 M24 x 1.5 | Metal | $1,953.31 | |||
6785 | 9.857 047 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 150cm, 400°C Max.Temp. | NW 12 M24 x 1.5 | Metal | $2,234.02 | |||
6426 | 9.857 125 | Peter Huber Hose Connection Tubing, Metal NW 20 M30x1.5, 100cm, 350°C max.temp. | NW 20 M30 x 1.5 | Metal | $1,817.80 | |||
6656 | 9.857 130 | Peter Huber Hose Connection Tubing, Metal NW25 M38x1.5, 150cm, 350°C Max. Temp. | NW 25 M38 x 1.5 | Metal | $2,563.12 | |||
6085 | 9.857 122 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 150cm, 350°C Max. Temp. | NW 12 M16 x 1 | Metal | $1,318.34 | |||
9274 | 9.857 218 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 100cm, 350°C Max Temp. | NW 12 M24 x 1.5 | Metal | $1,329.96 | |||
6136 | 9.857 045 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 200cm, 350°C Max Temp | NW 12 M16 x 1 | Metal | $1,525.48 | |||
6386 | 9.857 126 | Peter Huber Hose Connection Tubing, Metal NW20 M30x1.5, 150cm, 350°C Max Temp | NW 20 M30 x 1.5 | Metal | $2,234.02 | |||
6787 | 9.857 049 | Hose connection tubing, metal NW 12 M24x1.5, 300cm, 400°C max.temp. | NW 12 M24 x 1.5 | Metal | $3,269.72 | |||
6084 | 9.857 121 | Peter Huber Hose Connection Tubing Metal NW 12 M16x1, 100cm, 350°C Max Temp | NW 12 M16 x 1 | Metal | $1,086.03 | |||
9608 | 9.857 214 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 100cm, 200°C Max. Temp. | NW 12 M16 x 1 | Metal | $818.88 | |||
6655 | 9.857 129 | Peter Huber Hose Connection Tubing, Metal NW20 M38x1.5, 100cm, 350°C Max. Temp. | NW 25 M38 x 1.5 | Metal | $2,355.98 | |||
6427 | 9.857 127 | Peter Huber Hose Connection Tubing, Metal NW20 M30x1.5, 200cm, 350°C Max. Temp. | NW 20 M30 x 1.5 | Metal | $2,563.12 | |||
9609 | 9.857 215 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 150cm, 200°C Max Temp | NW 12 M16 x 1 | Metal | $1,000.86 | |||
9275 | 6.229 781 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 150cm, 350°C Max.Temp. | NW 12 M24 x 1.5 | Metal | $1,635.83 | |||
9277 | 9.857 220 | Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 300cm, 350°C Max Temp. | NW 12 M24 x 1.5 | Metal | $2,537.95 | |||
6255 | 9.857 124 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 300cm, 350°C Max. Temp. | NW 12 M16 x 1 | Metal | $1,624.21 | |||
9611 | 9.857 217 | Peter Huber Hose Connection Tubing, Metal NW 12 M16x1, 300cm, 200°C Max.Temp. | NW 12 M16 x 1 | Metal | $1,366.74 | |||
6658 | 9.857 132 | Peter Huber Hose Connection Tubing, Metal NW25 M38x1.5, 300cm, 350°C Max. Temp. | NW 25 M38 x 1.5 | Metal | $4,075.05 | |||
6428 | 9.857 128 | Peter Huber Hose Connection Tubing, Metal NW20 M30x1.5, 300cm, 350°C Max. Temp. | NW 20 M30 x 1.5 | Metal | $3,269.72 | |||
6657 | 9.857 131 | Peter Huber Hose Connection Tubing, Metal NW25 M38x1.5, 200cm, 350°C Max. Temp. | NW 25 M38 x 1.5 | Metal | $3,440.08 | |||
9325 | 7.900 874 | Peter Huber Temperature Control Hose K-260-1-M24x1.5 -60...260°C, 100cm, Plastic, with Braiding | NW 12 M24 x 1.5 | Plastic | $1,329.96 | |||
9326 | 6.254 865 | Peter Huber Hose Connection Tubing K-260-1,5-M24x1.5 Plastic, -60°+260°C, 150cm | NW 12 M24 x 1.5 | Plastic | $1,635.83 | |||
9612 | 6.261 514 | Peter Huber Hose Connection Tubing K-260-1-M30x1.5 Plastic, -60°+260°C, 100cm | NW 20 M30 x 1.5 | Plastic | $1,624.21 | |||
9613 | 6.258 999 | Peter Huber Hose Connection Tubing K-260-1.5-M30x1.5 Plastic, -60°+260°C, 150cm | NW 20 M30 x 1.5 | Plastic | $1,953.31 | |||
9614 | 7.671 774 | Peter Huber Hose Connection Tubing K-260-2-M30x1.5 Plastic, -60° to +260°C, 200cm | NW 20 M30 x 1.5 | Plastic | $2,257.25 | |||
9615 | 6.254 719 | Peter Huber Hose Connection Tubing K-260-3-M30x1.5 Plastic, -60°+260°C, 300cm | NW 20 M30 x 1.5 | Plastic | $2,929.00 | |||
9616 | 4.675 343 | Peter Huber Hose Connection Tubing K-260-1-M38x1.5 Plastic, -60° to +260°C, 100cm | NW 25 M38 x 1.5 | Plastic | $1,928.15 | |||
9617 | 4.675 344 | Peter Huber Hose Connection Tubing K-260-1.5-M38x1.5 Plastic, -60° to +260°C, 150 cm | NW 25 M38 x 1.5 | Plastic | $2,319.20 | |||
9618 | 6.269 871 | Peter Huber Hose Connection Tubing K-260-2-M38x1.5 Plastic, -60°+260°C, 200cm | NW 25 M38 x 1.5 | Plastic | $2,636.68 | |||
9619 | 4.675 345 | Peter Huber Hose Connection Tubing K-260-3-M38x1.5 Plastic, -60° to +260°C, 300cm | NW 25 M38 x 1.5 | Plastic | $3,343.28 |
