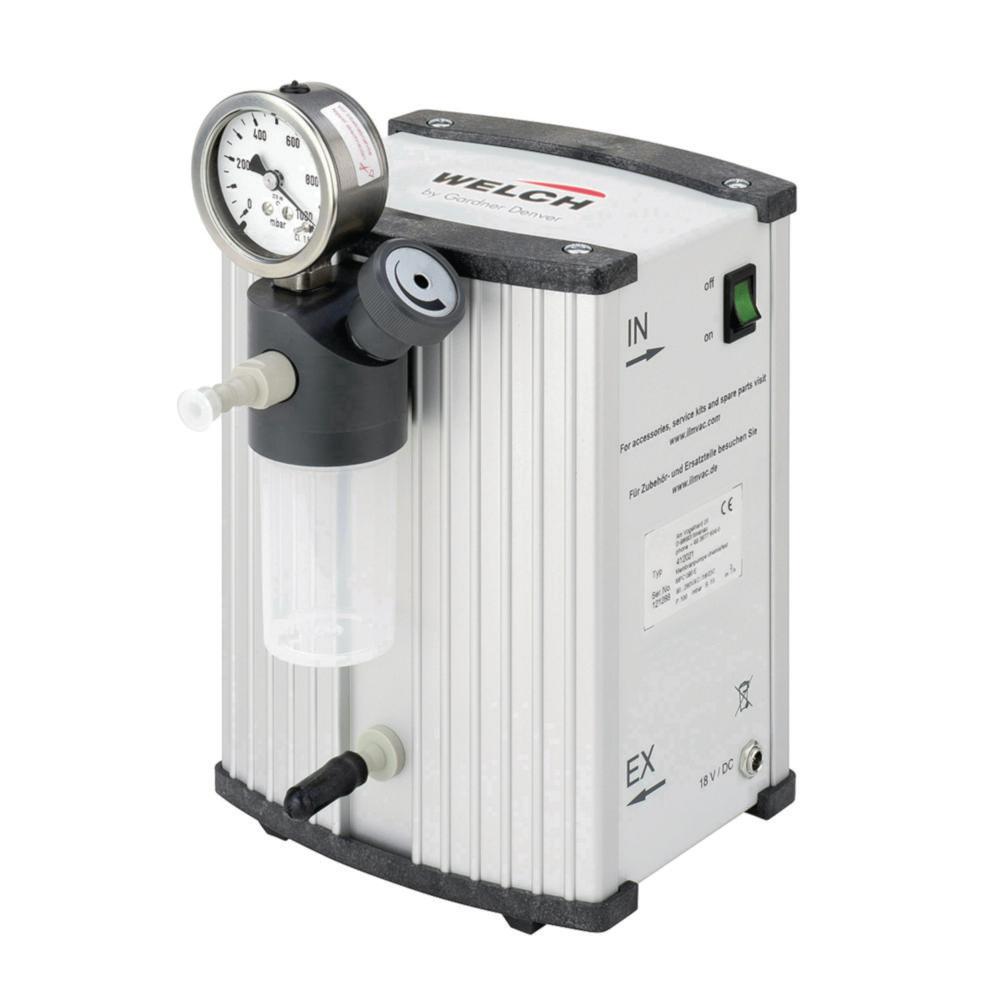

Pump MPC 090 E, 90...260 VAC / 19VDC, 100mbar, 15 l/min,
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 7.980 626Manufacturer #: 412021
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The MPC 090 E diaphragm pump has been specially developed for vacuum filtration and solid phase extraction (SPE) and is used for single funnel filtrations and with multiple filtration devices and desiccators. A built-in vacuum fine adjustment valve and pressure gauge allow variable adjustment of the applied vacuum, while the built in catch pot prevents accidental ingestion of liquid into the pump.
Scope of supply: Diaphragm pump, hose shaft DN 6, exhaust air damper, power adapter, connection adapter EU and UK
- Chemically resistant to the common aggressive solvent and acid vapours in laboratories
- All parts in contact with gas are made of PTFE or PTFE compounds
- The pump and connection heads are carbon fibre-reinforced and electrically conductive
- Clean vacuum generation due to 100 % oil-free operation
- Ultra quiet operation
- Maintenance-free
- Suitable for field use with optional adapter
Scope of supply: Diaphragm pump, hose shaft DN 6, exhaust air damper, power adapter, connection adapter EU and UK
Product Specifications
- HS Code #84141089
- Connection pressure sideDN 6
- Connection suction sideDN 6
- Depth198 mm
- Dimensions (WxDxH)144 x 198 x 244 mm
- Power supply frequency50/60 Hz
- Height244 mm
- IP codeIP 44
- Max. voltage260 V·AC
- Min. voltage90 V·AC
- Noise level45 db(A)
- Power supply90 ... 260 V·AC, 50/60 Hz
- TypeMPC 090 E
- Type of auxiliary energyMains connection
- Ultimate vacuum100 mbar
- Weight2.7 kg
- Width144 mm
