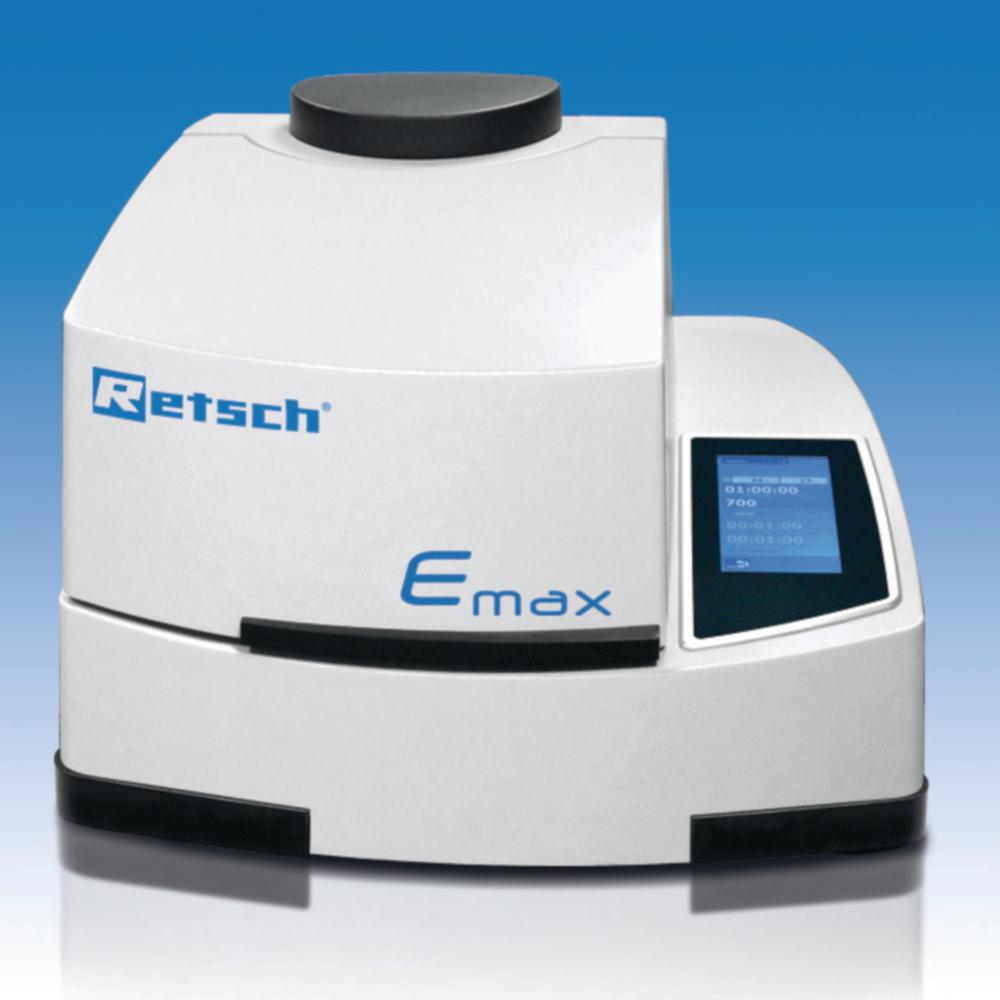

Retsch High-performance Ball Mill Emax for Max. 2 x 45ml, 200-240V / 50/60 Hz
Representative image only

Retsch High-performance Ball Mill Emax for Max. 2 x 45ml, 200-240V / 50/60 Hz

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.738 775Manufacturer #: 20.510.0001
Estimated shipping time:Contact us via live chat or via contact us page

$89,338.93

Product overview

The Retsch High-performance Ball Mill Emax is the ideal solution for fast and effective grinding of a wide range of materials. With a capacity of up to 2 x 45ml, this high-energy ball mill is capable of processing both hard and soft materials efficiently. It is designed to operate within the voltage range of 200-240V and supports a frequency of 50/60 Hz for versatile use worldwide.

Key Features:

  • Brand: Retsch
  • Maximum Capacity: 2 x 45ml for efficient sample preparation
  • Voltage: 200-240V for compatibility with global power standards
  • Frequency: 50/60 Hz, supporting both European and North American markets
  • Energy Efficiency: High-performance grinding with minimal heat generation
  • Applications: Ideal for laboratories, research facilities, and industrial applications requiring high-energy milling for fine particles

The Retsch Emax Ball Mill ensures fast, efficient, and uniform grinding, making it perfect for a wide variety of material types, from metals to plastics and even complex biological samples.

Product Specifications
  • HS Code #84742000
  • Depth645 mm
  • Dimensions (WxDxH)625 x 645 x 525 mm
  • Feed particle size5 mm
  • Feed quantity90 ml
  • Power supply frequency50/60 Hz
  • Height525 mm
  • IP codeIP 30
  • Max. feed particle size5 mm
  • Max. feed quantity90 ml
  • Max. final fineness80 nm
  • Max. speed2000 1/min
  • Max. voltage240 V
  • Min. speed300 1/min
  • Min. voltage200 V
  • No. of milling positions2
  • Plug typeEU
  • Power supply200 ... 240 V, 50/60 Hz
  • Rated capacity2600 W
  • Speed300 ... 2,000 1/min
  • TypeEmax
  • Type of auxiliary energyMains connection
  • Weight120 kg
  • Width625 mm
