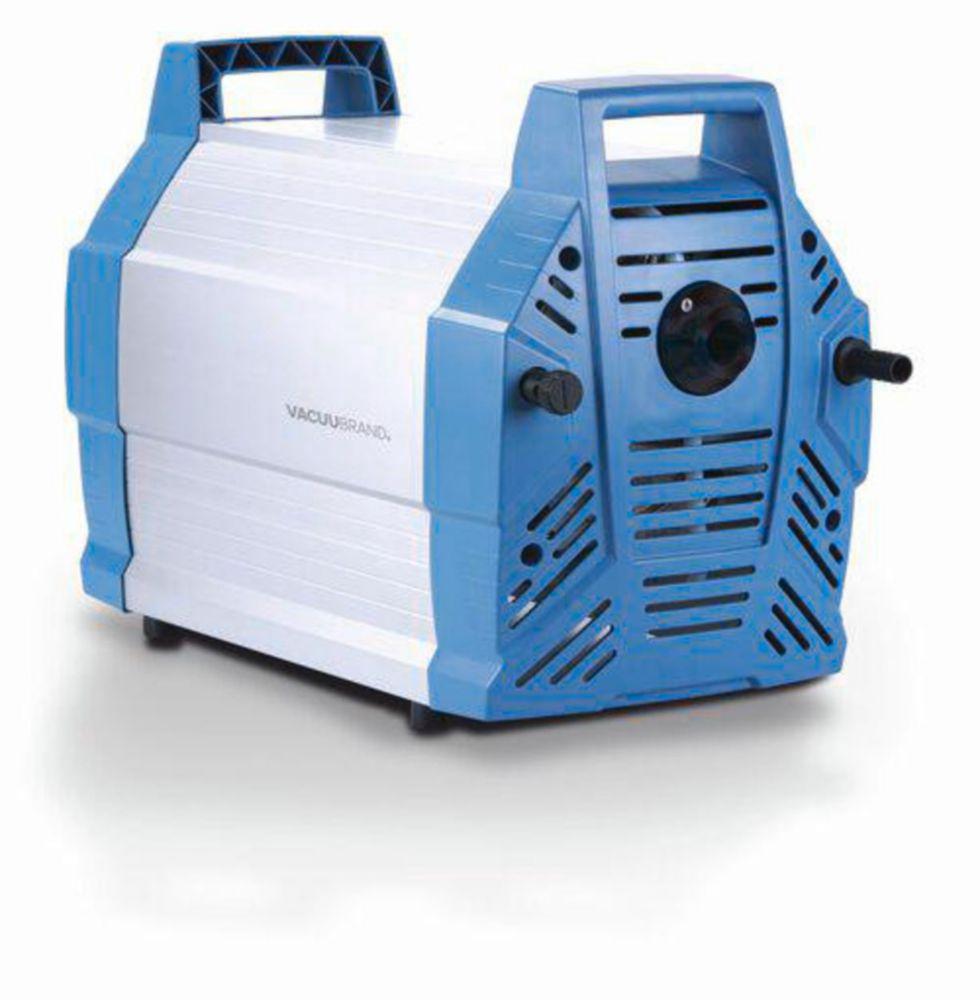

Vacuubrand Chemistry Membrane Pump MD 12C NT, Three-Stage, 230 V / 50–60 Hz, with CEE Mains Cable

The Vacuubrand MD 12C NT is a high-performance, three-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50–60 Hz, this pump comes equipped with a CEE mains cable for convenient integration into your laboratory infrastructure.

Key Features:

• Brand: Vacuubrand
• Type: Three-stage diaphragm pump for high-performance vacuum generation
• Voltage: 230 V
• Frequency: 50–60 Hz
• Plug Type: CEE mains cable for easy connection
• Ultimate Vacuum: 2 mbar (1.5 torr)
• Ultimate Vacuum with Gas Ballast: 4 mbar (3 torr)
• Max. Pumping Speed at 50 Hz: 12 m³/h
• Max. Pumping Speed at 60 Hz: 7.0 cfm
• Number of Heads: 8
• Number of Stages: 3
• Inlet Connection: Small flange KF DN 25
• Outlet Connection: Hose nozzle DN 15 mm
• Rated Motor Power: 0.53 kW
• Rated Motor Speed at 50/60 Hz: 1650 min⁻¹
• Protection Class (IEC 60529): IP 40
• Dimensions (L x W x H): 533 mm x 260 mm x 359 mm
• Weight: 28.1 kg
• Noise Level: 50 dBA
• ATEX Conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)

Note: An End User Declaration form must be completed after placing the order for this item.

This diaphragm pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. Its robust construction and high chemical resistance make it suitable for demanding environments.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Membrane Pump MD 12C NT, Three-Stage, 230 V / 50–60 Hz, with CEE Mains Cable used for?

It is a high-performance, three-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50–60 Hz, this pump comes equipped with a CEE mains cable for convenient integration into your laboratory infrastructure.

2. Is this product suitable for continuous, oil-free evacuation and pumping of corrosive gases and vapors in laboratory settings?

Yes. It is designed for continuous, oil-free evacuation and pumping of corrosive gases and vapors in laboratory settings, and offers a voltage of 230 V and a frequency of 50–60 Hz to support this kind of work.

3. What voltage and frequency does this product have?

It has a voltage of 230 V, a frequency of 50–60 Hz and an ultimate vacuum of 2 mbar (1.5 torr).

4. What type and plug type does this product offer?

It offers three-stage diaphragm pump for high-performance vacuum generation, CEE mains cable for easy connection, small flange KF DN 25 and hose nozzle DN 15 mm.
