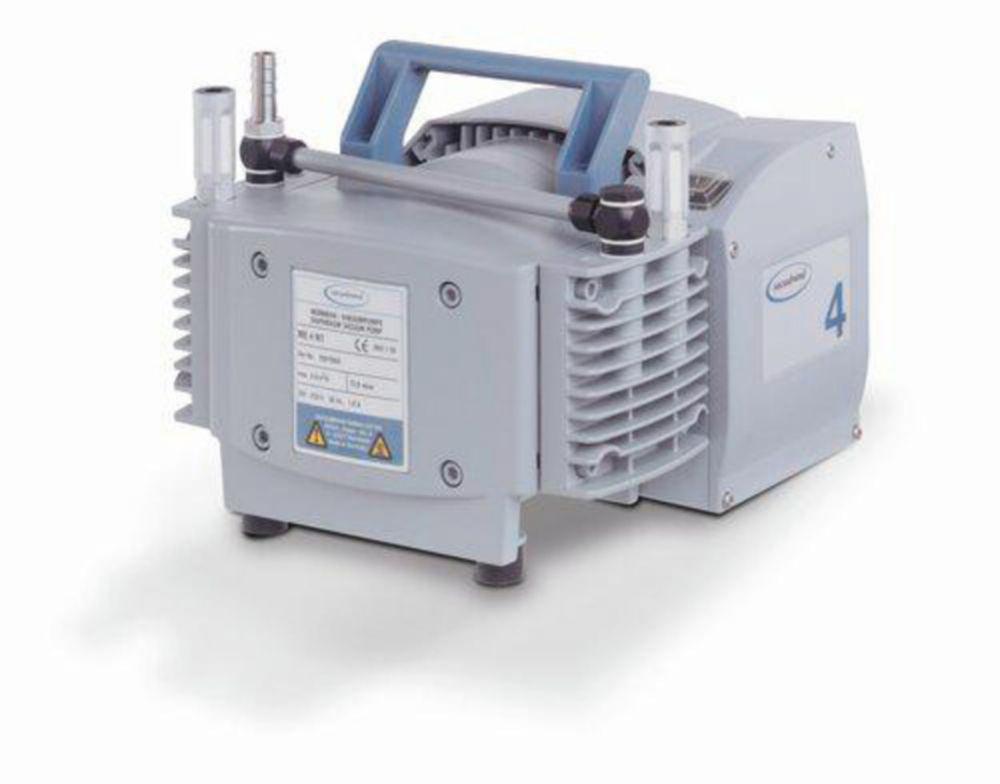

Vacuubrand Diaphragm Pump ME 4 NT, One Stage, NRTL Certified (C/US), 230V, 50/60 Hz, UK/IN Mains Cable
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.670 420Manufacturer #: 20731002
Estimated shipping time:Contact us via live chat or via contact us page
See the available (34) variant productsProduct overview
The Vacuubrand ME 4 NT Diaphragm Pump is a high-performance, oil-free vacuum pump designed for laboratory and industrial applications. Featuring a one-stage diaphragm construction, it offers a maximum pumping speed of 4 m³/h (2.6 cfm) at 60 Hz and an ultimate vacuum of 70 mbar (52 torr). Certified by NRTL (C/US), this model operates on 230V, 50/60 Hz power and is equipped with a UK/IN mains cable, making it suitable for use in the UK and India.
Key Features:
- Certification: NRTL (C/US) certified for safety and compliance.
- Voltage: 230V, 50/60 Hz, compatible with UK and Indian mains power.
- Design: One-stage diaphragm pump for efficient performance.
- Pumping Speed: 4 m³/h (2.6 cfm) at 60 Hz.
- Ultimate Vacuum: 70 mbar (52 torr).
- Applications: Ideal for laboratory and industrial vacuum applications requiring oil-free operation.
This diaphragm pump combines reliability, efficiency, and safety, making it an excellent choice for various applications in research and industry.
Product Specifications
- HS Code #84141089
- Connection pressure sideG1/4"
- Connection suction sideDN 8-10 mm
- Depth243 mm
- Dimensions (WxDxH)239 x 243 x 198 mm
- Flow rate2 m³/h
- Height198 mm
- No. of stages1
- Plug typeUK
- TypeME 4 NT
- Type of auxiliary energyMains connection
- Ultimate vacuum70 mbar
- Width239 mm
Vacuubrand Diaphragm Pump ME 4 NT, One Stage, NRTL Certified (C/US), 230V, 50/60 Hz, UK/IN Mains Cable
$4,176.49
Variant products
Products related to this item (34)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
20736000 | 9.880 890 | Vacuubrand Diaphragm Pump MD 4 NT, Three-Stage, 230 V, 50 Hz, Plug CEE | CEE | MD 4 NT | $7,805.31 | |||
20741002 | 9.880 953 | Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug
| UK | ME 16 NT | $14,141.29 | |||
20743002 | 9.880 950 | Vacuubrand Membrane Pump MD 12 NT Three-Step 230 V 50/60 Hz with UK Plug | UK | MD 12 NT | $14,533.11 | |||
20743000 | 9.880 949 | Vacuubrand Membrane Pump MD 12 NT, Three-Step, 230 V, 50-60 Hz with CEE Mains Cable | CEE | MD 12 NT | $14,533.11 | |||
20734001 | 9.880 886 | Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH | CH | ME 8 NT | $7,502.54 | |||
20734000 | 9.880 885 | Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with CEE Plug | CEE | ME 8 NT | $7,502.54 | |||
20732000 | 9.880 887 | Vacuubrand Diaphragm Pump MZ 2 NT, Two-Stage, 230 V, 50 Hz with CEE Plug | CEE | MZ 2 NT | $4,111.93 | |||
20738000 | 9.880 892 | Vacuubrand Diaphragm Pump MV 2 NT, Four-Stage, 230 V, 50 Hz with CEE Plug | CEE | MV 2 NT | $8,773.74 | |||
20730000 | 9.880 940 | Vacuubrand Membrane Pump ME 2 NT, 230 V, 50-60 Hz with CEE Plug | CEE | ME 2 NT | $3,012.15 | |||
20732200 | 9.880 889 | Vacuubrand Diaphragm Pump MZ 2D NT, Two-Stage, 230 V, 50 Hz with CEE Plug | CEE | MZ 2D NT | $5,238.42 | |||
20743001 | 9.880 951 | Vacuubrand Membrane Pump MD 12 NT, Three-Step, 230 V, 50-60 Hz with Swiss Plug | CH | MD 12 NT | $14,533.11 | |||
20731100 | 9.880 884 | Vacuubrand Diaphragm Pump ME 4R NT, One-Stage, 230 V, 50 Hz with CEE Plug | CEE | ME 4R NT | $5,133.79 | |||
20731000 | 9.880 883 | Vacuubrand Diaphragm Pump ME 4 NT, One-Stage, 230 V, 50 Hz with CEE Plug | CEE | ME 4 NT | $4,176.49 | |||
20736001 | 9.880 891 | Vacuubrand Diaphragm Pump MD 4 NT, Three-Stage, 230 V, 50 Hz with CH Plug | CH | MD 4 NT | $7,805.31 | |||
20738001 | 9.880 893 | Vacuubrand Diaphragm Pump MV 2 NT, Four-Stage, 230 V, 50 Hz with CH Plug | CH | MV 2 NT | $8,773.74 | |||
20744000 | 9.880 954 | Vacuubrand Diaphragm Pump MV 10 NT, Four-Stage, 230 V, 50/60 Hz with CEE Mains Cable
| CEE | MV 10 NT | $15,572.78 | |||
20741000 | 9.880 952 | Vacuubrand Diaphragm Pump ME 16 NT, One-Stage, 230 V, 50/60 Hz with CEE Mains Cable
| CEE | ME 16 NT | $14,141.29 | |||
20730003 | 9.880 942 | Vacuubrand Membrane Pump ME 2 NT, 100–115 V~ 50–60 Hz / 120 V~ 60 Hz with US Plug | US | ME 2 NT | $3,012.15 | |||
20730002 | 9.880 941 | Vacuubrand Membrane Pump ME 2 NT, 230 V, 50–60 Hz with UK Plug
| UK | ME 2 NT | $3,012.15 | |||
20732001 | 9.880 888 | Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug
| CH | MZ 2 NT | $4,111.93 | |||
20731102 | 4.670 423 | Vacuubrand Diaphragm Pump ME 4R NT, One Stage, NRTL Certified (C/US), 230V, 50/60 Hz, UK/IN Mains Cable
| UK | ME 4R NT | $5,133.79 | |||
20734002 | 4.670 483 | Vacuubrand Diaphragm Pump ME 8 NT One Stage, Certification (NRTL): C/US, 230 V / 50-60 Hz, UK/IN Mains Cable
| UK | ME 8 NT | $7,502.54 | |||
20732002 | 4.670 427 | Vacuubrand Diaphragm Pump MZ 2 NT Two Stage, Certification (NRTL): C/US, 230 V / 50-60 Hz, UK/IN Mains Cable
| UK | MZ 2 NT | $4,111.93 | |||
20732202 | 4.670 432 | Vacuubrand Diaphragm Pump MZ 2D NT Two-Stage, Certification (NRTL): C/US, 230 V / 50-60 Hz, UK/IN Mains Cable
| UK | MZ 2D NT | $5,238.42 | |||
20736002 | 4.670 487 | Vacuubrand Diaphragm Pump MD 4 NT Three-Stage, Certification (NRTL): C/US, 230 V / 50-60 Hz, UK/IN Mains Cable
| UK | MD 4 NT | $7,805.31 | |||
20736350 | 4.670 492 | Vacuubrand Diaphragm Pump MD 4 VARIO Select Three-Stage, 200–230 V / 50–60 Hz, CEE Mains Cable
| CEE | MD 4 VARIO select | $15,472.60 | |||
20736351 | 4.670 493 | Vacuubrand Diaphragm Pump MD 4 VARIO Select Three-Stage, 200–230 V / 50–60 Hz, CH Mains Cable
| CH | MD 4 VARIO select | $15,472.60 | |||
20738002 | 4.670 548 | Vacuubrand Diaphragm Pump MV 2 NT Four-Stage, Certification (NRTL): C/US, 230 V / 50–60 Hz, UK/IN Mains Cable
| UK | MV 2 NT | $8,773.74 | |||
20738150 | 4.670 552 | Vacuubrand Diaphragm Pump MV 2 VARIO Select Four-Stage, 200–230 V / 50–60 Hz, CEE Mains Cable
| CEE | MV 2 VARIO select | $16,550.12 | |||
20738151 | 4.670 553 | Vacuubrand Diaphragm Pump MV 2 VARIO Select Four-Stage, 200–230 V / 50–60 Hz, CH Mains Cable
| CH | MV 2 VARIO select | $16,550.12 | |||
25744150 | 4.687 928 | Vacuubrand Diaphragm Pump MV 10 NT VARIO Select Four-Stage 200-230V / 50-60Hz, CEE Mains Cable | CEE | MV 10 NT VARIO select | $23,373.65 | |||
25744152 | 4.687 920 | Vacuubrand Diaphragm Pump MV 10 NT VARIO Select Four-Stage 200-230V / 50-60Hz, UK Mains Cable | UK | MV 10 NT VARIO select | $23,373.65 | |||
25743150 | 4.687 918 | Vacuubrand Diaphragm Pump MD 12 NT VARIO Select Three-Stage 200-230 V / 50-60 Hz, CEE Mains Cable
| CEE | MD 12 NT VARIO select | $22,416.35 | |||
25744151 | 4.687 919 | Vacuubrand Diaphragm Pump MV 10 NT VARIO Select Four-Stage 200-230 V / 50-60 Hz, CH Mains Cable
| CH | MV 10 NT VARIO select | $23,373.65 |
