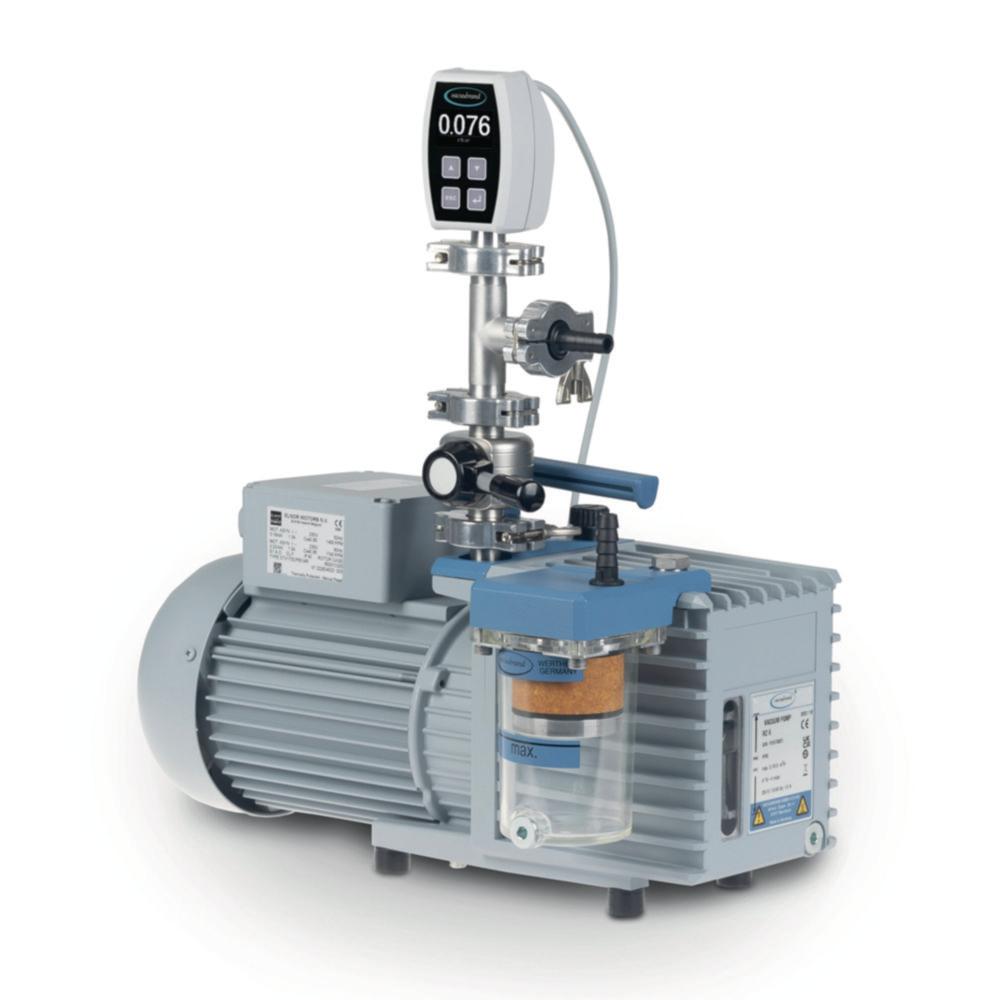

Vacuubrand Rotary Vane Pump Package RZ 6, with Oil Mist Filter, Butterfly Valve VS 16, and Vacuum Gauge VACUU·VIEW Extended, 230 V/50–60 Hz, CH Mains
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.691 561Manufacturer #: 20798161
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Vacuubrand Rotary Vane Pump Package RZ 6 is a comprehensive solution designed for efficient and reliable vacuum applications in laboratory settings. This package includes the robust two-stage RZ 6 rotary vane pump, an oil mist filter FO, butterfly valve VS 16, and the VACUU·VIEW extended vacuum gauge, all configured for 230 V/50–60 Hz with CH mains compatibility.
Key Features:
- Brand: Vacuubrand
- Pumping Speed: 5.7 m³/h at 50 Hz
- Ultimate Vacuum: 2 x 10−3 mbar
- Noise Level: 50 dBA
- Weight: 17.8 kg
- Dimensions (H): 240 mm
- Included Components: RZ 6 pump, oil mist filter FO, butterfly valve VS 16, VACUU·VIEW extended gauge
- Applications: Ideal for laboratory and process applications requiring low ultimate vacuum at medium to increased gas flow rates
This package offers a compact and lightweight design, making it an excellent choice for various laboratory vacuum applications.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth420 mm
- Dimensions (WxDxH)230 x 420 x 240 mm
- Flow rate95 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level50 db(A)
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Rated capacity180 W
- TypeRZ 6+FO+VS 16+VACUU·VIEW extended
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight17.8 kg
- Width230 mm
