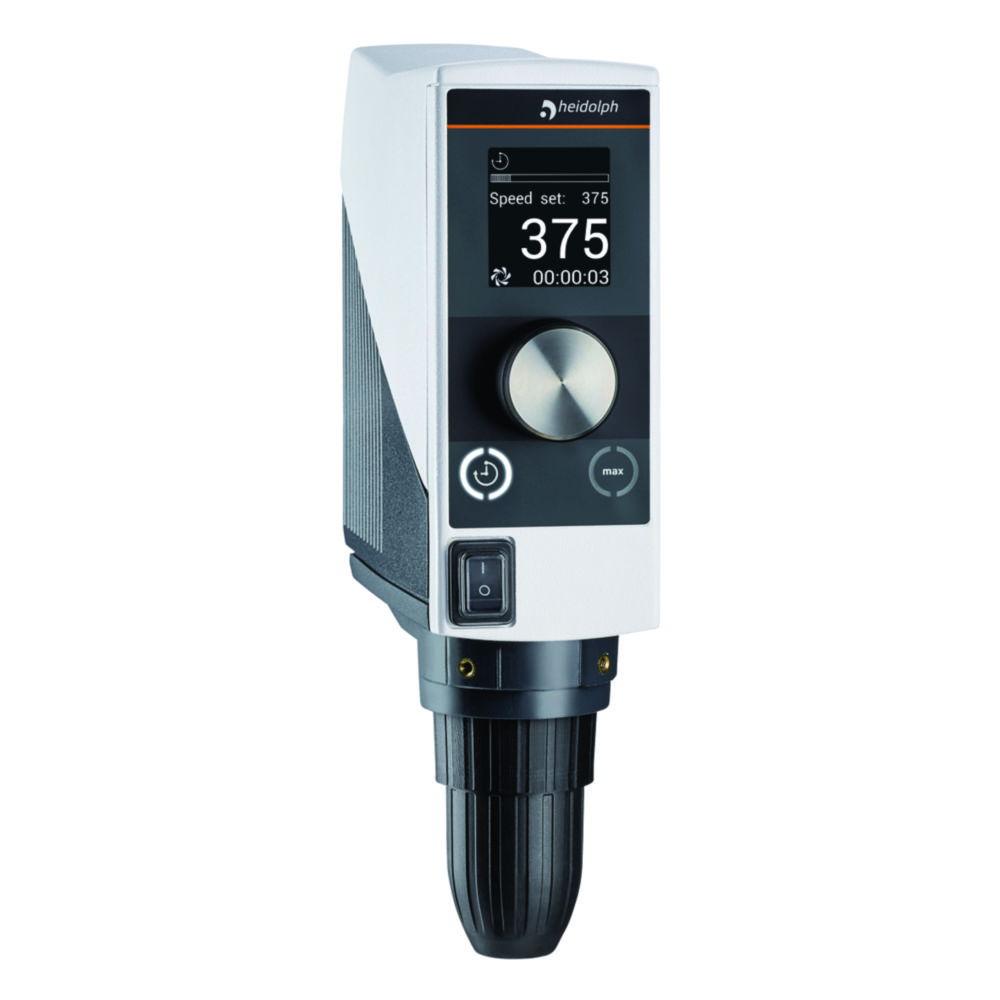

Heidolph Overhead Stirrer Hei-TORQUE Core-CH, Max. Torque: 40 Ncm, Viscosity 10,000m Pa s, Volume 25L, 20 - 2.000 rpm, 70x195x281.5mm

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.812 679Manufacturer #: 501-60410-04
Estimated shipping time:Contact us via live chat or via contact us page
See the available (3) variant products
Product overview

The Heidolph Overhead Stirrer Hei-TORQUE Core-CH is designed for high-performance mixing in laboratory environments. Featuring a maximum torque of 40 Ncm and a viscosity range of up to 10,000 mPa·s, this stirrer is capable of handling even the most demanding applications. With a volume capacity of up to 25 liters and a speed range of 20 - 2.000 rpm, it is ideal for mixing large volumes of liquids with precision. The Hei-TORQUE Core-CH is engineered for reliability and durability, making it a perfect choice for industrial, research, and chemical laboratories.

Key Features:

  • Brand: Heidolph
  • Max Torque: 40 Ncm for efficient and consistent stirring
  • Viscosity Capacity: Suitable for liquids with viscosity up to 10,000 mPa·s
  • Volume Capacity: Handles volumes up to 25 liters for large-scale mixing
  • Speed Range: 20 - 2.000 rpm for precise control over mixing speed
  • Dimensions: 70x195x281.5mm, compact yet powerful design
  • Application: Ideal for research, industrial, and chemical laboratories

The Heidolph Overhead Stirrer Hei-TORQUE Core-CH is a powerful, durable, and reliable solution for laboratories that require high torque and precise stirring for large volumes and high-viscosity materials.

Product Specifications
  • HS Code #84798200
  • Clamping range0.5 ... 10.5 mm
  • Depth195 mm
  • Dimensions (WxDxH)70 x 195 x 282 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height282 mm
  • IP codeIP 42
  • Max. clamping width10.5 mm
  • Max. speed2000 1/min
  • Max. stirring capacity25 l
  • Max. torque65 Ncm
  • Max. Viscosity10000 mPa·s
  • Max. voltage240 V
  • Min. clamping width0.5 mm
  • Min. speed20 1/min
  • Min. voltage100 V
  • Plug typeCH
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity105 W
  • Speed20 ... 2,000 1/min
  • TypeHei-TORQUE Core
  • Type of auxiliary energyMains connection
  • Weight2.3 kg
  • Width70 mm
  • With timerYes
  • Manufacturer Article Number501-60410-04
