Representative image only

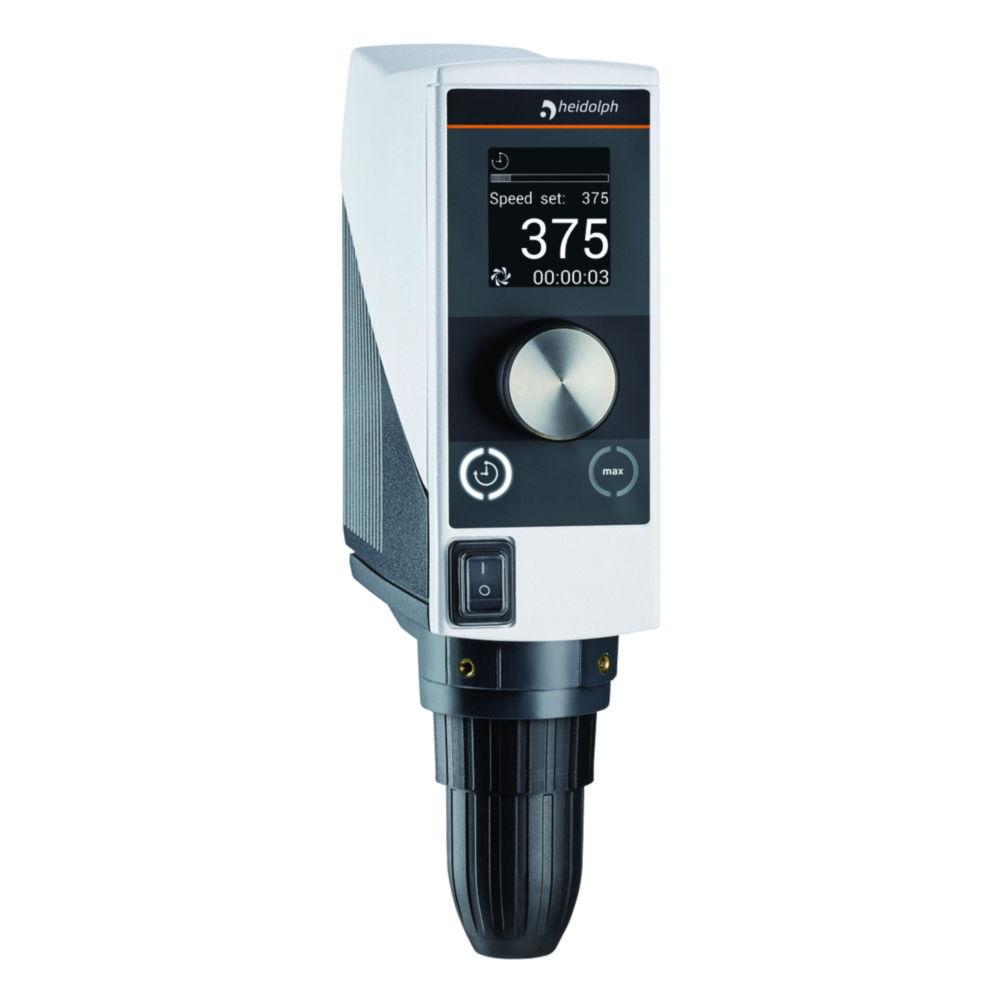

Heidolph Overhead Stirrer Hei-TORQUE Core-US, Max. Torque: 40 Ncm, Viscosity 10,000m Pa s, Volume 25L, 20 - 2.000 rpm, 70x195x281.5mm

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.322 497Manufacturer #: 501-60410-01
Estimated shipping time:Contact us via live chat or via contact us page
See the available (3) variant products
Product overview

The Heidolph Overhead Stirrer Hei-TORQUE Core-US is a high-performance mixing solution for laboratory applications. With a maximum torque of 40 Ncm and capable of handling viscosities up to 10,000 mPa·s, this stirrer ensures efficient and consistent mixing. It is designed to handle volumes of up to 25 liters and offers a speed range of 20 - 2.000 rpm, providing precise control for a wide variety of mixing tasks. Ideal for use in research, industrial, and chemical laboratories, the Hei-TORQUE Core-US is built to offer reliability and long-term durability in demanding environments.

Key Features:

  • Brand: Heidolph
  • Max Torque: 40 Ncm for powerful and consistent stirring performance
  • Viscosity Capacity: Capable of stirring materials with viscosity up to 10,000 mPa·s
  • Volume Capacity: Suitable for mixing volumes up to 25 liters
  • Speed Range: Offers a wide speed range from 20 - 2.000 rpm for precise control
  • Dimensions: 70x195x281.5mm, compact and space-efficient design
  • Application: Ideal for research, industrial, and chemical laboratory use

The Heidolph Overhead Stirrer Hei-TORQUE Core-US combines power, precision, and durability, making it an excellent choice for laboratories that require high torque and reliable mixing for large volumes and high-viscosity materials.

Product Specifications
  • HS Code #84798200
  • Clamping range0.5 ... 10.5 mm
  • Depth195 mm
  • Dimensions (WxDxH)70 x 195 x 282 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height282 mm
  • IP codeIP 42
  • Max. clamping width10.5 mm
  • Max. speed2000 1/min
  • Max. stirring capacity25 l
  • Max. torque65 Ncm
  • Max. Viscosity10000 mPa·s
  • Max. voltage240 V
  • Min. clamping width0.5 mm
  • Min. speed20 1/min
  • Min. voltage100 V
  • Plug typeUS
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity105 W
  • Speed20 ... 2,000 1/min
  • TypeHei-TORQUE Core
  • Type of auxiliary energyMains connection
  • Weight2.3 kg
  • Width70 mm
  • With timerYes
  • Manufacturer Article Number501-60410-01
Heidolph Overhead Stirrer Hei-TORQUE Core-US, Max. Torque: 40 Ncm, Viscosity 10,000m Pa s, Volume 25L, 20 - 2.000 rpm, 70x195x281.5mm
Heidolph Overhead Stirrer Hei-TORQUE Core-US, Max. Torque: 40 Ncm, Viscosity 10,000m Pa s, Volume 25L, 20 - 2.000 rpm, 70x195x281.5mm
$2,144.97
