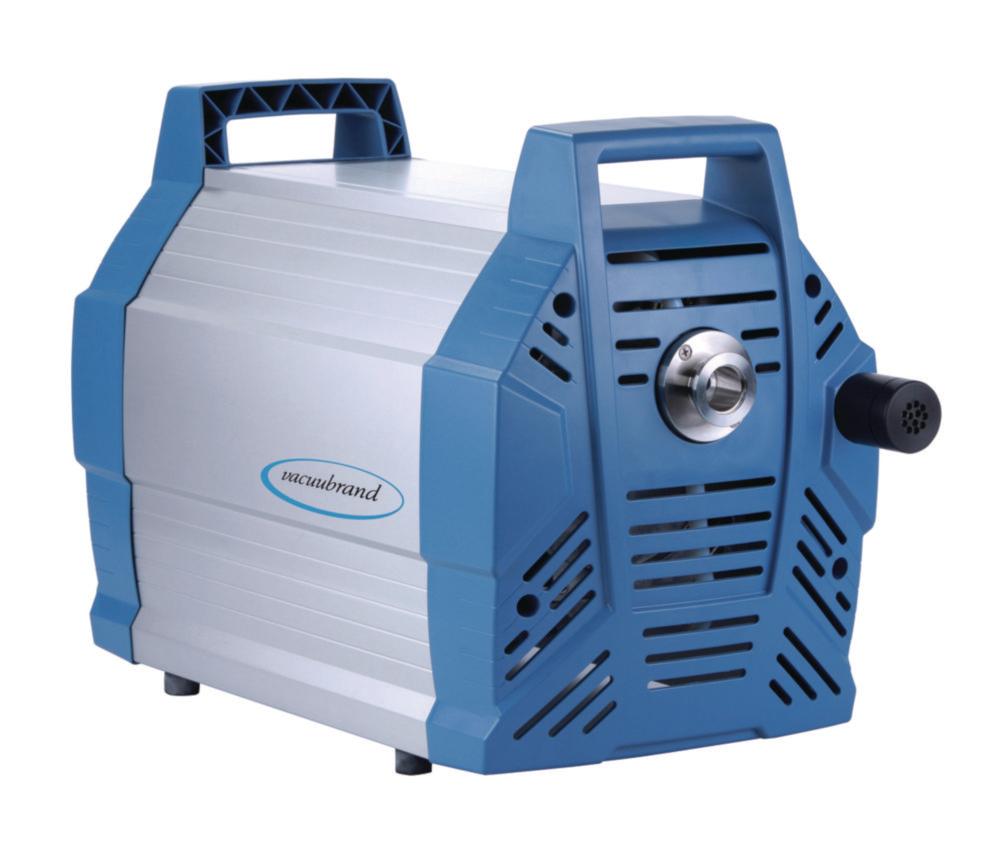

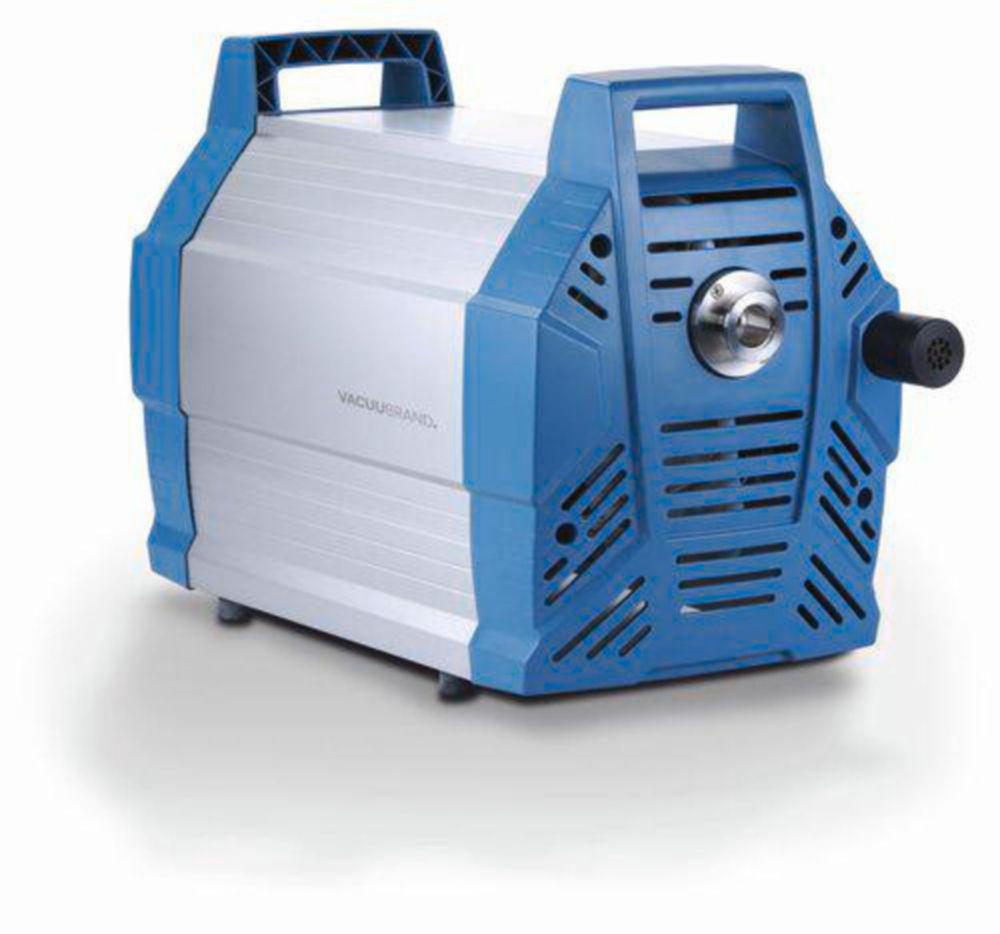

Vacuubrand Diaphragm Pump ME 16 NT, One-Stage, 230 V, 50/60 Hz with CEE Mains Cable
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.880 952Manufacturer #: 20741000
Estimated shipping time:Contact us via live chat or via contact us page
See the available (34) variant productsProduct overview
The Vacuubrand ME 16 NT is a high-capacity, oil-free diaphragm pump designed for continuous evacuation and pumping of non-corrosive gases. Its one-stage, eight-cylinder design delivers a maximum pumping speed of 16.4 m³/h at 50 Hz and achieves an ultimate vacuum of 70 mbar. The pump operates at 230 V, 50/60 Hz, and comes equipped with a CEE mains cable, ensuring compatibility with European power systems.
Key Features:
- Brand: Vacuubrand
- Type: Diaphragm pump
- Design: One-stage, eight-cylinder operation for efficient vacuum generation
- Voltage: 230 V, 50/60 Hz
- Cable Type: CEE mains cable for compatibility with European systems
- Maximum Pumping Speed: 16.4 m³/h at 50 Hz
- Ultimate Vacuum: 70 mbar
- Noise Level: 54 dBA
- Weight: 30.2 kg
- Applications: Vacuum ovens, filtration processes, general evacuation and pumping of non-corrosive gases
The ME 16 NT features a compact design with smooth, easy-to-clean surfaces and operates with low vibration and noise levels. Its oil-free operation ensures contamination-free pumping, making it an ideal choice for various laboratory applications.
Product Specifications
- HS Code #84141089
- Connection pressure sideG1/2"
- Connection suction sideKF DN 25
- Depth554 mm
- Dimensions (WxDxH)260 x 554 x 359 mm
- Flow rate16.4 m³/h
- Height359 mm
- No. of stages1
- Plug typeCEE
- TypeME 16 NT
- Type of auxiliary energyMains connection
- Ultimate vacuum70 mbar
- Width260 mm
Vacuubrand Diaphragm Pump ME 16 NT, One-Stage, 230 V, 50/60 Hz with CEE Mains Cable
$14,141.29
