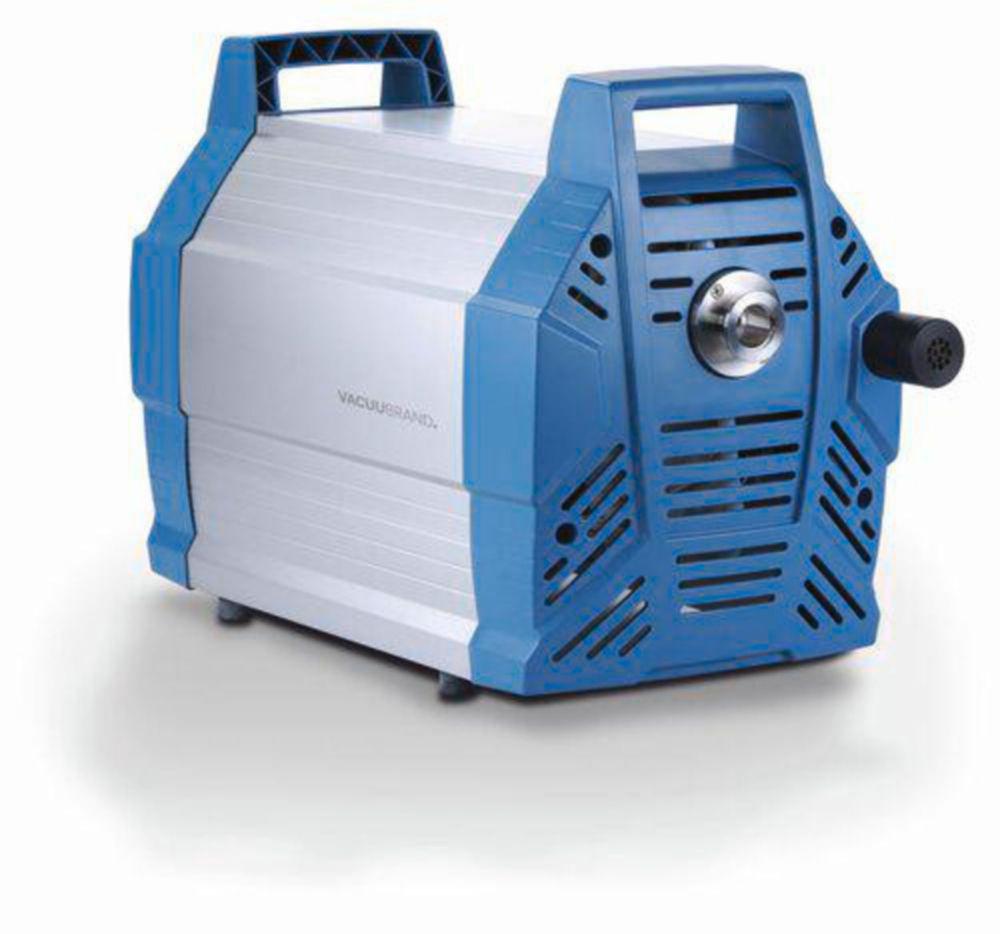

Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug

The Vacuubrand ME 16 NT is a high-capacity, single-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings. Operating at 230 V with a frequency of 50–60 Hz, this pump comes equipped with a UK plug for seamless integration into your laboratory infrastructure.

Key Features:

• Brand: Vacuubrand
• Type: Single-stage diaphragm pump for high-performance vacuum generation
• Voltage: 230 V
• Frequency: 50–60 Hz
• Plug Type: UK plug for easy connection
• Ultimate Vacuum: 70 mbar (53 torr)
• Max. Pumping Speed at 50 Hz: 16.4 m³/h
• Max. Pumping Speed at 60 Hz: 9.6 cfm
• Number of Heads: 8
• Number of Stages: 1
• Inlet Connection: Small flange KF DN 25
• Outlet Connection: G1/2"
• Rated Motor Power: 0.53 kW
• Rated Motor Speed at 50/60 Hz: 1650 min⁻¹
• Protection Class (IEC 60529): IP 40
• Dimensions (L x W x H): 554 mm x 260 mm x 359 mm
• Weight: 30.2 kg
• Noise Level: 54 dBA
• ATEX Conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)

This diaphragm pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. Its robust construction and high chemical resistance make it suitable for demanding environments.

Frequently Asked Questions

1. What is the Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug used for?

It is a high-capacity, single-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings. Operating at 230 V with a frequency of 50–60 Hz, this pump comes equipped with a UK plug for seamless integration into your laboratory infrastructure.

2. Is the Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug suitable for continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings?

Yes. It is designed for continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings, and offers a voltage of 230 V and a frequency of 50–60 Hz to support this kind of work.

3. What voltage and frequency does the Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug have?

It has a voltage of 230 V, a frequency of 50–60 Hz and an ultimate vacuum of 70 mbar (53 torr), and is supplied under manufacturer part number 20741002.

4. What type and plug type does the Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug offer?

It offers single-stage diaphragm pump for high-performance vacuum generation, UK plug for easy connection, small flange KF DN 25 and G1/2".

5. How does the Vacuubrand ME 16 NT Diaphragm Pump, Single-Stage, 230 V / 50–60 Hz, with UK Plug compare with the KNF LABOPORT Diaphragm Vacuum Pump U N816.3KT.18 US-Plug 115V/60HZ from KNF?

For continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings, the VACUUBRAND model is the better choice, offering a voltage of 230 V, a frequency of 50–60 Hz and an ultimate vacuum of 70 mbar (53 torr). The KNF model offers a voltage of 115V, 60Hz (US Plug) as an alternative, while the VACUUBRAND model's single-stage diaphragm pump for high-performance vacuum generation and UK plug for easy connection help make it a strong fit for continuous, oil-free evacuation and pumping of non-corrosive gases in laboratory settings.
