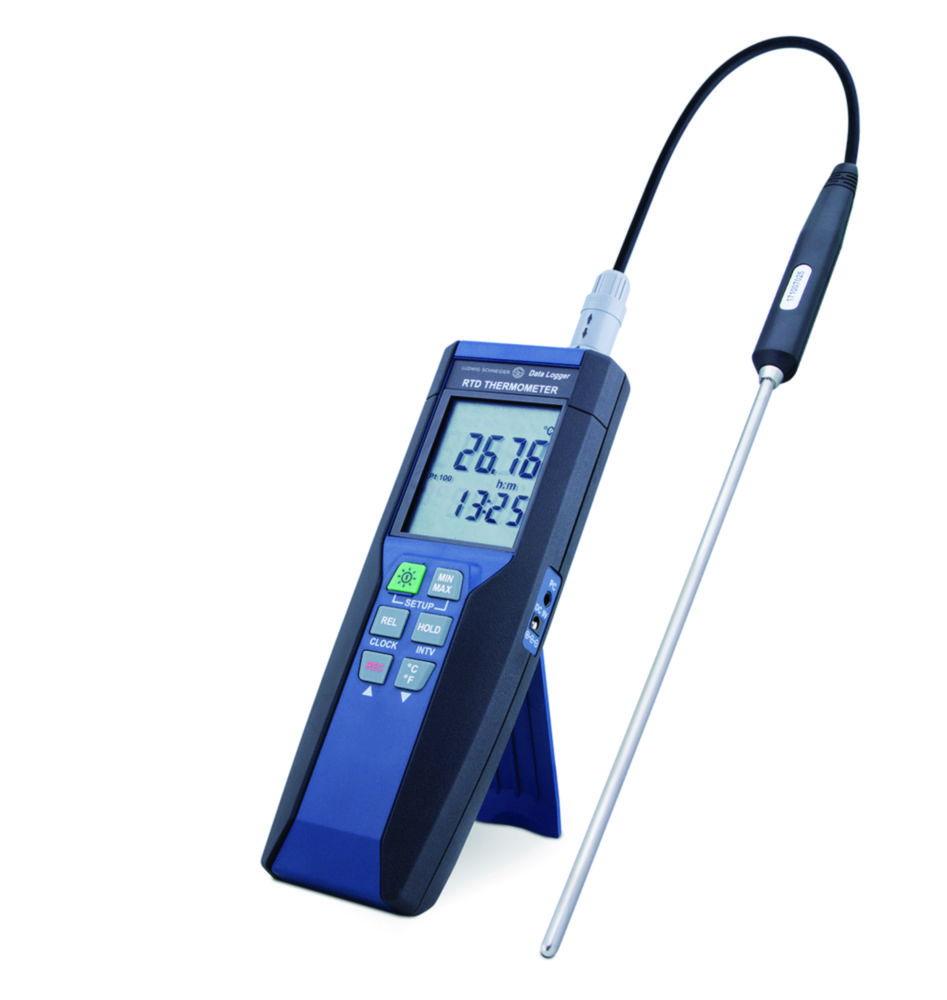

Ludwig Schneider Precision Hand-Held Measuring Instrument with Pt100 Data Logger Function, Type 13760, Measuring Range -100 to +400°C, Resolution 0.01°C
Representative image only

Ludwig Schneider Precision Hand-Held Measuring Instrument with Pt100 Data Logger Function, Type 13760, Measuring Range -100 to +400°C, Resolution 0.01°C

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.313 342Manufacturer #: 70541
Estimated shipping time:Contact us via live chat or via contact us page

$1,320.37

Product overview

The Ludwig Schneider Precision Hand-Held Measuring Instrument with Pt100 Data Logger Function (Type 13760) is designed for high-accuracy temperature measurements across a wide range of -100°C to +400°C. Featuring a high-resolution of 0.01°C, this portable instrument is ideal for precise and efficient temperature monitoring in laboratory, industrial, and field applications. The built-in data logger function ensures reliable data storage for further analysis.

Key Features:

  • Brand: Ludwig Schneider
  • Model: Type 13760
  • Temperature Range: -100°C to +400°C
  • Resolution: 0.01°C
  • Data Logger: Built-in data logger function for data storage
  • Application: Ideal for precise temperature measurement in various environments
  • Power: Battery-operated for convenience
  • °C / °F selection
  • Min / max memory
  • Freeze display
  • Calibration mode
  • Automatic switch-off
  • Relative measurement: saves last measured temperature and shows difference to most similar measurement
  • Display: date/time, backlit, battery status
  • Pt100 temperature sensor 4-wire, class A, IEC751 (replaceable)

Scope of Supply:

  • Thermometer
  • Pt100 temperature sensor
  • Carrying case
  • Power adapter

This high-performance hand-held instrument ensures accurate and efficient temperature logging for professional users in a wide range of applications.

Product Specifications
  • HS Code #90258040
  • Battery/rechargeable battery1 x 9 V
  • Cable length1.5 m
  • Depth65 mm
  • Sensor Ø5 mm
  • Dimensions (WxDxH)185 x 65 x 36 mm
  • Height36 mm
  • Length sensor230 mm
  • Max. temperature400 °C
  • Max. voltage battery/ rechargeable battery9 V
  • Max. voltage9 V·DC
  • Min. temperature-100 °C
  • No. of batteries/ rechargeable batteries1
  • Power supply9 V·DC
  • Sensor (ØxL)5 x 230 mm
  • Temperature-100 ... 400 °C
  • Type13760
  • Type of auxiliary energyBattery/mains connection
  • Type of probePt 100
  • Width185 mm
