Representative Image

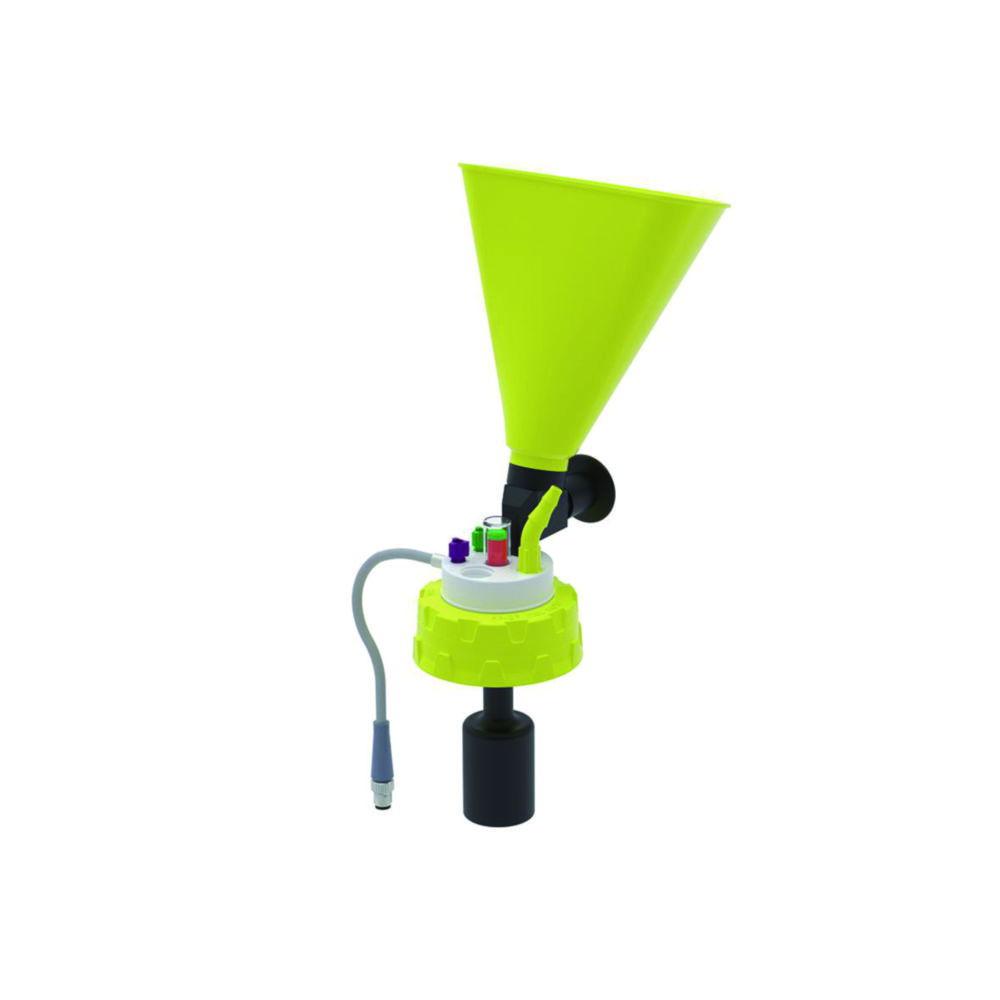

Bohlender b.safe Waste Cap S60 El. Fill-Level Control/Filling Funnel 2x UNF1/4", 1x GL14, 1x NPT1/8"

Brand:Bohlender

Specifications

HS Code #
39235090
Capillary connections
2
Connection for exhaust filter
1 x GL 14
Hose connections
1
Material
PP
No. of blind plugs
1
No. of fittings
2 x 1,6/ 2,2/ 3,2 mm
No. of olives
1
Thread
S 60
UNSPSC
41115700

$838.10

Inc. GST

Available soon

Product description

The Bohlender b.safe Waste Cap S60 El. Fill-Level Control/Filling Funnel is designed for safe and precise filling of containers in laboratory environments. This cap features multiple connections: 2x UNF1/4"", 1x GL14, and 1x NPT1/8"", providing flexibility and compatibility for various setups. It includes a free movable PTFE insert for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives suitable for tubing with I.D. 5.5 to 8 mm. The permanently mounted 400 mm cable allows connection to the b.safe display for electronic fill-level monitoring, while a red indicator pin enables visual fill-level checks. The integrated PP filling funnel has an automatic stopcock that opens by pushing the grip and closes automatically when released. A b.safe exhaust air filter can be screwed into the GL14 thread (filter not included).

Key Features:

  • Brand: Bohlender
  • Material: High-quality, durable construction with free movable PTFE insert
  • Compatibility: 2x UNF1/4"", 1x GL14, 1x NPT1/8"" connections
  • Fill-Level Control: Permanently mounted cable for b.safe display connection and red indicator pin for visual monitoring
  • Filling Funnel: PP funnel with automatic stopcock for safe and controlled filling
  • Application: Designed for safe, controlled waste disposal and fill-level monitoring
  • Packaging: Sold individually

Scope of Supply:

  • Fittings (UNF 1/4"")
  • Blind fitting (UNF 1/4"")
  • Hose olive (NPT 1/8"")
  • Filling funnel with automatic stopcock

This Bohlender b.safe Waste Cap ensures your laboratory’s waste management is both efficient and secure, offering a reliable solution for fill-level monitoring and controlled funnel filling.

Downloads

Frequently asked questions

It is designed for safe and precise filling of containers in laboratory environments. This cap features multiple connections: 2x UNF1/4", 1x GL14, and 1x NPT1/8", providing flexibility and compatibility for various setups. It includes a free movable PTFE insert for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives suitable for tubing with I.D. 5.5 to 8 mm. The permanently mounted 400 mm cable allows connection to the b.safe display for electronic fill-level monitoring, while a red indicator pin enables visual fill-level checks. The integrated PP filling funnel has an automatic stopcock that opens by pushing the grip and closes automatically when released. A b.safe exhaust air filter can be screwed into the GL14 thread (filter not included).
