Representative Image

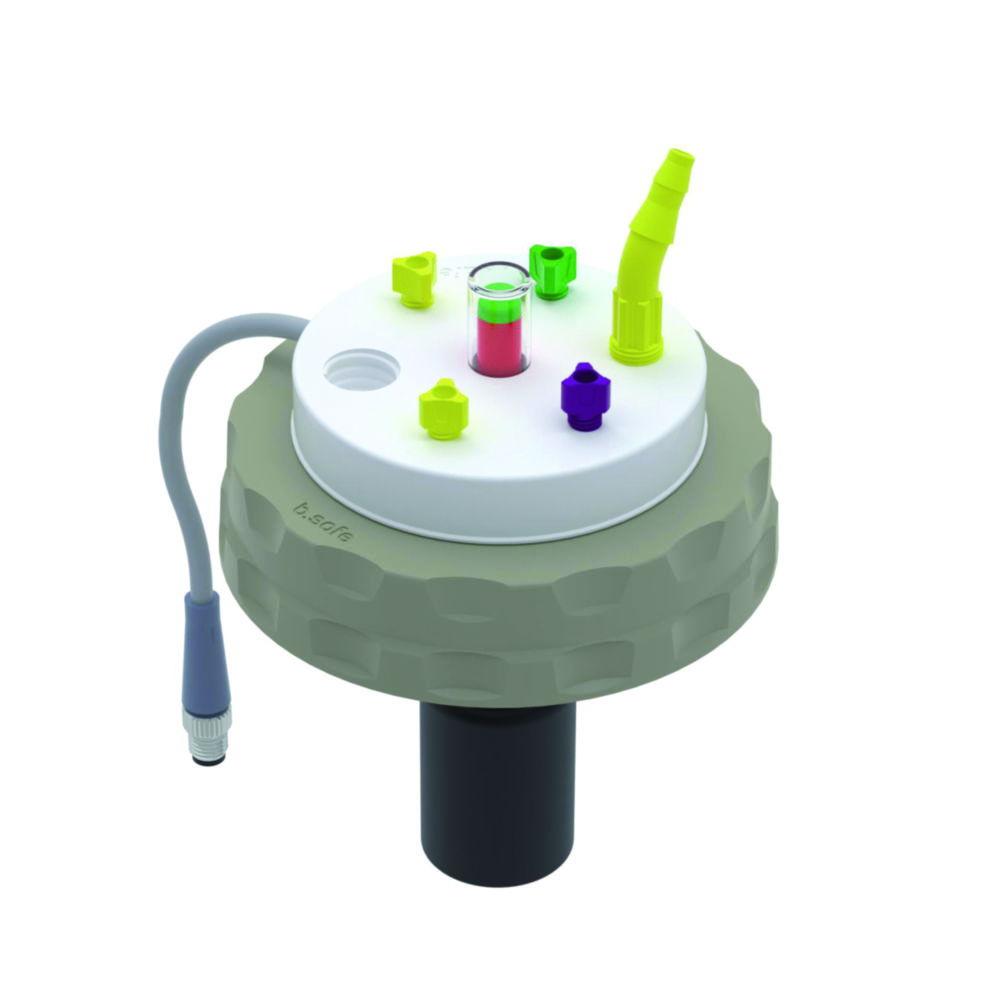

Bohlender b.safe Waste Cap S90 Electronic Fill-Level Control 4x UNF1/4", 1x GL14, 1x NPT1/8"

Brand:Bohlender

Specifications

Capillary connections
4
Connection for exhaust filter
1
Hose connections
1
Material
PE
No. of blind plugs
3
No. of fittings
4 x 1,6/ 2,2/ 3,2 mm
No. of olives
1
Thread
S 90
UNSPSC
41115700

$932.01

Inc. GST

Available soon

Product description

The Bohlender b.safe Waste Cap S90 Electronic Fill-Level Control is designed for use with hazardous waste containers, ensuring safe and efficient waste management. It features a freely movable PTFE insert for connecting capillaries with outer diameters of 1.6, 2.2, or 3.2 mm, and hose olives for tubing with inner diameters from 5.5 to 8 mm. The cap includes multiple connections—4x UNF 1/4"", 1x GL14 (for attaching a b.safe exhaust air filter, not included), and 1x NPT 1/8""—making it highly versatile and compatible with a wide range of containers. A permanently mounted 400 mm cable connects to the b.safe display for electronic fill-level monitoring, while a red indicator pin allows for visual level checks to reduce the risk of overfilling and ensure compliance with safety regulations in laboratories and industrial environments.

Key Features:

  • Brand: Bohlender
  • Application: Ideal for hazardous waste containers in laboratory and industrial environments
  • Fill-Level Control: Electronic monitoring via permanently mounted cable, plus visual red indicator pin
  • Connections: 4x UNF 1/4"", 1x GL14, 1x NPT 1/8""
  • Durability: Designed for reliable long-term use in demanding environments
  • Packaging: Sold individually

Scope of Supply:

  • Fittings (UNF 1/4“)
  • Blind fittings (UNF 1/4“)
  • Hose olive (NPT 1/8")

This electronic fill-level control waste cap is an essential safety component for laboratories and industrial operations handling hazardous waste, enabling efficient and compliant waste management.

Downloads

Accessories

Exhaust Filter, PP

ProductMaterialFilter sizeMfr#Part#AvailabilityPrice
PPSM 506-016.313 839In stock$217.94
PPMM 506-026.313 840In stock$295.90
PPLM 506-036.313 841In stock$379.18

Hose connectors for Waste Caps

ProductMaterialLengthMfr#Part#AvailabilityPrice
PP45 mmM 503-014.681 618$30.12
PTFE45 mmM 503-054.681 619$58.47
PP30 mmM 503-084.681 620$28.35
PP32 mmM 503-094.681 621$24.81
PP23 mmM 503-104.681 622$24.81
PP26 mmM 503-114.681 623$24.81
PP26 mmM 503-124.681 624$24.81
PP30 mmM 503-134.681 625$24.81
PP36 mmM 503-144.681 626$24.81
PTFE45 mmM 503-154.681 627$62.02
PP40 mmM 503-164.681 628$24.81
PP48 mmM 513-014.681 643$24.81
PP41 mmM 513-024.681 644$24.81
PP30 mmM 518-014.681 647$28.35

Frequently asked questions

It is designed for use with hazardous waste containers, ensuring safe and efficient waste management. It features a freely movable PTFE insert for connecting capillaries with outer diameters of 1.6, 2.2, or 3.2 mm, and hose olives for tubing with inner diameters from 5.5 to 8 mm. The cap includes multiple connections, 4x UNF 1/4", 1x GL14 (for attaching a b.safe exhaust air filter, not included), and 1x NPT 1/8", making it highly versatile and compatible with a wide range of containers. A permanently mounted 400 mm cable connects to the b.safe display for electronic fill-level monitoring, while a red indicator pin allows for visual level checks to reduce the risk of overfilling and ensure compliance with safety regulations in laboratories and industrial environments.
