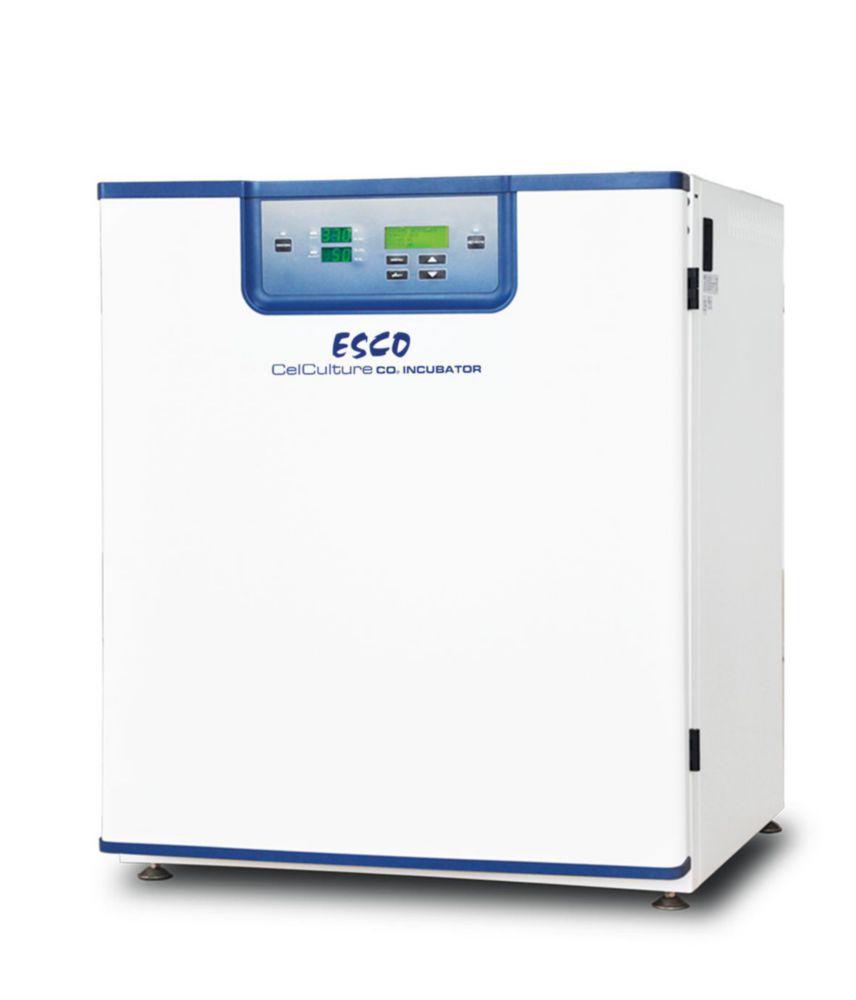

ESCO CelCulture Incubator CCL-170B-8-NF-HHS, 170 L, IR Sensor, CO₂ Control, No ULPA Filter, 180°C High Heat Sterilization
Representative image only

ESCO CelCulture Incubator CCL-170B-8-NF-HHS, 170 L, IR Sensor, CO₂ Control, No ULPA Filter, 180°C High Heat Sterilization

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.678 088Manufacturer #: 2170298
Estimated shipping time:Contact us via live chat or via contact us page

$26,982.47

See the available (1) variant product
Product overview

The ESCO CelCulture Incubator CCL-170B-8-NF-HHS is a 170-liter capacity CO₂ incubator designed for advanced cell culture applications. It features an infrared (IR) CO₂ sensor for precise control, and a 180°C high heat sterilization cycle to ensure a contamination-free environment. This model does not include a ULPA filter, making it suitable for applications where such filtration is not required.

Key Features:

  • Brand: ESCO
  • Model: CCL-170B-8-NF-HHS
  • Capacity: 170 liters
  • CO₂ Control: Infrared (IR) sensor with a range of 0–19.5%
  • Sterilization: 180°C high heat cycle (12 hours) for effective decontamination
  • Temperature Range: Ambient +5°C to 60°C
  • Humidity Range: 85% to 90% relative humidity
  • Interior: Stainless steel chamber with rounded corners for easy cleaning
  • Power Supply: 220–240 V AC, 50/60 Hz
  • Dimensions (W x D x H): 660 x 660 x 905 mm
  • Weight: 120 kg

This incubator is ideal for applications in stem cell research, IVF, and other sensitive cell culture procedures requiring stringent contamination control and stable environmental conditions.

Product Specifications
  • HS Code #84192000
  • CO₂ range0 ... 19.5 %
  • Depth int.535 mm
  • Ext. dim. (WxDxH)660 x 660 x 905 mm
  • Ext. depth660 mm
  • Ext. height905 mm
  • Ext. width660 mm
  • Power supply frequency50/60 Hz
  • Height int.633 mm
  • Int. Dim. (WxDxH)505 x 535 x 633 mm
  • Int. width505 mm
  • Material interiorStainless steel
  • Max. CO₂19.5 %
  • Max. no. of inserts7
  • Max. relative humidity90 %
  • Max. temperature60 °C
  • Max. voltage240 V·AC
  • Min. CO₂0 %
  • Min. relative humidity85 %
  • Min. temperature+5 °C
  • Min. voltage220 V
  • Nominal capacity170 l
  • Power supply220 ... 240 V·AC, 50/60 Hz
  • Rated capacity1.3 kW
  • Relative humidity85 ... 90 %
  • TemperatureRT
  • TemperatureRT+5 ... 60 °C
  • TypeCCL-170B-8-NF-HHS
  • Type of auxiliary energyMains connection
  • Weight120 kg
