Representative Image

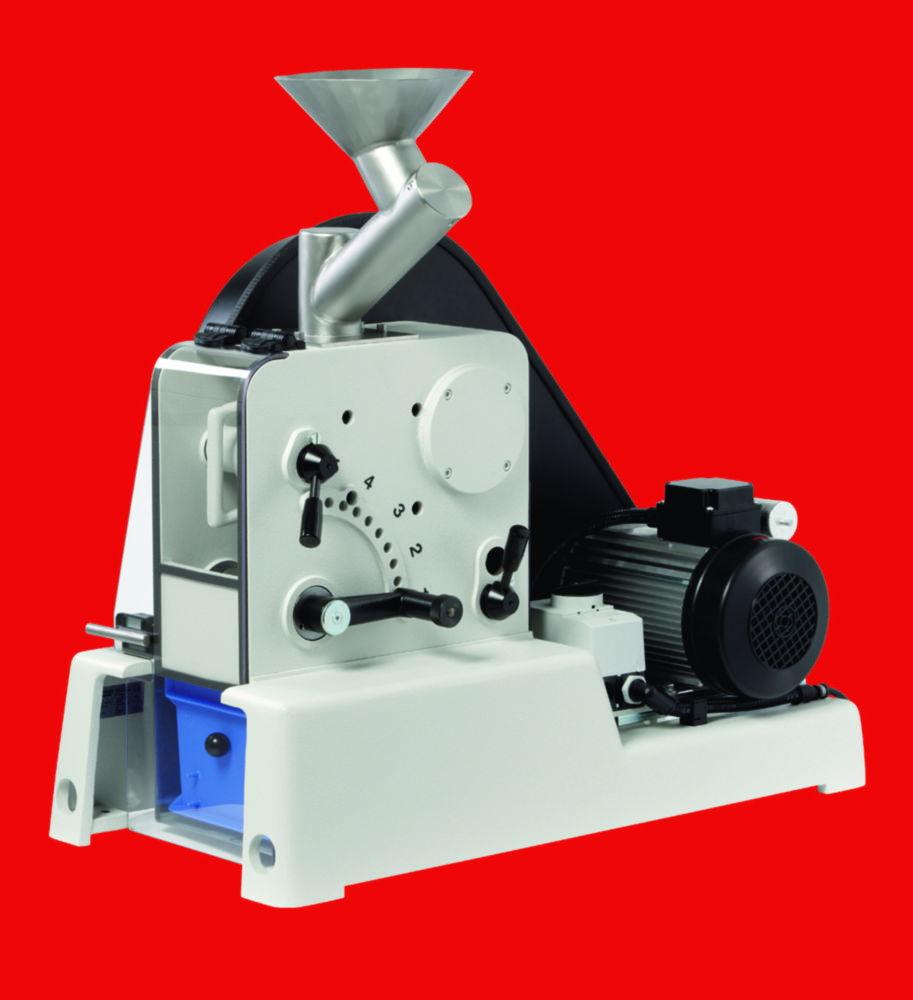

Fritsch Jaw Crushers 'Pulverisette 1', Jaw Width: 100x100 mm with Crushing Jaws and Support Wall Made of Hardened Tool Steel

Brand:Fritsch

Dimensions (WxDxH)

Max. feed particle size length

Max. feed particle size width

Max. throughput

Rated capacity

Type

Weight

Width

Specifications

Compare models
HS Code #
84798200
Depth
800 mm
Dimensions (WxDxH)
500 x 800 x 800 mm
Power supply frequency
50 Hz
Height
800 mm
IP code
IP 54
Material grinding tools
Steel, hardened
Max. feed particle size length
95 mm
Max. feed particle size width
95 mm
Max. final fineness
1 mm
Max. throughput
200 kg/h

$52,053.72

Inc. GST

Available soon

Product description

The Fritsch Jaw Crushers 'Pulverisette 1' with a jaw width of 100x100 mm are ideal for crushing hard and brittle materials in laboratory and industrial settings. Suitable for fast batchwise or continuous pre-crushing of very hard to medium-hard, brittle, and tough materials in fields such as mining and metallurgy, chemistry, geology and mineralogy, glass, ceramics, rocks, and soils. The final fineness can be easily adjusted externally with 10 different stages available. Equipped with high-quality, hardened tool steel crushing jaws and a durable support wall, this jaw crusher offers excellent performance in sample preparation. It ensures efficient and precise crushing of materials for further analysis, making it a vital tool for research and laboratory applications. Additional options are available including crushers with different voltages and crushing jaws/support walls made from stainless steel, chromium-free steel, hardmetal, tungsten carbide, zirconium oxide, and manganese steel.

Key Features:

  • Brand: Fritsch
  • Jaw Width: 100x100 mm for effective crushing
  • Material: Hardened tool steel for long-lasting durability
  • Application: Ideal for crushing hard and brittle materials in laboratory and industrial settings
  • Compatibility: Designed for use with Fritsch Pulverisette 1 crushers
  • Adjustable Fineness: Final fineness can be set externally with 10 stages
  • Suitable For: Mining, metallurgy, chemistry, geology, mineralogy, glass, ceramics, rocks, and soils

Scope of Supply:

  • Jaw crusher
  • Crushing jaws
  • Support walls made of tempered steel

This jaw crusher combines durability, precision, and versatility to meet the demanding needs of laboratory and industrial sample preparation. Its customizable options and robust construction make it a reliable choice for a wide range of crushing applications.

Downloads

Compare similar models

Jaw crushers "pulverisette 1",jaw width:100x100 mm with crushing jaws and support wall made of hardened tool steel

Manufacturer P/N

01.7030.00

Part Number

9.519 223

Manufacturer

Fritsch

Dimensions (WxDxH)

500 x 800 x 800 mm

Jaw crushers "pulverisette 1",jaw width:65x65 mm with crushing jaws and support walls made of hardened tool steel

Manufacturer P/N

01.5030.00

Part Number

9.519 213

Manufacturer

Fritsch

Dimensions (WxDxH)

400 x 800 x 800 mm
