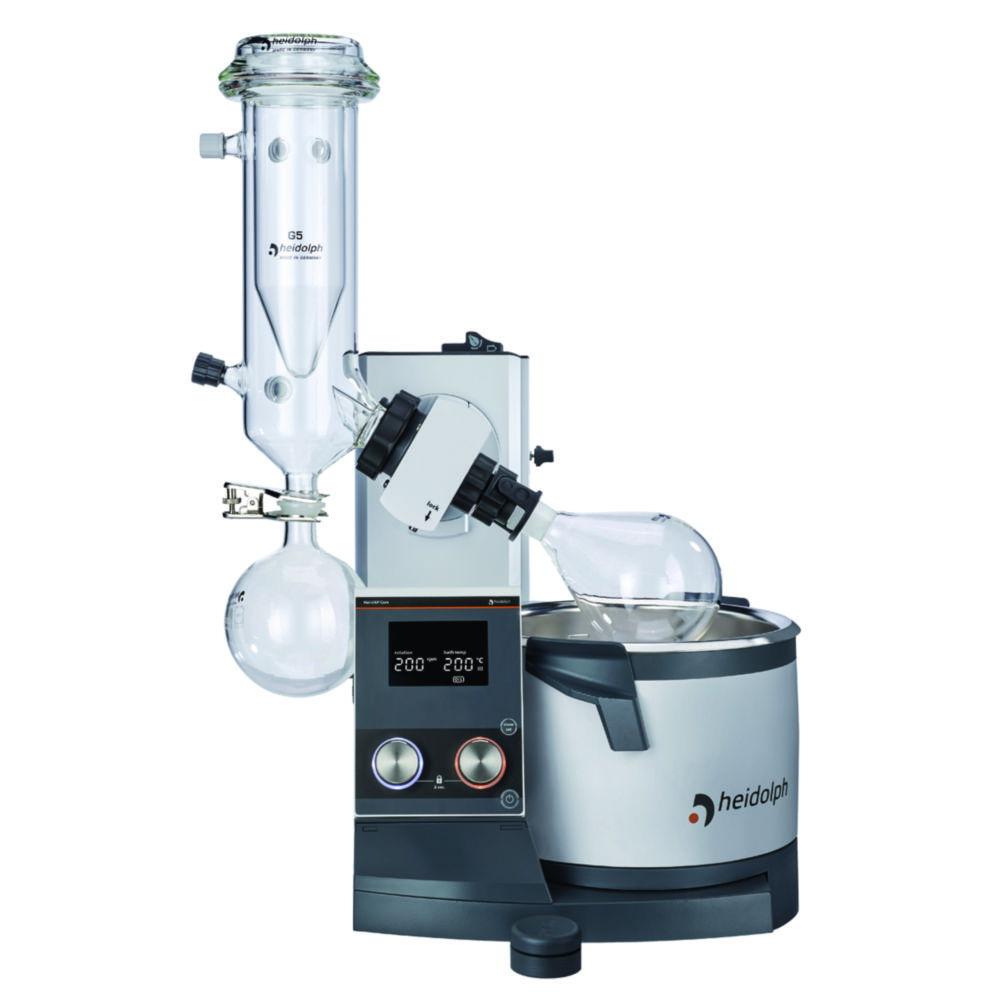

Heidolph Rotary Evaporator Hei-VAP Core HL G5-CH Hand Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$10,367.27

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G5-CH Hand Lift (CH-Plug) delivers manual precision and consistent performance for solvent evaporation tasks in laboratory environments. Featuring a reliable hand lift mechanism and CH-Plug compatibility, it is ideal for distillation, concentration, and solvent recovery applications. This model offers trusted Heidolph quality in a user-friendly, manually operated format suited for routine lab use.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G5-CH with hand lift (CH-Plug)
  • Display: Clear digital display for monitoring current values and separate button to display set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring light for activity indication
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Design: Ergonomically optimized heating bath handles for secure grip; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
  • Optional Features: Cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph rotary evaporator is a practical and efficient choice for laboratories requiring dependable manual evaporation solutions.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665$2,422.16

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core HL G5-CH hand lift (CH-Plug)

Manufacturer P/N

571-01500-04

Part Number

4.666 130

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5B hand lift (EU-Plug)

Manufacturer P/N

571-01510-00

Part Number

4.666 093

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01510-03

Part Number

4.666 115

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5-UK hand lift (UK-Plug)

Manufacturer P/N

571-01500-03

Part Number

4.666 110

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01510-04

Part Number

4.666 135

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5 hand lift (EU-Plug)

Manufacturer P/N

571-01500-00

Part Number

4.666 088

Manufacturer

Heidolph

Glassware

Without coating

Frequently asked questions

It delivers manual precision and consistent performance for solvent evaporation tasks in laboratory environments. Featuring a reliable hand lift mechanism and CH-Plug compatibility, it is ideal for distillation, concentration, and solvent recovery applications. This model offers trusted Heidolph quality in a user-friendly, manually operated format suited for routine lab use.
