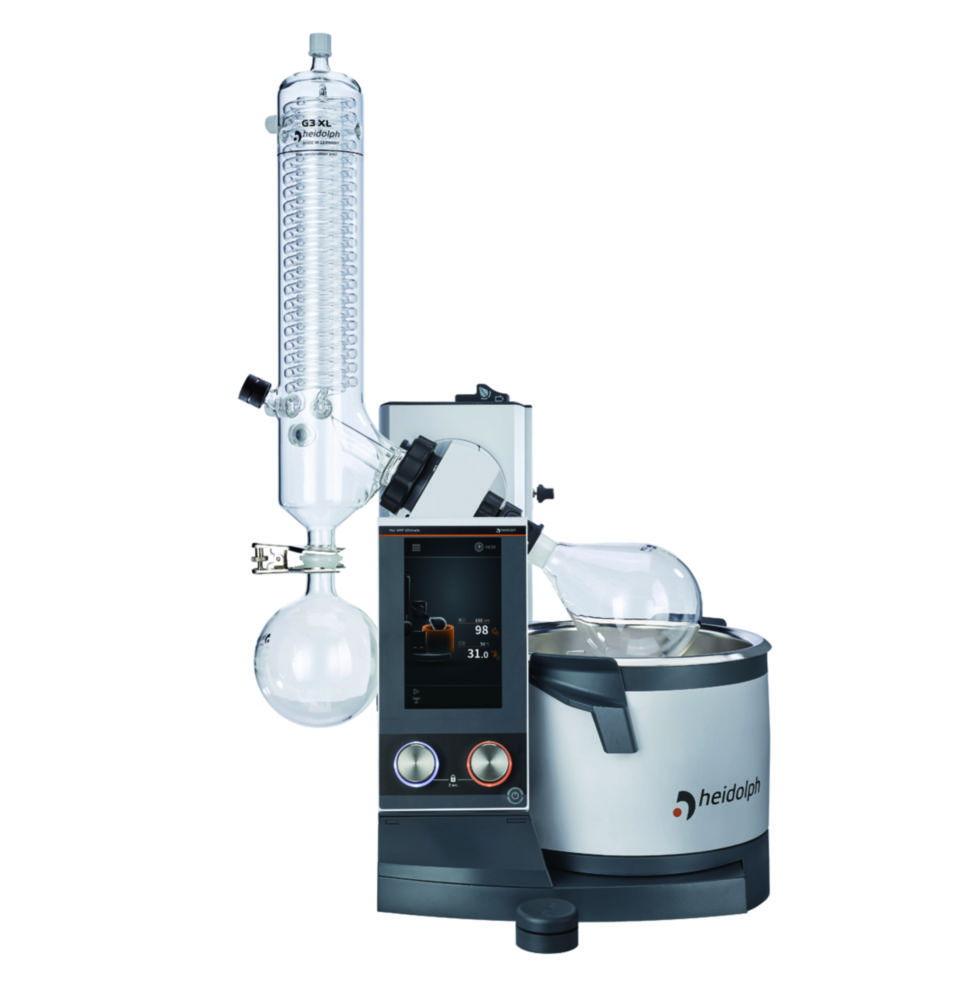

Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3 XL with Hand Lift
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.669 014Manufacturer #: 575-01305-00
Estimated shipping time:Contact us via live chat or via contact us page
See the available (9) variant productsProduct overview
The Heidolph Hei-VAP Ultimate HL/G3 XL with Hand Lift is designed for high-efficiency solvent evaporation in laboratory settings. Featuring a G3 XL vertical condenser with a 2200 cm² cooling surface and a manual hand lift for precise flask handling, this model ensures optimal performance and safety.
- Brand: Heidolph
- Model: Hei-VAP Ultimate HL/G3 XL with Hand Lift
- Glassware: G3 XL vertical condenser
- Cooling Surface: 2200 cm²
- Lift Type: Manual hand lift
- Control System: 7" touch display with USB, micro SD, LAN/RS 232 interfaces (Lab 4.0-ready)
- Rotation Speed: 10–280 rpm
- Heating Capacity: 1300 W
- Temperature Range: Ambient to 210 °C
- Heating Bath Volume: 4.5 L
- Max. Flask Size: 5 L
- Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
- Application: Suitable for chemical, pharmaceutical, and research laboratories
- Packaging: Complete unit sold individually
Enhance laboratory efficiency with the Heidolph Hei-VAP Ultimate HL/G3 XL—combining advanced features and user-friendly design for precise solvent evaporation.
Product Specifications
- HS Code #84194000
- DescriptionG3 XL Vertical condenser
- Glassware setstandard
- Cooling surface2200 cm²
- Max. speed280 1/min
- Max. temperature210 °C
- Max. voltage230 V
- Max. volume bath4.5 l
- Min. speed10 1/min
- Min. temperatureRT
- Plug typeEU
- Power supply230 V
- Speed10 ... 280 1/min
- TemperatureRT ... 210 °C
- Type of auxiliary energyMains connection
- Manufacturer Article Number575-01305-00
Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3 XL with Hand Lift
$11,830.01
Variant products
Products related to this item (9)
product | Mfr # | Part # | Product name | Plug type | Type of
auxiliary energy | Price | Availability | |
575-01310-00 | 4.669 018 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3B with Hand Lift, Plastic-Coated Glass Sets
| EU | Mains connection | $11,598.43 | |||
575-01300-00 | 4.669 013 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3 with Hand Lift
| EU | Mains connection | $11,182.38 | |||
575-01610-00 | 4.669 021 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G6B with Hand Lift, Plastic-Coated Glass Sets
| EU | Mains connection | $14,385.20 | |||
575-01315-00 | 4.669 019 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3B XL with Hand Lift, Plastic-Coated Glass Sets
| EU | Mains connection | $12,246.06 | |||
575-01100-00 | 4.669 012 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G1 with Hand Lift
| EU | Mains connection | $10,795.77 | |||
575-01600-00 | 4.669 016 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G6 with Hand Lift
| EU | Mains connection | $13,684.58 | |||
575-01110-00 | 4.669 017 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G1B with Hand Lift, Plastic-Coated Glass Sets
| EU | Mains connection | $11,243.22 | |||
575-01510-00 | 4.669 020 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G5B with Hand Lift, Plastic-Coated Glass Sets
| EU | Mains connection | $13,574.68 | |||
575-01500-00 | 4.669 015 | Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G5 with Hand Lift
| EU | Mains connection | $12,662.11 |
