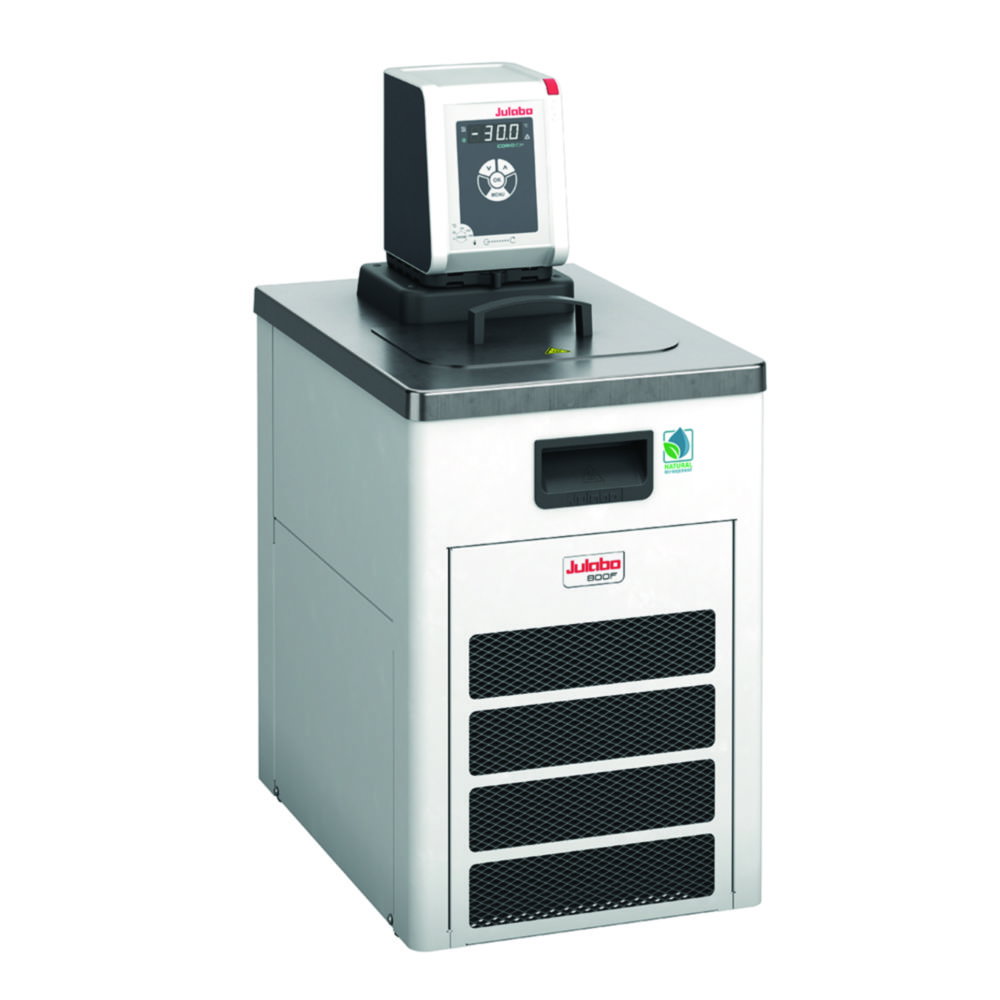

Julabo Refrigerated/Heating Circulator CORIO CP-800F With Natural Refrigerant, 200 To 230 V/50 To 60 Hz, Schuko CEE 7/4 Type F
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.523 727Manufacturer #: 9013715.N1.33
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Julabo Refrigerated/Heating Circulator CORIO CP-800F With Natural Refrigerant, 200 To 230 V/50 To 60 Hz, Schuko CEE 7/4 Type F is designed for precise internal and external temperature control in laboratory and industrial applications. With a working temperature range of -40°C to +200°C, natural refrigerant, strong cooling performance, and enhanced pump capacity, this refrigerated/heating circulator supports demanding temperature control workflows.
Key Features:
- Brand: Julabo
- Model: CORIO CP-800F
- Temperature Range: -40°C to +200°C
- Cooling Capacity: 0.84 kW at 20°C
- Heating Capacity: 2 kW
- Temperature Stability: ±0.03°C
- Bath Volume: 5 to 7.5 L
- Pump Flow Rate: 8 to 27 L/min
- Refrigerant: Natural refrigerant R1270
- Power Supply: 200 to 230 V, 50 to 60 Hz
- Plug Type: Schuko CEE 7/4 Type F
- Application: Suitable for precise refrigerated and heating temperature control applications
This Julabo CORIO CP-800F refrigerated/heating circulator is a dependable choice for laboratories requiring efficient cooling, reliable heating, strong pump performance, and stable temperature control.
Product Specifications
- HS Code #84198998
- Bath depth150 mm
- Cooling capacity at 20 °C0,84 kW
- Depth opening130 mm
- Opening (WxD)180 x 130 mm
- Ext. dim. (WxDxH)330 x 470 x 700 mm
- Ext. depth470 mm
- Ext. height700 mm
- Ext. width330 mm
- Power supply frequency50/60 Hz
- Heating capacity2 kW
- IP codeIP 21
- Material bathStainless steel
- Max. delivery pressure0.7 bar
- Max. temperature200 °C
- Max. voltage230 V
- Max. volume bath7.5 l
- Min. temperature-40 °C
- Min. voltage200 V
- Min. volume bath5 l
- Plug typeEU
- Power supply200 ... 230 V, 50/60 Hz
- RefrigerantR1270
- Temperature stability±0,03 °C
- Temperature-40 ... 200 °C
- TypeCP-800F
- Type of auxiliary energyMains connection
- Type of displayLED
- Volume bath5 ... 7.5 l
- Weight42 kg
- Width opening180 mm
- With lidYes
- With timerYes
