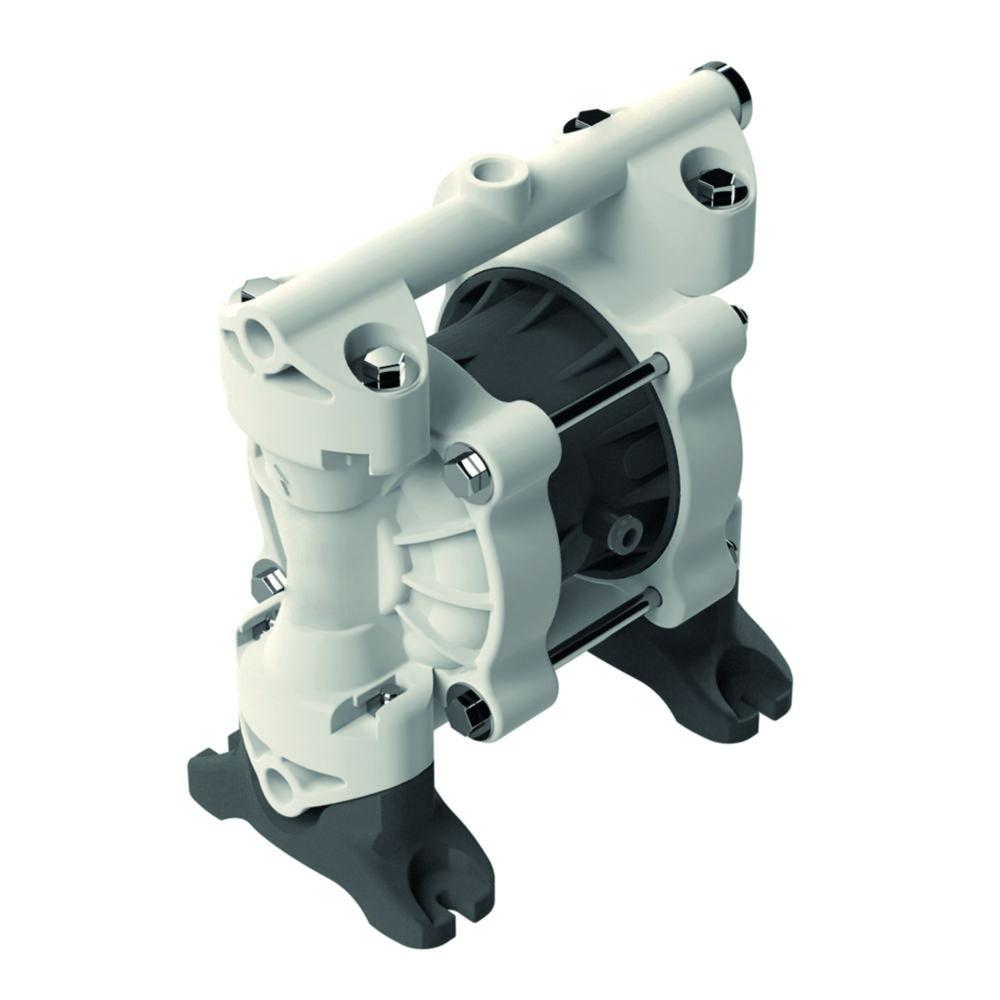

Representative image only
Lutz Double Diaphragm Pump 1/4" PPB PP/NBR
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.685 661Manufacturer #: 5200-040
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Lutz Double Diaphragm Pump 1/4" PPB PP/NBR is engineered for reliable transfer of a wide range of fluids including chemicals, slurries, and viscous media. Featuring a polypropylene body with NBR diaphragms, it offers excellent chemical resistance and robust performance.
Key Features:
- Brand: Lutz
- Type: Double Diaphragm Pump
- Connection Size: 1/4 inch
- Material: PPB (polypropylene blend) body
- Diaphragm Material: NBR (Nitrile Butadiene Rubber)
- Applications: Suitable for aggressive chemicals, slurries, and general-purpose fluid transfer
Compact and chemically resistant, the Lutz double diaphragm pump is ideal for use in laboratories, industrial settings, and process engineering applications.
Product Specifications
- HS Code #84135080
- Depth183 mm
- Dimensions (WxDxH)107 x 183 x 203 mm
- Flow rate21 l/min
- Height203 mm
- MaterialPP
- Material media contactNBR
- Max. operating pressure8 bar
- Max. suction height80 mWS
- TypeDMP 1/4'' PPB
- Type of auxiliary energyMains connection
- Weight1.5 kg
- Width107 mm
