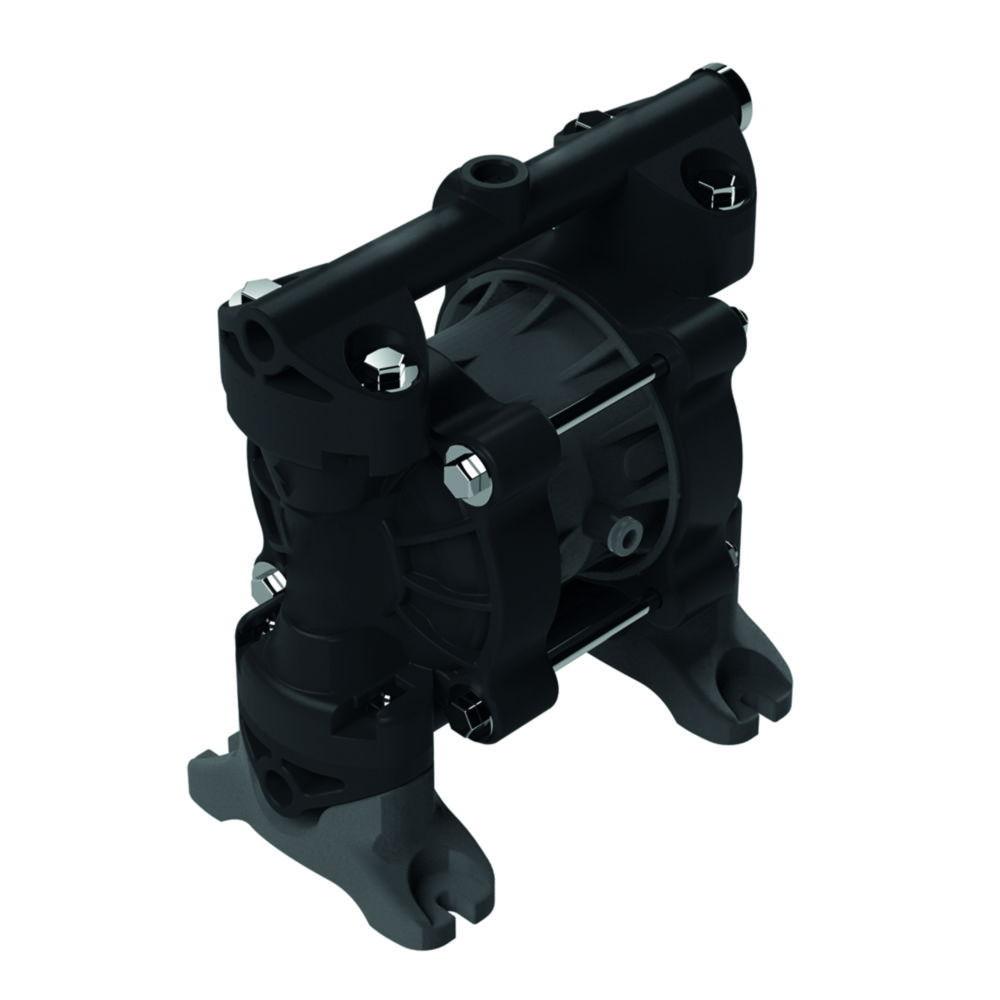

Lutz Double Diaphragm Pump 1/4" KNT PVDF/PTFE AL:2B350i

Brand:Lutz

Specifications

Depth
183 mm
Dimensions (WxDxH)
107 x 183 x 203 mm
Flow rate
21 l/min
Height
203 mm
Material
PVDF
Material media contact
TPV/TFM
Max. operating pressure
8 bar
Max. suction height
80 mWS
Type
DMP 1/4'' KNT
UNSPSC
41105102

$2,227.93

Inc. GST

Available soon

Product description

The Lutz Double Diaphragm Pump 1/4" KNT PVDF/PTFE AL:2B350i is a compact and chemically resistant pump designed for safe and efficient transfer of aggressive fluids. Constructed with PVDF and PTFE, it ensures long-lasting performance even in demanding environments.

Key Features:

  • Brand: Lutz
  • Model: AL:2B350i
  • Type: Double diaphragm pump
  • Connection Size: 1/4 inch
  • Materials: PVDF (housing), PTFE (diaphragms)
  • Application: Ideal for corrosive chemicals, acids, and industrial fluids
  • Design: Lightweight, reliable, and easy to maintain

Note: An End User Declaration form must be completed after placing the order for this item.

This Lutz KNT model is built to deliver reliable chemical transfer in compact setups, offering excellent resistance to a wide range of media.

Accessories

Air connection set for double diaphragm pumps DMP 1/4" series

ProductUNSPSCMfr#Part#AvailabilityPrice
411051025000-3006.322 830$58.47

More items to explore

Double diaphragm pumps DMP 1/4" PPT

ProductTypeMaterialMfr#Part#AvailabilityPrice
DMP 1/4'' PPTPP5200-0004.685 662$1,194.25

Double diaphragm pump DMP 1/4" PPB

ProductTypeMaterialMfr#Part#AvailabilityPrice
DMP 1/4'' PPBPP5200-0404.685 661$875.31

Frequently asked questions

It is a compact and chemically resistant pump designed for safe and efficient transfer of aggressive fluids. Constructed with PVDF and PTFE, it ensures long-lasting performance even in demanding environments.
