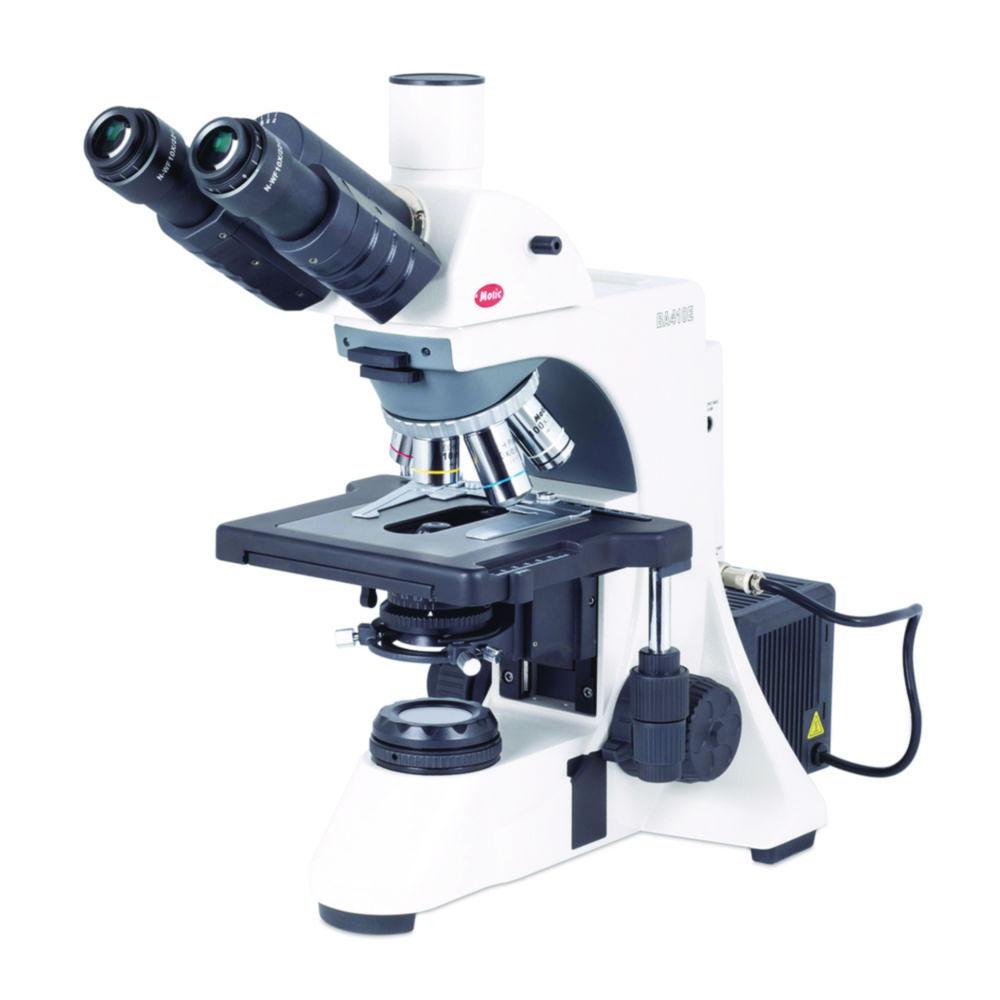

Motic Laboratory Microscope BA410E Trinocular, Reversed Sextuple Revolving Nosepiece, 50W, N-WF 10X/22mm
Product overview
The Motic Laboratory Microscope BA410E Trinocular, Reversed Sextuple Revolving Nosepiece, 50W, N-WF 10X/22mm is engineered for high-performance laboratory applications. Featuring a trinocular head and a reversed sextuple revolving nosepiece, this microscope allows efficient objective changes and flexible imaging options. The 12V/50W halogen illumination provides bright, even lighting for clear and detailed sample observation.
Key Features:
- Brand: Motic
- Model: BA410E
- Configuration: Trinocular
- Nosepiece: Reversed sextuple revolving nosepiece
- Illumination: Halogen 12V/50W
- Eyepieces: N-WF 10X/22mm
- Application: Suitable for routine and advanced laboratory microscopy
Scope of supply: Microscope, Halogen illumination 12V/50W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse.
This laboratory microscope delivers reliable optical performance and versatility for research, clinical, and educational environments.
Product Specifications
- HS Code #90118000
- CondenserAbbe N.A. 0,90/0,13
- Depth550 mm
- Depth stage170 mm
- Dimensions (WxDxH)242 x 550 x 435 mm
- Height435 mm
- Inclination angle tube30°
- Interpupillary distance50 ... 75 mm
- Light typeHalogen
- Magnification eyepieces10x/22 mm
- Magnification objectives4x, 10x, 40x, 100x
- Max. interpupillary distance75 mm
- Max. voltage240 V
- Min. interpupillary distance50 mm
- Min. voltage100 V
- Plug typeEU
- Power supply100 ... 240 V
- Revolving nosepiece6-fold
- Stage (WxD)180 x 170 mm
- TubeTrinocular
- TypeBA410E
- Type of auxiliary energyMains connection
- Type of illuminationTransmitted light
- Weight14.2 kg
- Width242 mm
- Width stage180 mm
