Representative Image

NEXOPART Air Jet Sieve Machine e200 LS eControl Ultimate, with HMI 3.0 Screen, 90–264V, 50/60Hz, 1500–5000 Pa

Brand:NEXOPART

Specifications

Depth
386 mm
Dimensions (WxDxH)
370 x 386 x 535 mm
Power supply frequency
50/60 Hz
Height
535 mm
IP code
IP 54
Max. feed quantity
30 g
Max. voltage
264 V
Min. voltage
90 V
Power supply
90 ... 264 V, 50/60 Hz
Type
e200 LS eControl SECURITY

$54,026.39

Inc. GST

Available soon

Product description

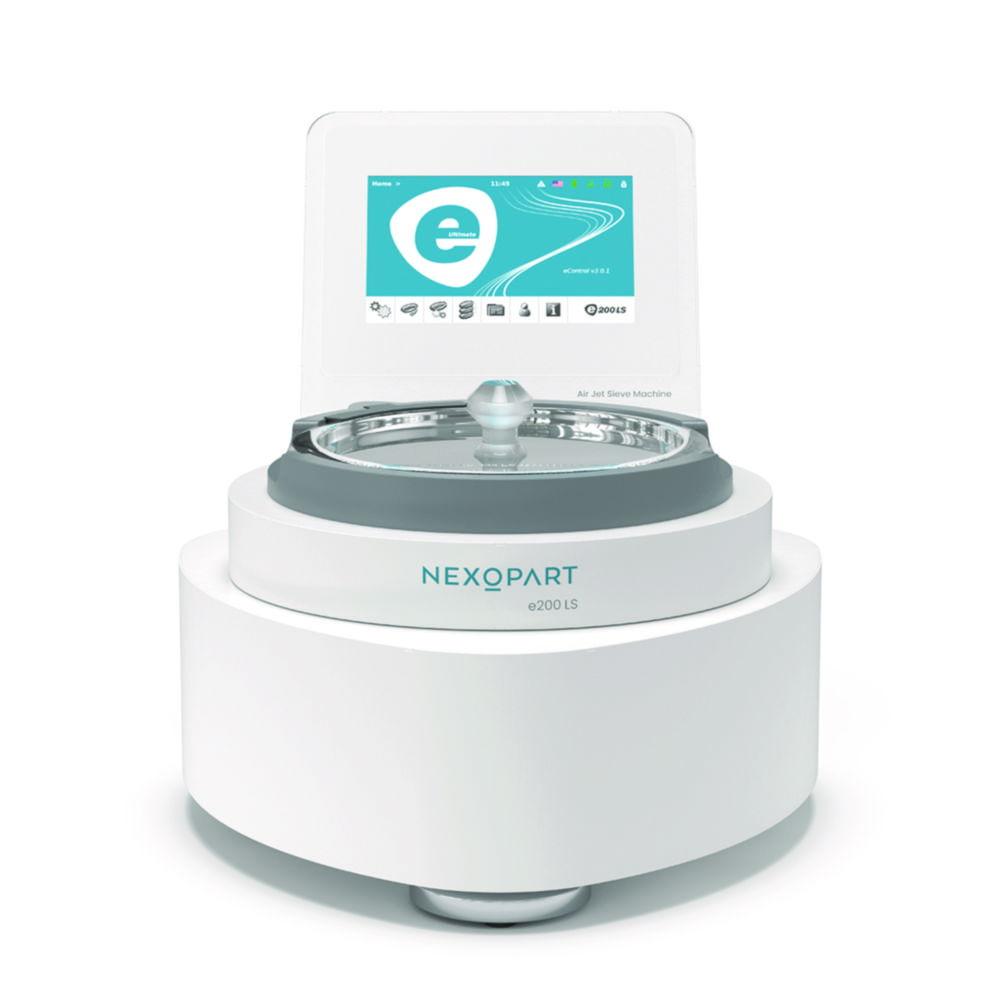

The NEXOPART Air Jet Sieve Machine e200 LS eControl Ultimate is a high-performance solution for precise particle size analysis. Featuring an advanced HMI 3.0 touch screen interface, it provides intuitive operation and customizable settings. Operating on 90–264V at 50/60Hz with a negative pressure range of 1500–5000 Pa, this machine delivers accurate and efficient dry sieving results, making it ideal for laboratory quality control and research applications.

Key Features:

  • Brand: NEXOPART
  • Model: e200 LS eControl Ultimate
  • Display: HMI 3.0 touch screen for advanced control
  • Voltage: 90–264V; 50/60Hz
  • Negative Pressure Range: 1500–5000 Pa
  • Automatic Recognition: Automatic sieve detection (RFID)
  • Pressure Control: Automatic underpressure control
  • Ease Of Use: Fast, simple evaluation of results in tabular form
  • Connectivity: Balance communication via RS-232 interface
  • Sieve Management: Central parameter management of all sieves
  • Automation: Automatic saving and printing
  • Sieve Data Management: Sieve set management (SOP)
  • Automatic Operation: Automatic backup
  • Requirements For Software Validation: ISPE GAMP 5, FDA 21 Part 11, compliant with EC GMP Annex 11
  • Dimensions: Ideal for precise dry particle size analysis in laboratory settings

Scope of Supply

  • Air jet sieve machine
  • Software version ULTIMATE
  • Sieve adapter
  • Slotted nozzle
  • Acrylic glass lid
  • Suction silencer
  • Hammer and brush
  • Connection piece
  • Power connection cable
  • Operating manual

Note: Please order vacuum cleaner separately.

The NEXOPART e200 LS eControl Ultimate Air Jet Sieve Machine combines precision, reliability, and advanced usability—making it an essential tool for laboratories requiring accurate and efficient particle size analysis.

Accessories

Adapters for test sieves Ø 200 mm

ProductForUNSPSCMfr#Part#AvailabilityPrice
Retsch411050002100513734.701 806$1,562.80
Japan Industrial Standard (JIS)411050002100513664.701 807$1,768.34
Alpine A200 LS/Haver & Boecker/Nexopart411050002100513426.325 746$1,539.76

Adapters for test sieves Ø 203 mm

ProductForUNSPSCMfr#Part#AvailabilityPrice
W.S.Tyler411050002100513974.701 810$1,539.76
Retsch411050002100513804.701 809$1,724.04
Haver & Boecker/Nexopart411050002100513594.701 808$1,539.76
