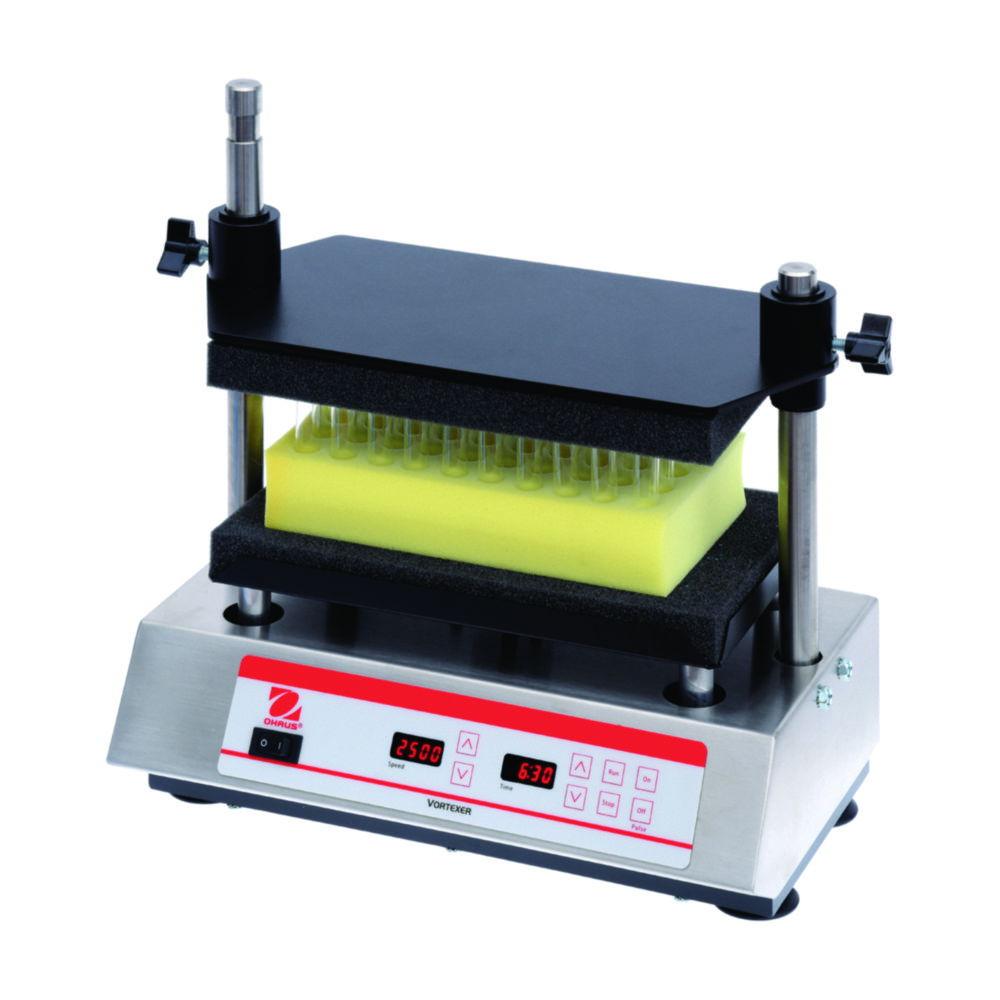

Ohaus Digital Multi-Tube Vortex Mixer VXM-TDG (EU Plug)

Brand:OHAUS

Specifications

Depth
241 mm
Dimensions (WxDxH)
384 x 241 x 406 mm
Power supply frequency
50/60 Hz
Height
406 mm
Max. loading capacity
4.5 kg
Max. permitted ambient temp.
40 °C
Max. relative humidity rate
85 %
Max. speed
2500 1/min
Max. voltage
230 V
Min. permitted ambient temperature
4 °C

$8,733.60

Inc. GST

Available soon

Product description

The Ohaus Digital Multi-Tube Vortex Mixer VXM-TDG is engineered for precise and efficient sample mixing in laboratory applications. Designed to accommodate up to 4.5 kg of samples, this compact benchtop unit offers both continuous and timed operation modes, making it ideal for processes such as sample homogenization, genotyping, and sample preparation in high-throughput environments.

Key Features:

  • Brand: Ohaus
  • Accuracy: Ideal for applications requiring accuracy and repeatability
  • Model: Pulsing mode on digital model to enhance vortexing action
  • Timer: 1 second to 9999 minutes
  • Speed range: 500 to 2500 rpm
  • Orbit diameter: 3.6 mm
  • Capacity: Up to 4.5 kg
  • Optical Control: Digital control with LED displays
  • Power supply: 230V, 50/60Hz (EU Plug)
  • Dimensions: 384 mm (W) x 241 mm (D) x 406 mm (H)
  • Weight: 20.3 kg
  • Tray size: 18.4 cm x 31.1 cm
  • Safety Certification: CE, TUV

Scope of Supply:

  • Vortex mixer including tray pad set for support and one 12 mm test tube foam rack

This vortex mixer is an essential tool for laboratories requiring efficient and consistent sample processing solutions.

Downloads

Accessories

Accessories for Multi-Tube Vortex Mixers

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Replacement tray pad set (top and bottom)41103816304002454.659 929$132.89

Foam rack for Multi-Tube Vortex Mixers

ProductFor type of vesselsColourMfr#Part#AvailabilityPrice
TubesGrey304002384.659 922$95.68
TubesBlue304002394.659 923$93.91
TubesYellow304002404.659 924$93.91
TubesGreen304002414.659 925$120.49
TubesWhite304002434.659 927$120.49
TubesRed304002424.659 926$120.49

Frequently asked questions

It is engineered for precise and efficient sample mixing in laboratory applications. Designed to accommodate up to 4.5 kg of samples, this compact benchtop unit offers both continuous and timed operation modes, making it ideal for processes such as sample homogenization, genotyping, and sample preparation in high-throughput environments.
