Representative Image

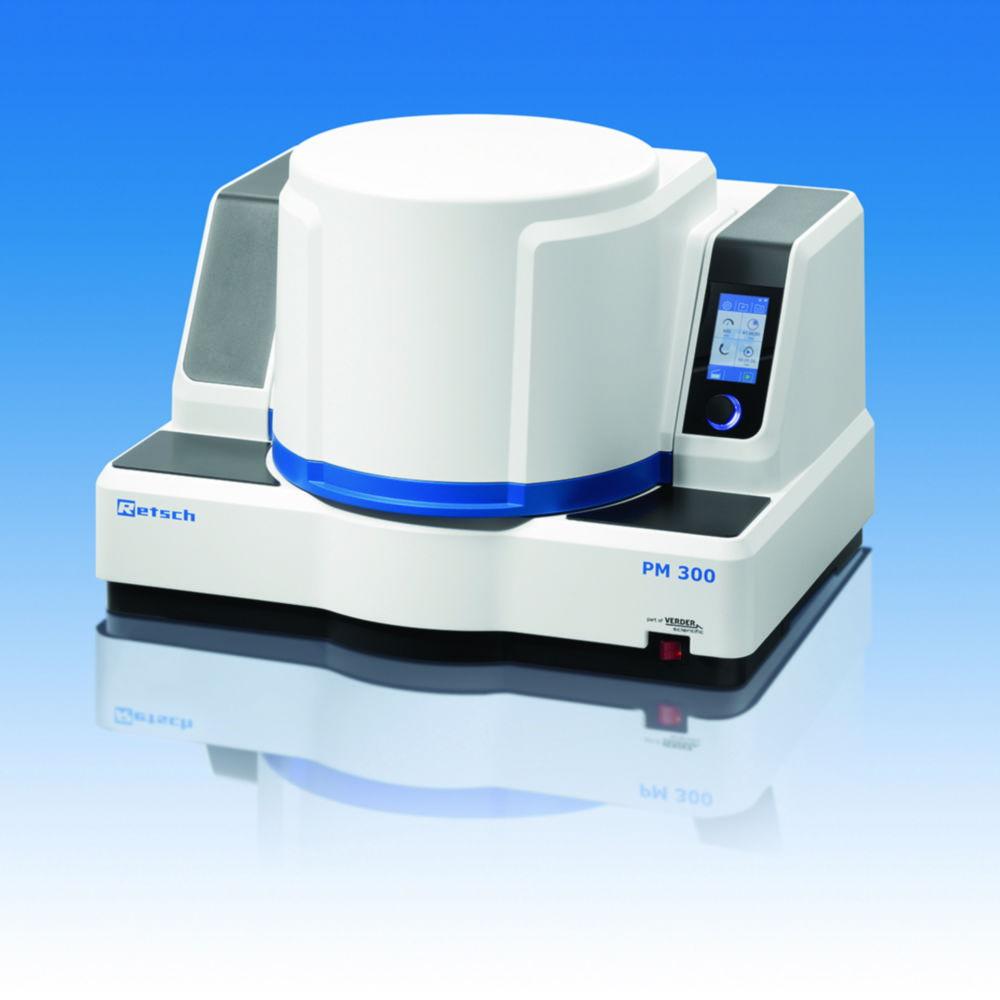

Retsch Planetary Ball Mill PM 300 220-230 V, 50/60 Hz

Brand:Retsch

Specifications

Depth: 580 mm
Dimensions (WxDxH): 745 x 580 x 525 mm
Feed particle size: 10 mm
Feed quantity: 440 ml
Power supply frequency: 50/60 Hz
Height: 525 mm
IP code: IP 20
Max. feed particle size: 10 mm
Max. feed quantity: 440 ml
Max. speed: 800 1/min

$56,750.92

Inc. GST

Available soon

Product description

The Retsch Planetary Ball Mill PM 300 is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.

Key Features:

Brand: Retsch
Voltage/Frequency: 220–230 V, 50/60 Hz
Interface: Touch display with USB and RASPI connectivity
Grinding Range: Loss-free size reduction down to the submicron range
Grinding Modes: Suitable for dry, wet, and ultrafine grinding as well as mechanochemistry
Sample Capacity: Two grinding stations, stackable jars allow processing of up to 4 samples simultaneously
Clamping System: Lockable sun wheel for safe and easy clamping of jars
Safety: Safety Slider prevents operation without securely clamped jars
Stability: Excellent stability with FFCS (Free-Floating Compensation System) technology
Programmability: Programmable start time and adjustable timer from 1 s to 99 h 59 min 59 s

Note: Please order grinding jars and grinding balls separately.

Scope of Supply:
Planetary Ball Mill PM 300 unit only.

The PM 300 is the ideal choice for laboratories requiring high-performance, high-precision sample preparation with advanced safety and automation features.

Accessories

Grinding jars EasyFit PM 300

Product	Nominal capacity	Material	Mfr#	Part#	Price
Retsch Grinding Bowls EasyFit PM 300 Zirconium Oxide, 250 ml	250 ml	Zirconia	014620500	4.691 612	$13,140.88
Retsch Grinding Bowls EasyFit PM 300 Sintered Corundum, 500 ml	500 ml	Sintered corundum	014620503	4.691 608	$8,916.81
Retsch Grinding Bowls EasyFit PM 300 Sintered Corundum, 50 ml	50 ml	Sintered corundum	014620507	4.691 605	$4,018.27
Retsch Grinding Bowls EasyFit PM 300 Agate, 500 ml	500 ml	Agate	014620506	4.691 604	$16,894.26
Retsch Grinding Bowl EasyFit PM 300 Zirconium Oxide, 500 ml	500 ml	Zirconia	014620504	4.691 613	$15,017.57
Retsch Grinding Bowls EasyFit PM 300 Zirconium Oxide, 80 ml	80 ml	Zirconia	014620510	4.691 610	$9,972.32
Retsch Grinding Bowls EasyFit PM 300 Agate, 250ml	250 ml	Agate	014620502	4.691 603	$7,245.93
Retsch Grinding Bowls EasyFit PM 300 Agate, 125ml	125 ml	Agate	014620515	4.691 602	$5,603.57
Retsch Grinding Bowls EasyFit PM 300 Agate, 80ml	80 ml	Agate	014620511	4.691 601	$4,929.10
Retsch Grinding Bowls EasyFit PM 300 Tungsten Carbide, 250ml	250 ml	Tungsten carbide	014620497	4.691 598	$17,128.59
Retsch Grinding Bowls EasyFit PM 300 Tungsten Carbide, 125ml	125 ml	Tungsten carbide	014620527	4.691 597	$12,376.76
Retsch Grinding Bowls EasyFit PM 300 Agate, 50ml	50 ml	Agate	014620509	4.691 600	$4,605.12
Retsch Grinding Bowls EasyFit PM 300 Tungsten Carbide, 80ml	80 ml	Tungsten carbide	014620495	4.691 596	$12,083.34
Retsch Grinding Bowls EasyFit PM 300 Tungsten Carbide, 50ml	50 ml	Tungsten carbide	014620494	4.691 595	$9,619.80
Retsch Grinding Bowls EasyFit PM 300 Zirconium Oxide, 125ml	125 ml	Zirconia	014620513	4.691 611	$11,027.83
Retsch Grinding Bowls EasyFit PM 300 Stainless Steel, 250ml	250 ml	Steel, stainless, hardened	014620519	4.691 593	$4,751.83
Retsch Grinding Bowl EasyFit PM 300 Stainless Steel, 125ml	125 ml	Steel, stainless, hardened	014620518	4.691 592	$4,488.97
Retsch Grinding Bowls EasyFit PM 300 Sintered Corundum, 250ml	250 ml	Sintered corundum	014620499	4.691 607	$6,188.38
Retsch Grinding Bowls EasyFit PM 300 Stainless Steel, 500ml	500 ml	Steel, stainless, hardened	014620520	4.691 594	$7,156.27
Retsch Grinding Bowl EasyFit PM 300 Stainless Steel, 80ml	80 ml	Steel, stainless, hardened	014620517	4.691 591	$4,195.55
Retsch Grinding Bowls EasyFit PM 300 Sintered Corundum, 125ml	125 ml	Sintered corundum	014620512	4.691 606	$5,367.20
Retsch Grinding Bowls EasyFit PM 300 Tungsten Carbide, 500ml	500 ml	Tungsten carbide	014620498	4.691 599	$32,056.50
Retsch Grinding Bowl EasyFit PM 300 Stainless Steel, 50ml	50 ml	Steel, stainless, hardened	014620516	4.691 590	$3,168.56
Retsch Grinding Bowls EasyFit PM 300 Zirconium Oxide, 50 ml	50 ml	Zirconia	014620508	4.691 609	$8,358.49
Retsch Grinding Beaker for MM 301, 12 ml Antirust Steel	12 ml	Steel, stainless, hardened	014620239	6.238 959	$1,695.33
Retsch Grinding Beaker for MM 301, 25 ml Antirust Steel	25 ml	Steel, stainless, hardened	014620240	6.238 960	$1,872.61

Accessories for planetary ball mill PM 300

Product	Description	For	Mfr#	Part#	Price
Retsch Spare Valve Set M8x1 for Aeration Lids	Spare valve set for aeration lids M8x1	PM 300	228640001	4.691 638	$385.12
Retsch Opening Aid for Planetary Ball Mill	Opening aid for planetary ball mill	PM 300	034860062	4.691 640	$389.19
Retsch Opening Aid for Safety Closing Device	Opening aid for safety closure device	PM 300	024860055	4.691 639	$187.46
Retsch IQ/OQ Documentation for PM 300	IQ/OQ Documentation for PM 300	PM 300	992000041	4.691 641	$1,173.69
Retsch Adapter for 12 ml and 25 ml Grinding Bowls	Adapter for the use of grinding jars 12 ml and 25 ml	PM 300	030250182	4.691 637	$1,599.56
Retsch Adapter for Stacking, 50 ml and 80 ml Grinding Bowls	Adapter for stacking grinding jars 50 ... 80 ml	PM 300	030250178	4.691 636	$957.70
Retsch Grinding Bowl Clamping Lock for PM 300	Clamping unit for grinding jars	PM 300	226610005	4.691 635	$1,679.03

Frequently asked questions

It is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.
