Representative Image

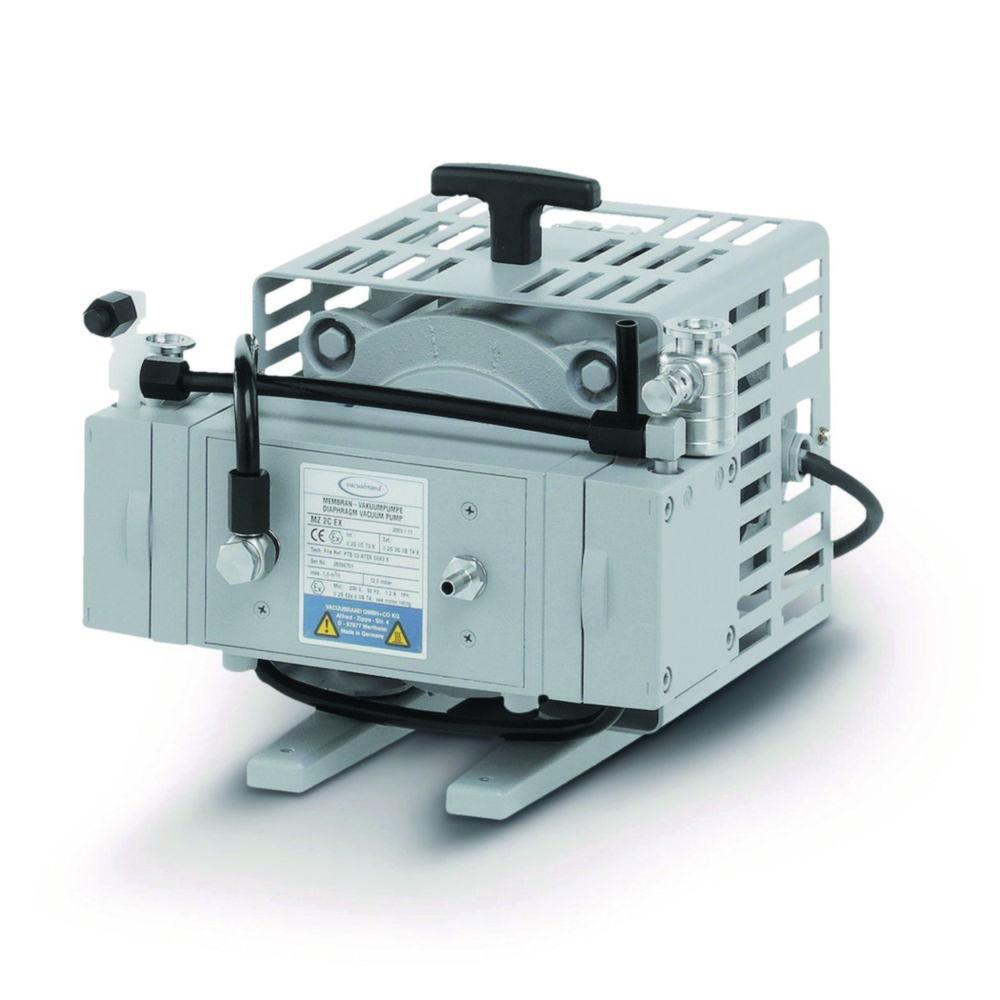

Vacuubrand Chemistry Diaphragm Pump MZ 2C EX, Two-Stage, 230 V, 50 Hz

Specifications

HS Code #
84141089
Connection pressure side
KF DN 16
Connection suction side
KF DN 16
Depth
337 mm
Dimensions (WxDxH)
287 x 337 x 251 mm
Flow rate
1.9 m³/h
Height
251 mm
No. of stages
2
Plug type
stranded wire
Type
MZ 2C EX
Ultimate vacuum
12 mbar

$14,007.51

Inc. GST

Available soon

Product description

The Vacuubrand Chemistry Diaphragm Pump MZ 2C EX is a two-stage, explosion-proof vacuum pump designed specifically for applications involving aggressive or flammable solvents. Operating at 230 V and 50 Hz, this diaphragm pump ensures reliable, oil-free performance and is compliant with ATEX standards, making it suitable for use in hazardous laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: Chemistry Diaphragm Pump MZ 2C EX
  • Technology: Two-stage oil-free diaphragm pump
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Explosion Protection: ATEX-compliant for use with flammable solvents
  • Applications: Solvent evaporation, rotary evaporation, vacuum distillation, filtration

This pump combines high chemical resistance with outstanding vacuum performance, making it an excellent choice for laboratories requiring safety and reliability with volatile chemicals.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$143.26
PVC34.9 mm206860634.714 084$377.68
PVC38.1 mm206860654.714 085$439.07
PVC15.9 mm206860614.714 082$167.44
PVC22.3 mm206860624.714 083$221.40

More items to explore

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO

ProductPlug typeTypeMfr#Part#AvailabilityPrice
stranded wireMD 4C EX VARIO206969364.670 368$26,658.73

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO +AK+EK

ProductPlug typeTypeMfr#Part#AvailabilityPrice
stranded wireMD 4C EX VARIO +AK+EK206969374.670 369$35,488.54

Frequently asked questions

It is a two-stage, explosion-proof vacuum pump designed specifically for applications involving aggressive or flammable solvents. Operating at 230 V and 50 Hz, this diaphragm pump ensures reliable, oil-free performance and is compliant with ATEX standards, making it suitable for use in hazardous laboratory environments.
