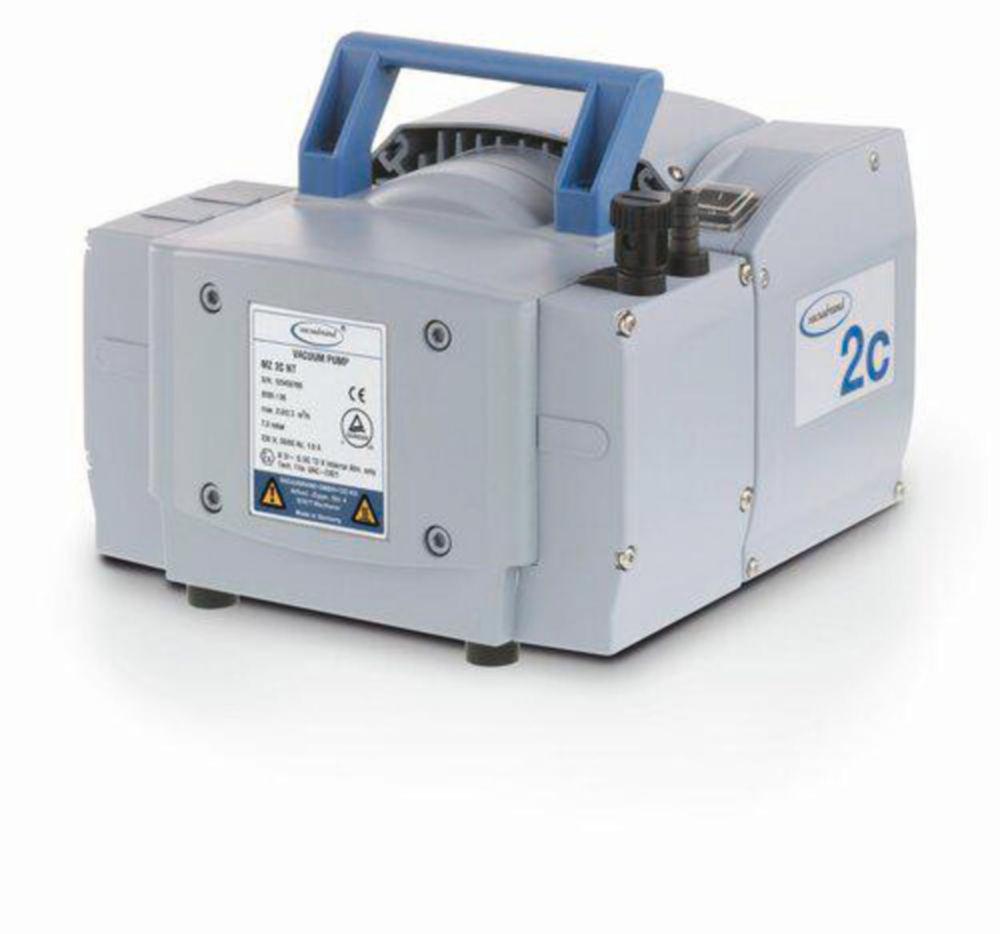

Vacuubrand Chemistry Diaphragm Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz, CH Plug

The Vacuubrand MZ 2C NT is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a Swiss (CH) plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: MZ 2C NT
• Voltage/Frequency: 230 V / 50 Hz
• Maximum Pumping Speed: 2.0 m³/h
• Ultimate Vacuum: 7 mbar (5 torr)
• Ultimate Vacuum with Gas Ballast: 12 mbar (9 torr)
• Number of Stages: 2
• Number of Heads: 2
• Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.18 kW
• Rated Motor Speed: 1500 min⁻¹ (50 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 243 x 243 x 198 mm
• Weight: 11.1 kg
• Noise Level: 45 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified
• ATEX Conformity: II 3G IIC T3 X Internal Atm. only

This pump is ideal for applications such as vacuum filtration, rotary evaporation, and degassing in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Diaphragm Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz, CH Plug used for?

It is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a Swiss (CH) plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.

2. Is this product suitable for efficient and reliable laboratory applications involving corrosive gases and vapors?

Yes. It is designed for efficient and reliable laboratory applications involving corrosive gases and vapors, and offers a voltage/frequency of 230 V / 50 Hz and a maximum pumping speed of 2.0 m³/h to support this kind of work.

3. What voltage/frequency and maximum pumping speed does this product have?

It has a voltage/frequency of 230 V / 50 Hz, a maximum pumping speed of 2.0 m³/h and an ultimate vacuum of 7 mbar (5 torr).

4. What inlet/outlet connection and protection class does this product offer?

It offers hose nozzle DN 8–10 mm, IP 40 (IEC 60529), -10°C to 60°C and NRTL certified.
