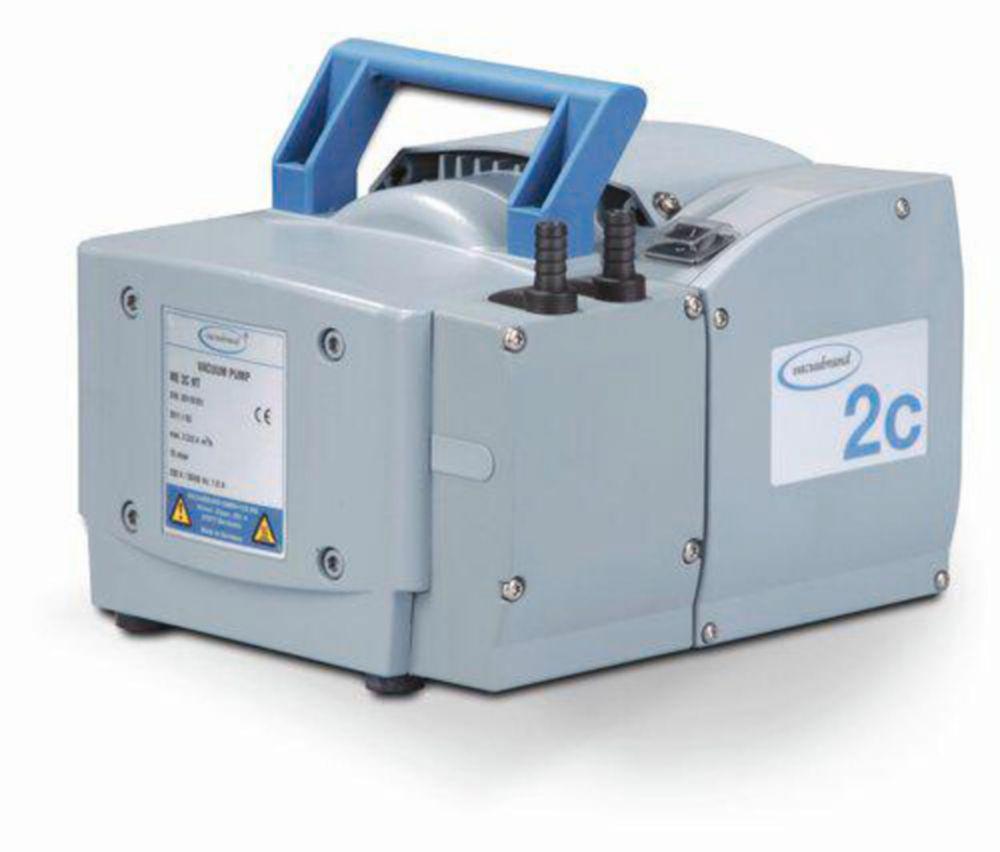

Vacuubrand Chemistry Membrane Pump ME 2C NT, 230 V, 50/60 Hz, with CEE Plug

The Vacuubrand ME 2C NT is a robust, oil-free diaphragm vacuum pump designed for chemical laboratories requiring reliable and contamination-free vacuum generation. Operating at 230 V with a CEE plug, this pump offers a maximum pumping speed of 2.1 m³/h and achieves an ultimate vacuum of 70 mbar (52 torr). Its chemically resistant construction ensures durability when handling aggressive solvents and vapors.

Key Features:

• Brand: Vacuubrand
• Model: ME 2C NT
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 2.1 m³/h (50 Hz)
• Ultimate Vacuum: 70 mbar (52 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.18 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 243 x 211 x 198 mm
• Weight: 10.2 kg
• Noise Level: 45 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration, degassing, and evaporation of volatile solvents in chemical laboratories. Its oil-free design ensures maintenance-free operation and eliminates the risk of oil contamination.
