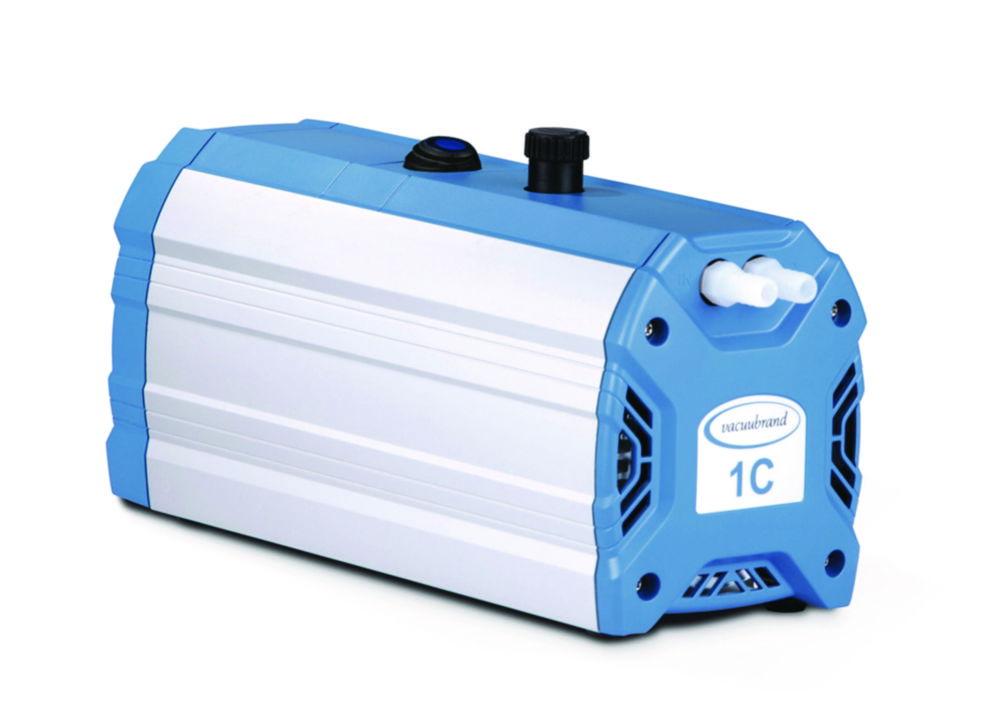

Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug

The Vacuubrand MZ 1C is a compact, oil-free, two-stage diaphragm pump designed for continuous pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a UK plug, it offers a maximum pumping speed of 0.75 m³/h at 50 Hz and achieves an ultimate vacuum of 12 mbar (9 torr), or 20 mbar (15 torr) with gas ballast. Its chemically resistant construction ensures durability and longevity in demanding applications.

Key Features:

• Brand: Vacuubrand
• Model: MZ 1C
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 0.75 m³/h (50 Hz), 0.5 cfm (60 Hz)
• Ultimate Vacuum: 12 mbar (9 torr), 20 mbar (15 torr) with gas ballast
• Number of Stages: 2
• Number of Heads: 2
• Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.06 kW
• Rated Motor Speed: 1500 rpm (50 Hz), 1800 rpm (60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 312 x 121 x 170 mm
• Weight: 6.7 kg
• Noise Level: 45 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

This pump is ideal for applications such as rotary evaporation, vacuum filtration, and other laboratory processes requiring reliable and efficient vacuum performance. Its compact design and low noise level make it suitable for benchtop use in various laboratory environments.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug used for?

It is a compact, oil-free, two-stage diaphragm pump designed for continuous pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a UK plug, it offers a maximum pumping speed of 0.75 m³/h at 50 Hz and achieves an ultimate vacuum of 12 mbar (9 torr), or 20 mbar (15 torr) with gas ballast. Its chemically resistant construction ensures durability and longevity in demanding applications.

2. Is the Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug suitable for continuous pumping of corrosive gases and vapors in laboratory settings?

Yes. It is designed for continuous pumping of corrosive gases and vapors in laboratory settings, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 0.75 m³/h (50 Hz), 0.5 cfm (60 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does the Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.75 m³/h (50 Hz), 0.5 cfm (60 Hz) and an ultimate vacuum of 12 mbar (9 torr), 20 mbar (15 torr) with gas ballast, and is supplied under manufacturer part number 20724102.

4. What inlet/outlet connections and protection class does the Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug offer?

It offers hose nozzle DN 8–10 mm, IP 40 (IEC 60529), -10°C to 60°C and NRTL certified.

5. How does the Vacuubrand Chemistry Membrane Pump MZ 1C, 230 V, 50/60 Hz, with UK Plug compare with the KNF LIQUIPORT Membrane Liquid Pump NF 100 FT.18 RC, Protection IP 65 Flow Rate 0,2-1,3 (L/Min), Chemical Resistant from KNF?

For continuous pumping of corrosive gases and vapors in laboratory settings, the VACUUBRAND model is the better choice, offering a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.75 m³/h (50 Hz), 0.5 cfm (60 Hz) and an ultimate vacuum of 12 mbar (9 torr), 20 mbar (15 torr) with gas ballast. The KNF model offers a flow rate of 0.2 - 1.3 (L/Min) as an alternative, while the VACUUBRAND model's hose nozzle DN 8–10 mm and IP 40 (IEC 60529) help make it a strong fit for continuous pumping of corrosive gases and vapors in laboratory settings.
