Representative Image

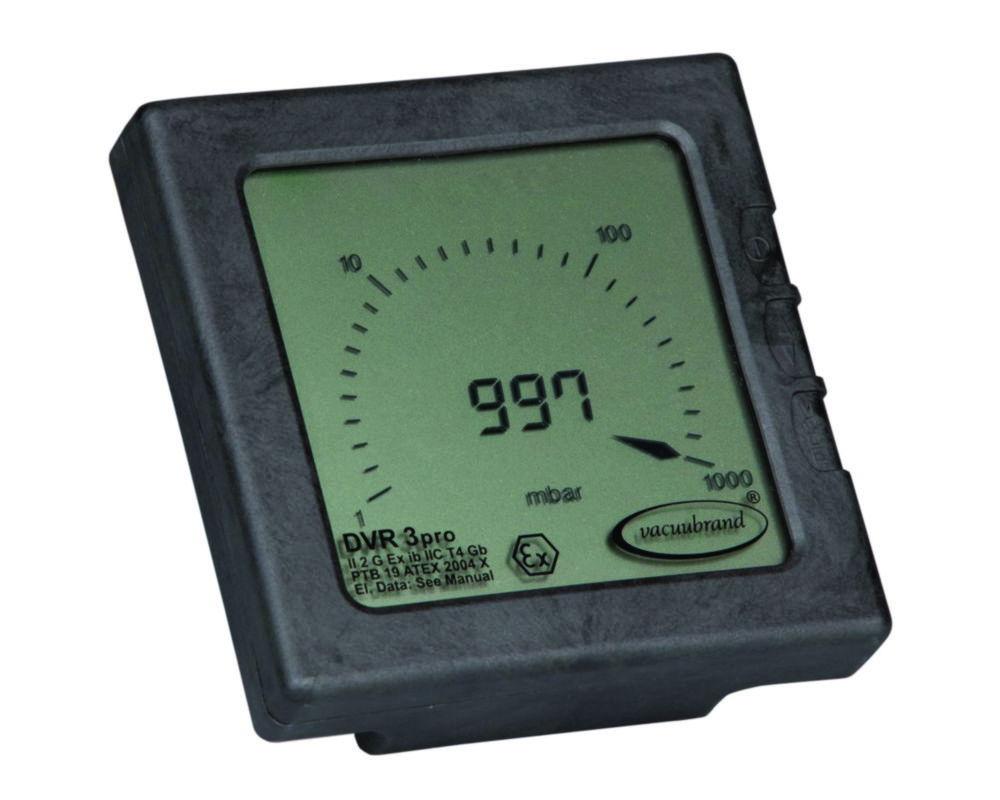

Vacuubrand DVR 3pro Vacuum Gauge PTB 19 ATEX 2004 X: II 2G Ex ib IIC T4 Gb

Specifications

Battery/ rechargeable battery
9 V, AlMn
Depth
117 mm
Dimensions (WxDxH)
117 x 117 x 91 mm
Electrochemical system
AlMn
Height
91 mm
IP code
IP 40
Max. measured value
1060 mbar
Max. permitted ambient temp.
40 °C
Max. voltage battery/ rechargeable battery
9 V
Measured range
1 ... 1,060 mbar

$4,000.21

Inc. GST

Available soon

Product description

The Vacuubrand DVR 3pro Vacuum Gauge is a fully electronic, versatile instrument designed for precise vacuum measurement in hazardous environments. Certified under PTB 19 ATEX 2004 X: II 2G Ex ib IIC T4 Gb, it is approved for use in areas with potentially explosive atmospheres (ATEX category 2). The gauge features a capacitive, gas type-independent absolute pressure measurement principle, ensuring accurate readings from 1 mbar to 1,060 mbar.

Key Features:

  • Brand: VACUUBRAND
  • Certification: ATEX category 2 (II 2G Ex ib IIC T4 Gb)
  • Measurement Range: 1 mbar to 1,060 mbar
  • Power Supply: 9V Alkaline-Manganese Dioxide-Zinc battery (commonly available)
  • Display: Large analogue and digital pressure display
  • Sensor: Integrated alumina ceramic sensor with excellent chemical resistance
  • Electromagnetic Immunity: High resistance to electromagnetic interference
  • Duty Cycle: Adjustable for battery-friendly operation
  • Dimensions: 117 x 117 x 91 mm
  • Weight: 400 g

Scope of Supply:

  • Vacuum measuring instrument
  • Integrated vacuum sensor
  • Connecting parts
  • Hex key
  • Battery
  • Manual

This vacuum gauge is ideal for laboratories and industrial applications requiring reliable and precise vacuum measurements in explosive atmospheres.

Frequently asked questions

It is a fully electronic, versatile instrument designed for precise vacuum measurement in hazardous environments. Certified under PTB 19 ATEX 2004 X: II 2G Ex ib IIC T4 Gb, it is approved for use in areas with potentially explosive atmospheres (ATEX category 2). The gauge features a capacitive, gas type-independent absolute pressure measurement principle, ensuring accurate readings from 1 mbar to 1,060 mbar.
