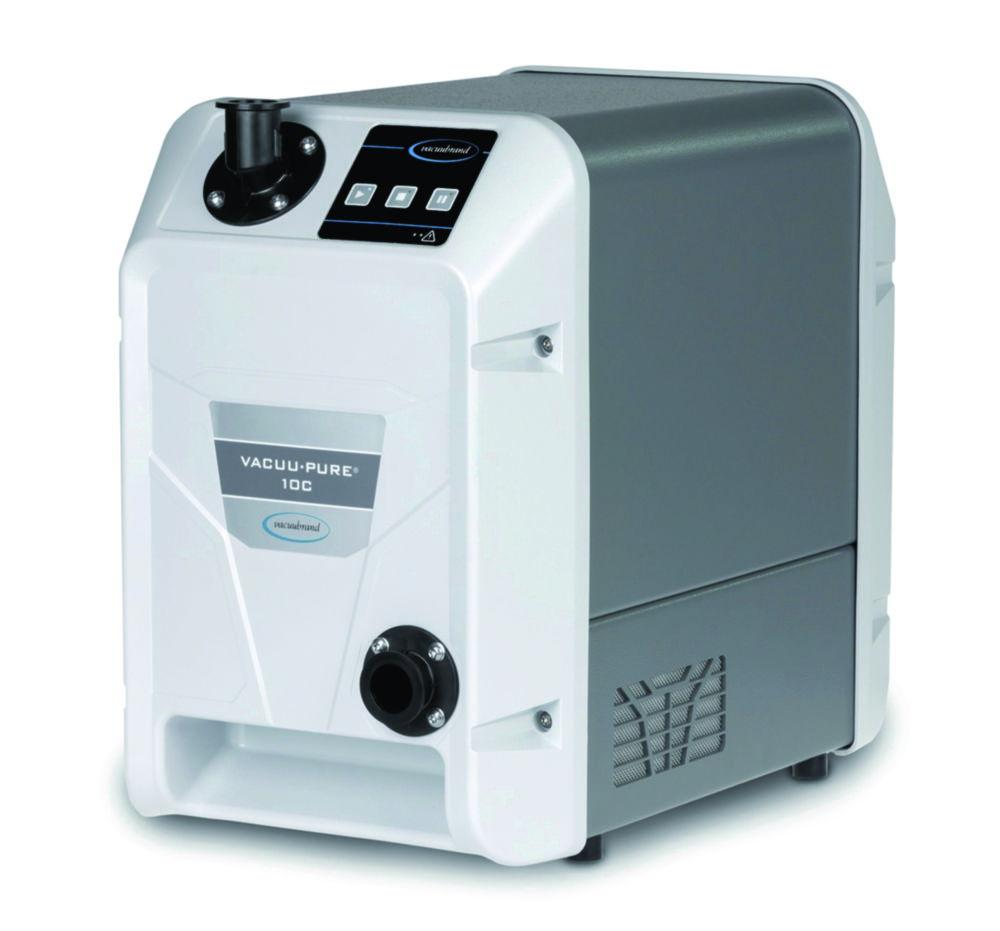

Representative image only
Vacuubrand Screw Pump VACUU·PURE 10C Chemically Resistant, 100–230 V, 50/60 Hz, CEE Power Cord
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.679 583Manufacturer #: 20751000
Estimated shipping time:Contact us via live chat or via contact us page
See the available (2) variant productsProduct overview
The Vacuubrand Screw Pump VACUU·PURE 10C is a high-performance, oil-free vacuum pump designed for chemically aggressive applications. Engineered with cantilevered spindles and a magnetic gear, it ensures a completely oil-free and abrasion-free operation. The thick-walled PEEK encapsulation of the spindles and stator provides exceptional chemical resistance, making it ideal for processes involving aggressive gases and vapors.
Key Features:
- Brand: Vacuubrand
- Power Supply: 230 V, 50/60 Hz
- Plug Type: CEE (EU)
- Ultimate Vacuum: 0.005 mbar
- Pumping Speed: 9 m³/h
- Noise Level: 55 dB(A)
- Dimensions (W x D x H): 269 x 507 x 413 mm
- Weight: 21.1 kg
- IP Code: IP 20
- Materials: PEEK encapsulated spindles and stator for high chemical resistance
- Maintenance: No wear parts, reducing maintenance needs
- Applications: Suitable for clean processes and the production of pure products
Product Specifications
- HS Code #84141089
- Connection pressure sideKF DN 25
- Connection suction sideKF DN 25
- Depth507 mm
- Dimensions (WxDxH)269 x 507 x 413 mm
- Flow rate150
- Power supply frequency50/60 Hz
- Height413 mm
- IP codeIP 20
- Max. voltage230 V
- Noise level55 db(A)
- Plug typeEU
- Power supply230 V, 50/60 Hz
- TypeVACUU·PURE® 10C
- Type of auxiliary energyMains connection
- Ultimate vacuum0.005 mbar
- Weight21.1 kg
- Width269 mm
Vacuubrand Screw Pump VACUU·PURE 10C Chemically Resistant, 100–230 V, 50/60 Hz, CEE Power Cord
$27,503.38
Variant products
Products related to this item (2)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
20751001 | 4.679 584 | Vacuubrand Screw Pump VACUU·PURE 10C Chemically Resistant, 100–230 V, 50/60 Hz, CH Power Cord | CH | VACUU·PURE® 10C | $27,503.38 | |||
20751002 | 4.679 585 | Vacuubrand Screw Pump VACUU·PURE 10C Chemically Resistant, 100–230 V, 50/60 Hz, UK Power Cord | UK | VACUU·PURE® 10C | $27,503.38 |
