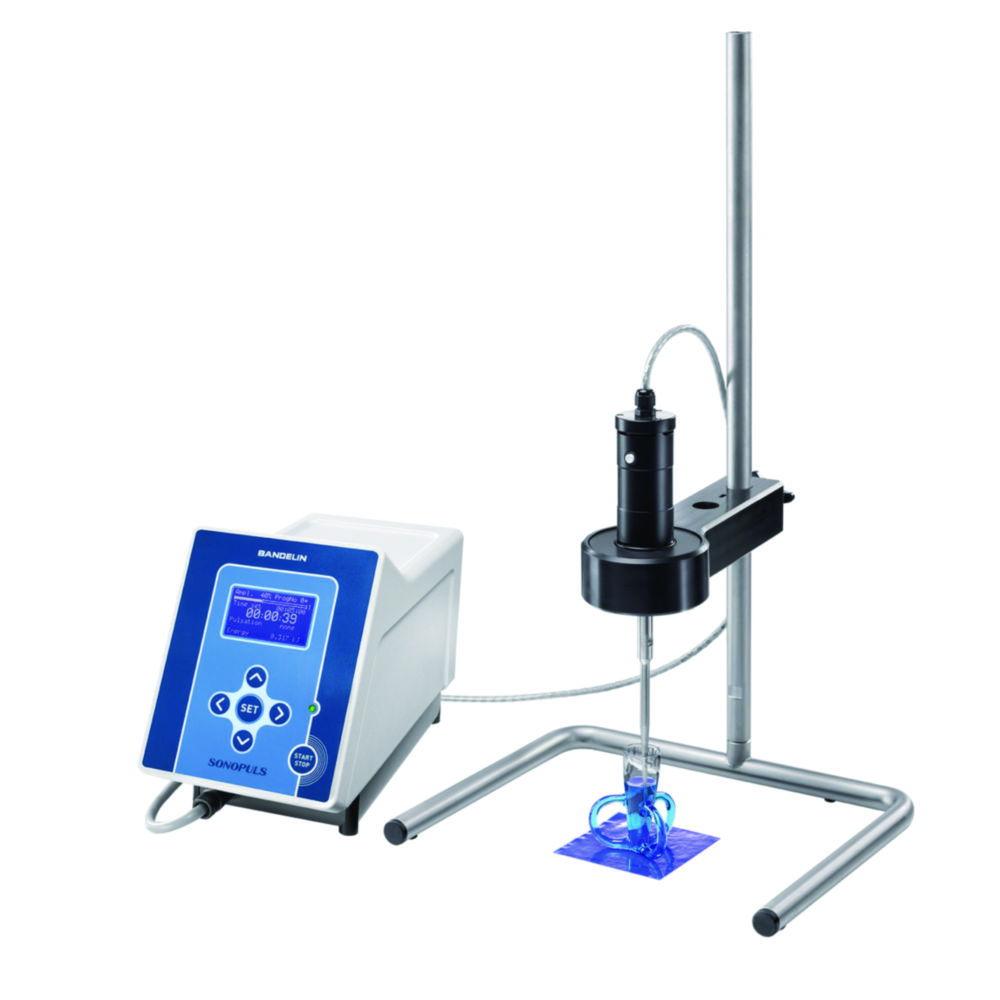

Bandelin Ultrasonic Homogenizer HD 4050 SONOPULS, Set: consisting of generator GM 4200, ultrasonic converter UW 50
Representative image only

Bandelin Ultrasonic Homogenizer HD 4050 SONOPULS, Set: consisting of generator GM 4200, ultrasonic converter UW 50

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.650 151Manufacturer #: 4050
Estimated shipping time:Contact us via live chat or via contact us page

$7,694.41

Product overview

Bandelin Ultrasonic Homogenizer HD 4050 SONOPULS is a powerful ultrasonic system designed for efficient homogenization, dispersing, and emulsifying tasks. This set includes the generator GM 4200 and the ultrasonic converter UW 50, providing exceptional performance and flexibility in various laboratory and industrial applications.

Key Features:

  • Brand: Bandelin
  • Model: HD 4050 SONOPULS
  • Generator: GM 4200 – offers precise control over ultrasonic intensity and duration
  • Ultrasonic Converter: UW 50 – converts electrical energy into mechanical energy for effective homogenization
  • High Efficiency: Ideal for homogenizing, emulsifying, and dispersing liquids, slurries, and powders
  • Applications: Widely used in chemical, pharmaceutical, food, and cosmetic industries
  • Adjustable Settings: Allows for precise adjustments to meet specific processing needs

This ultrasonic homogenizer set provides excellent reproducibility and uniform results, making it an essential tool for demanding homogenization applications. Its high-powered system allows for faster processing times, making it ideal for use in research, quality control, and production environments.

Product Specifications
  • HS Code #84798200
  • TypeSONOPULS HD 4050
  • Type of auxiliary energy230 V AC, 50/60 Hz (alternativ 115 V~, 50/60 Hz)
  • min. sample volume ml0.50
  • max. sample volume ml20
  • PulsationON cycles: 0.2 ...600 s OFF cycles: 0.3 ...600 s
  • max. amplitude µm125
  • min. amplitude control %10
  • max. amplitude control %100
  • Operating frequency kHz20
  • Dimension HF generator (width) mm150
  • Dimension HF generator (length) mm335
  • Dimension HF generator (height) mm220
  • Dimension ultrasonic transducer (Ø) mm45
  • Dimension ultrasonic transducer (length) mm175
  • min. Runtime / timer Hr: min: sec00:00:00
  • max. Runtime / timer Hr: min: sec09:59:59
  • Continuous operation+
  • Ultrasonic nominal power W50
